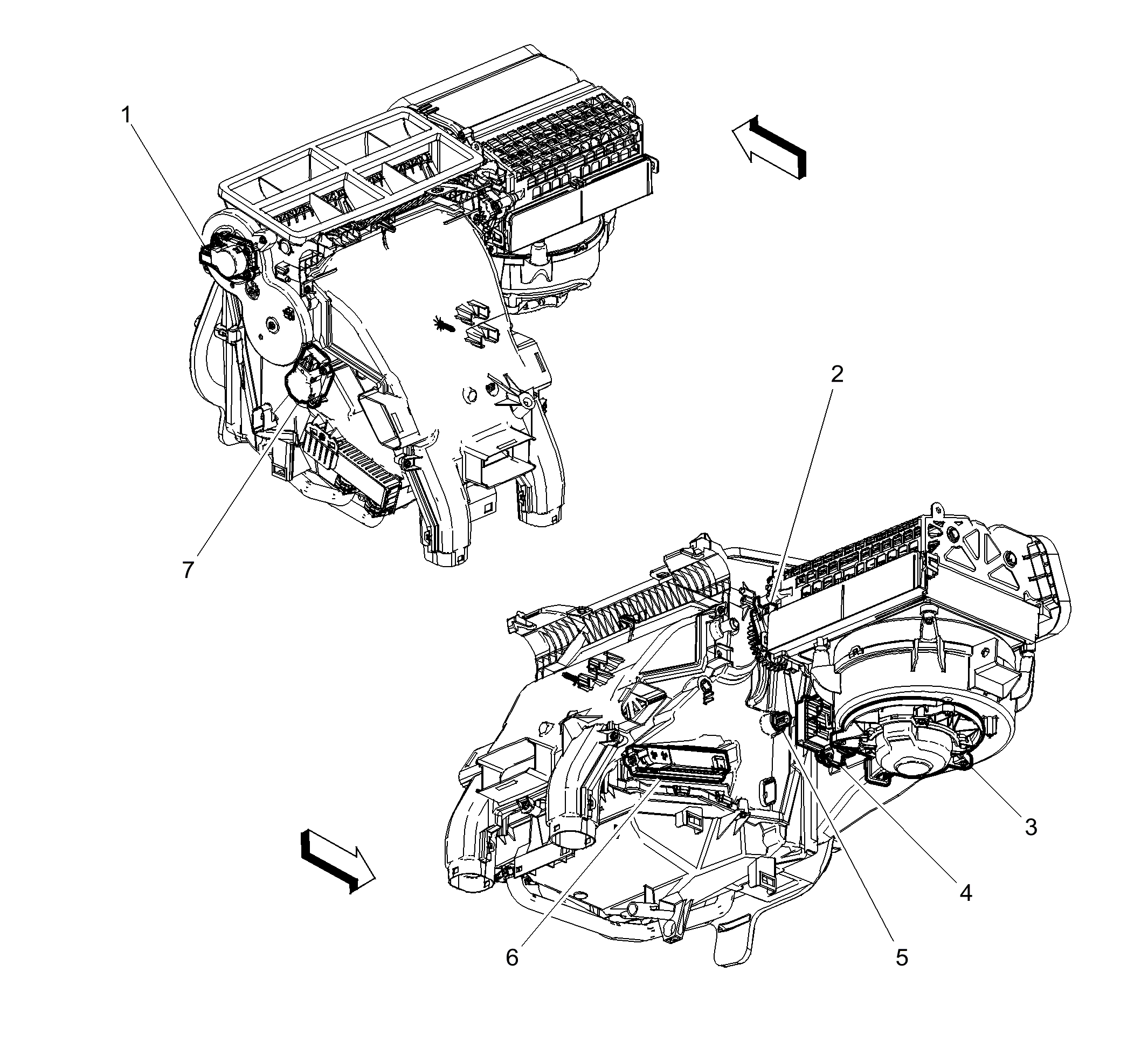

Interior HVAC
| Items |
|---|
| 1: M37 Mode Door Actuator M37 Mode Door Actuator |
| 2: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 3: M8 Blower Motor M8 Blower Motor |
| 4: K8 Blower Motor Control Module K8 Blower Motor Control Module X1K8 Blower Motor Control Module X2 |
| 5: B39 A/C Evaporator Temperature Sensor |
| 6: E40 Electrical Auxiliary Heater (C32) E40 Electrical Auxiliary Heater X1 (C32)E40 Electrical Auxiliary Heater X2 (C32) |
| 7: M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator |
