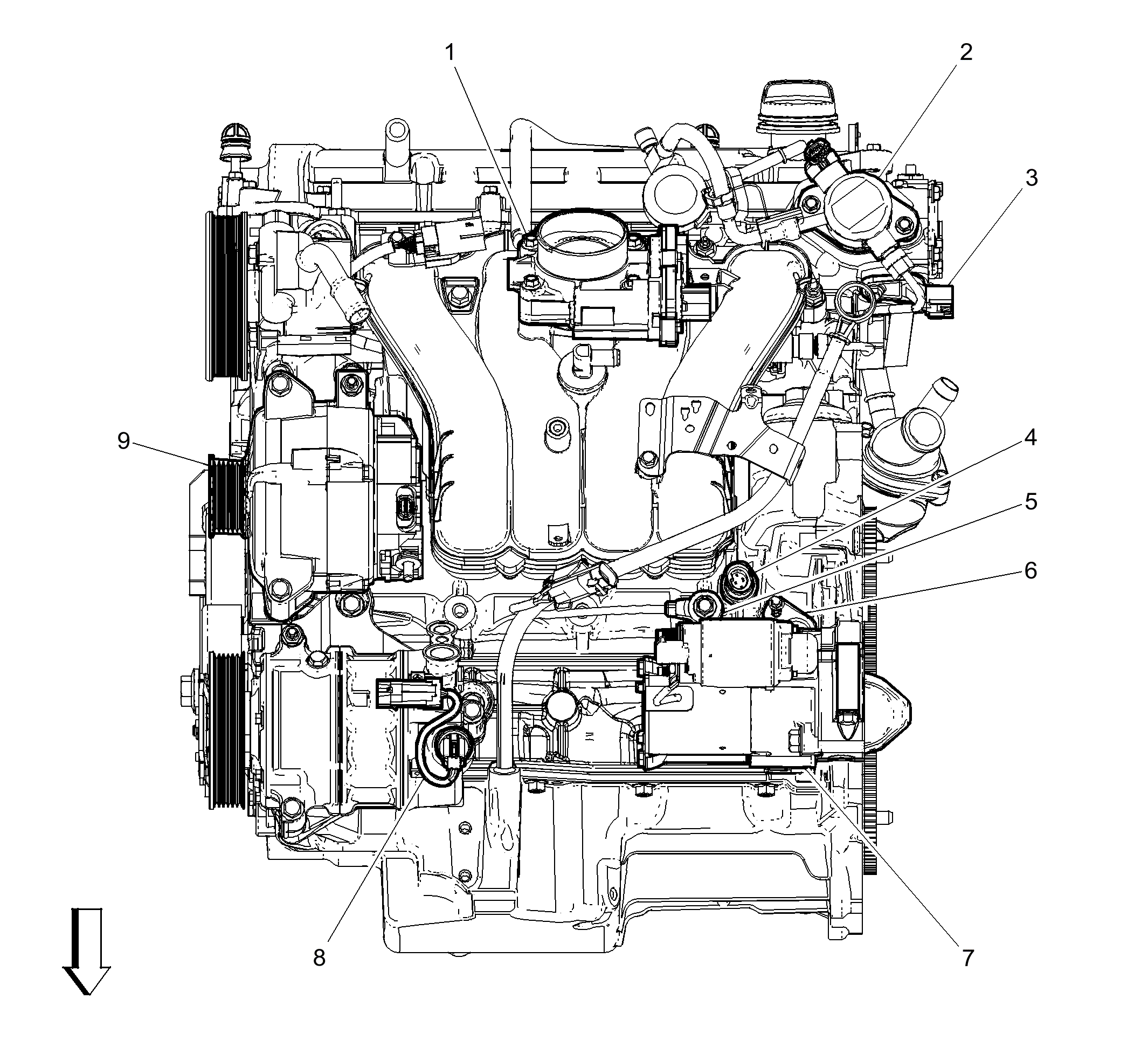

| 1:
Q38 Throttle Body Q38 Throttle BodyQ38 Throttle Body (LBN) |
| 2:
G18 High Pressure Fuel Pump |
| 3:
B23F Camshaft Position Sensor - Intake (LEA) B23F Camshaft Position Sensor - Intake |
| 4:
B37 Engine Oil Pressure Switch (LEA) B37 Engine Oil Pressure Switch |
| 5:
B68 Knock Sensor (LEA) B68 Knock Sensor |
| 6:
B26 Crankshaft Position Sensor (LEA) B26 Crankshaft Position Sensor |
| 7:
M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2 |
| 8:
Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 9:
G13 Generator G13 Generator X1G13 Generator X2 |
