Door Lock Switch Replacement

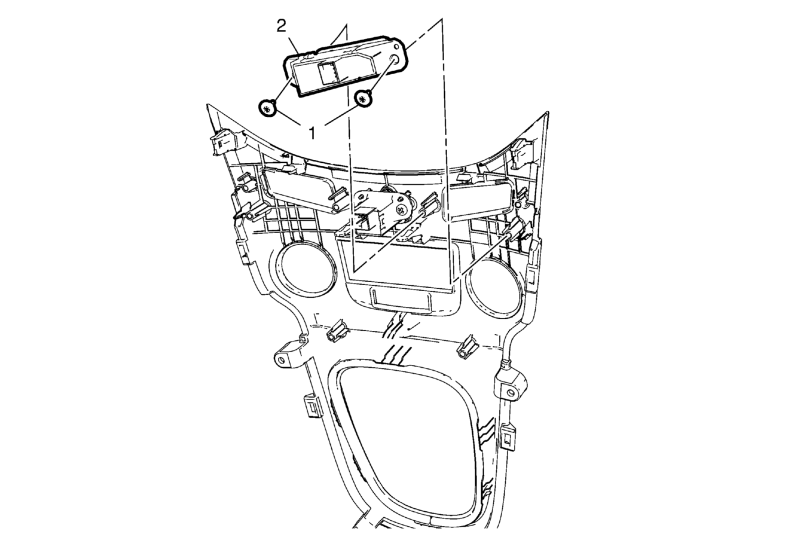

Fig 1: Door Lock Switch
GM2372679Courtesy of GENERAL MOTORS COMPANY
Door Lock Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel lower molding. Refer to Instrument Panel Lower Molding Replacement
1 Door Lock Switch Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Door Lock Switch
