Liftgate Latch Replacement

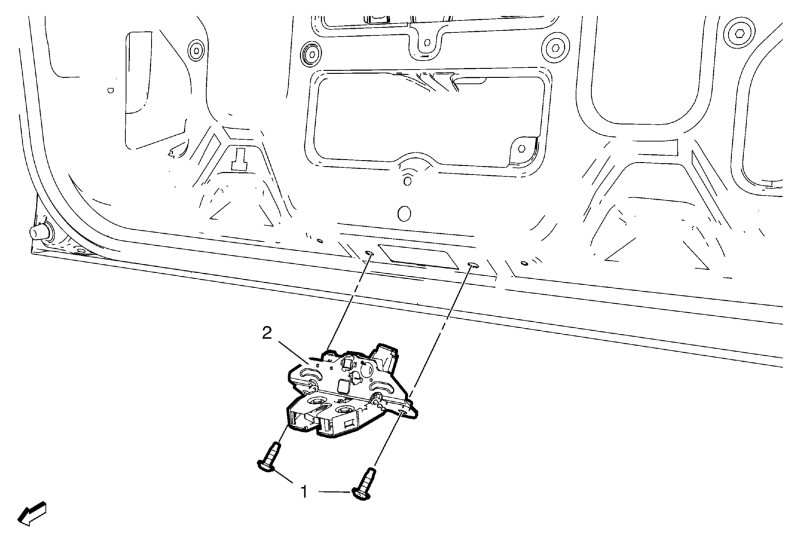

Fig 1: Liftgate Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement
1	Liftgate Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Liftgate Latch
