Window Systems Component Views

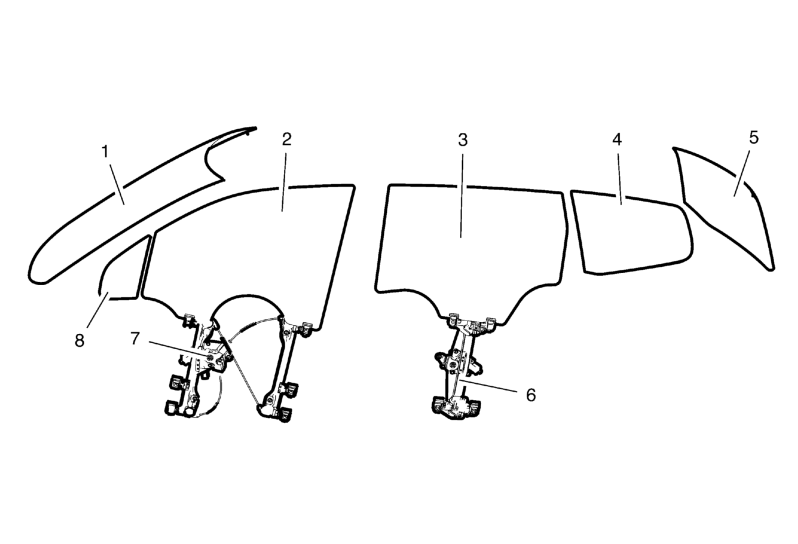

Fig 1: Window Systems Components
GM2372637Courtesy of GENERAL MOTORS COMPANY
Window Systems Component Views

Number Description Procedure
1 Windshield Windshield Replacement
2 Front Side Door Window Front Side Door Window Replacement
3 Rear Side Door Window Rear Side Door Window Replacement
4 Quarter Window Quarter Window Replacement
5 Liftgate Window Liftgate Window Replacement
6 Rear Side Door Window Regulator Rear Side Door Window Regulator Replacement
7 Front Side Door Window Regulator Front Side Door Window Regulator Replacement
8 Front Side Door Stationary Window Front Side Door Stationary Window Replacement
