Liftgate Release Switch Replacement

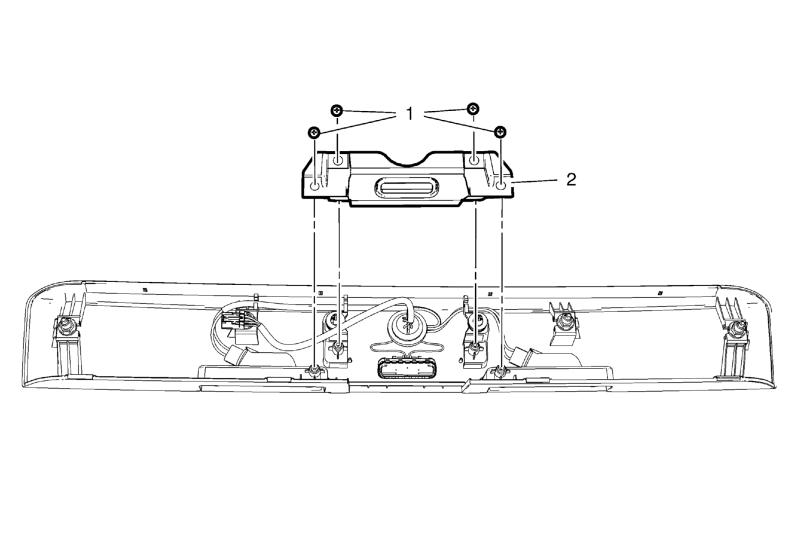

Fig 1: Liftgate Release Switch
GM2373375Courtesy of GENERAL MOTORS COMPANY
Liftgate Release Switch Replacement

Callout Component Name
Preliminary Procedures
Remove the liftgate side applique. Refer to Liftgate Side Applique Replacement
1 Liftgate Release Switch Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Liftgate Release Switch
