Installation Procedure

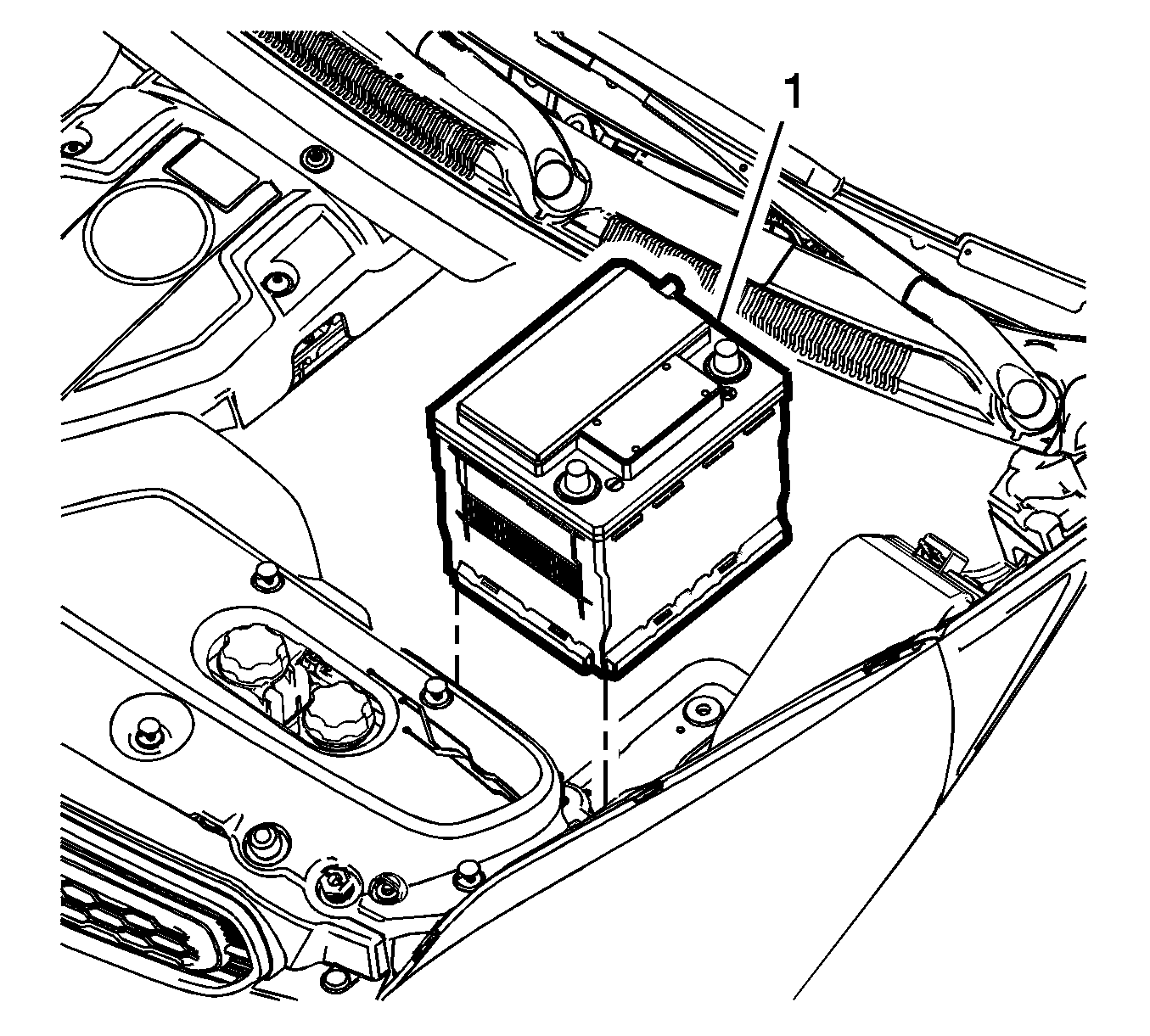

    Fig 1: Battery
    GM3213057Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery (1) into position on the battery tray.

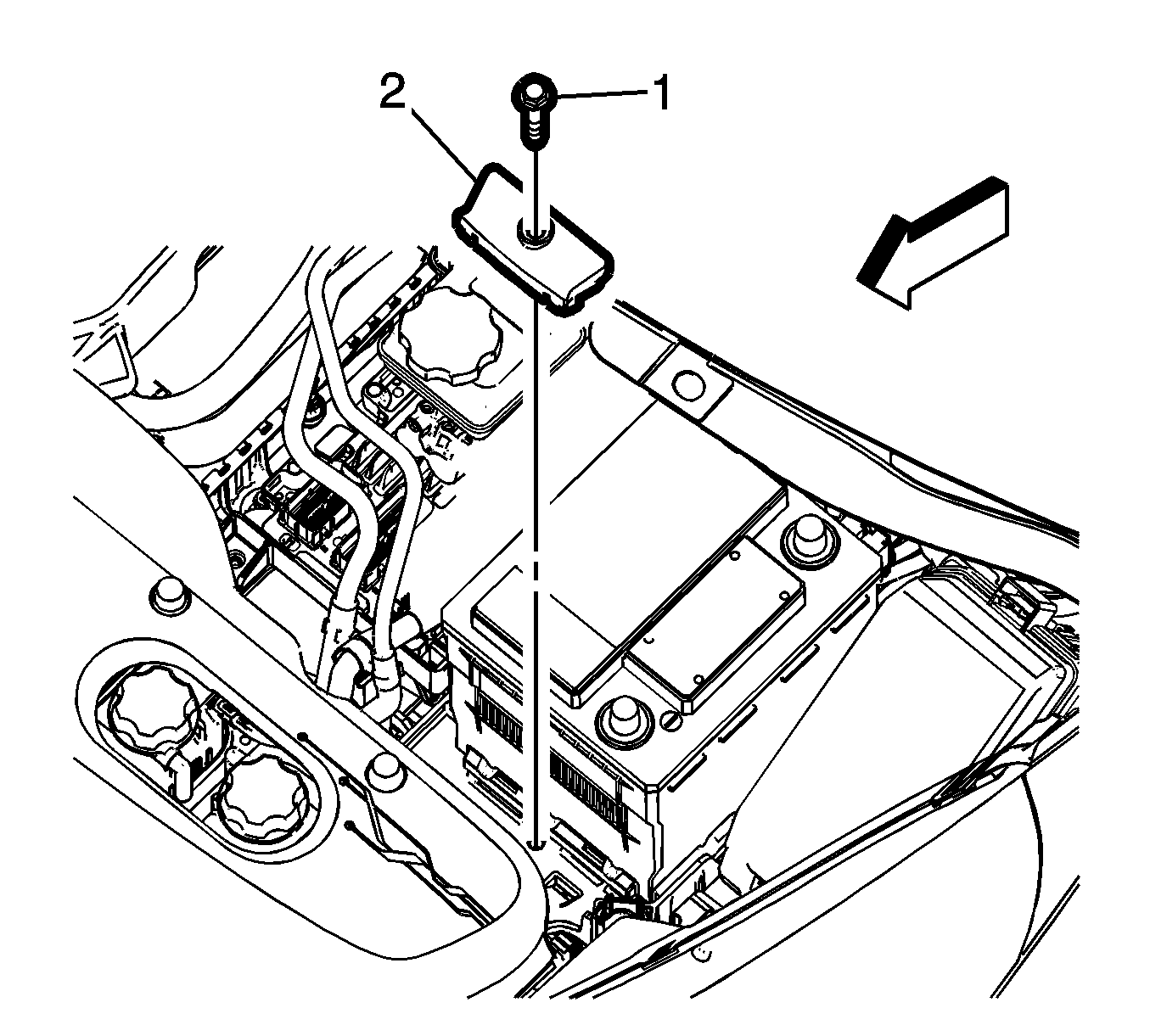

    2. Fig 2: Battery Hold Down Retainer Fastener
    GM3213054Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery hold down retainer (2) and tighten the fastener (1) to 8 (71 lb in).

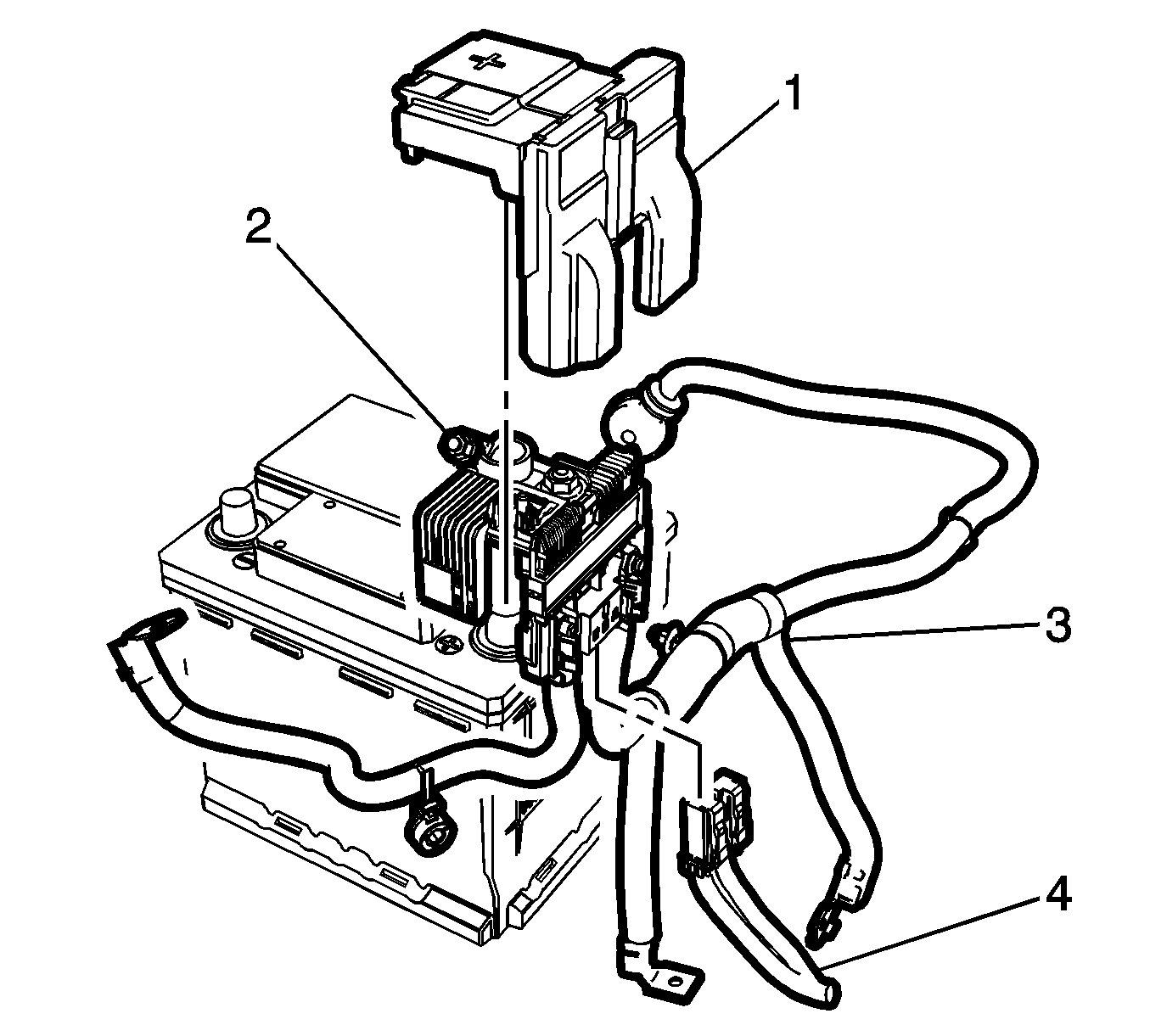

    3. Fig 3: Protective Cover
    GM2917974Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive cable to the battery post and tighten the clamp fastener (2) to 5 (44 lb in).
  4. Install the protective cover (1) to the battery positive cable.
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
