Installation Procedure

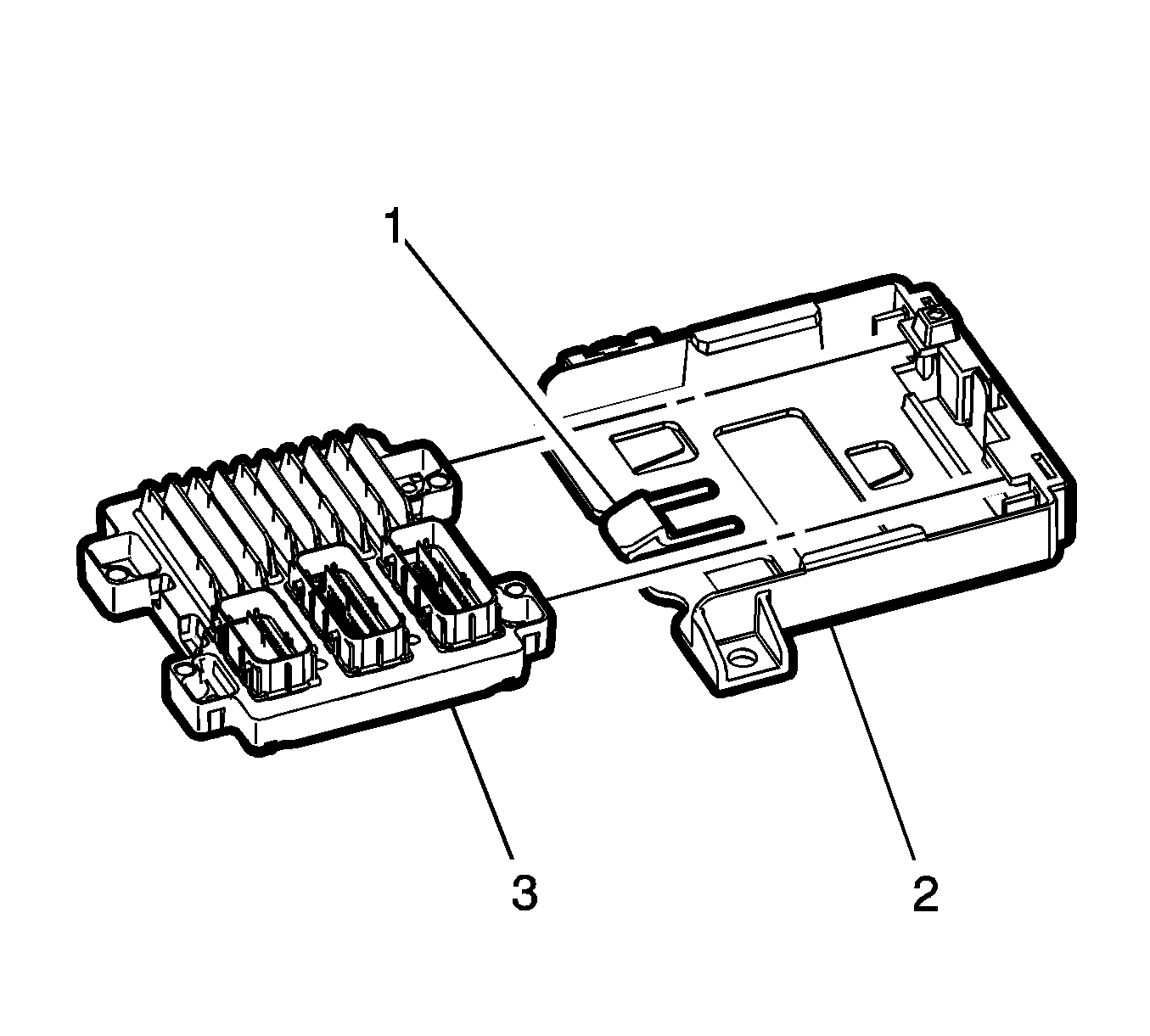

    Fig 1: ECM Module And ECM Module Bracket
    GM3232224Courtesy of GENERAL MOTORS COMPANY
  1. Install the ECM module (2) into the ECM module bracket.

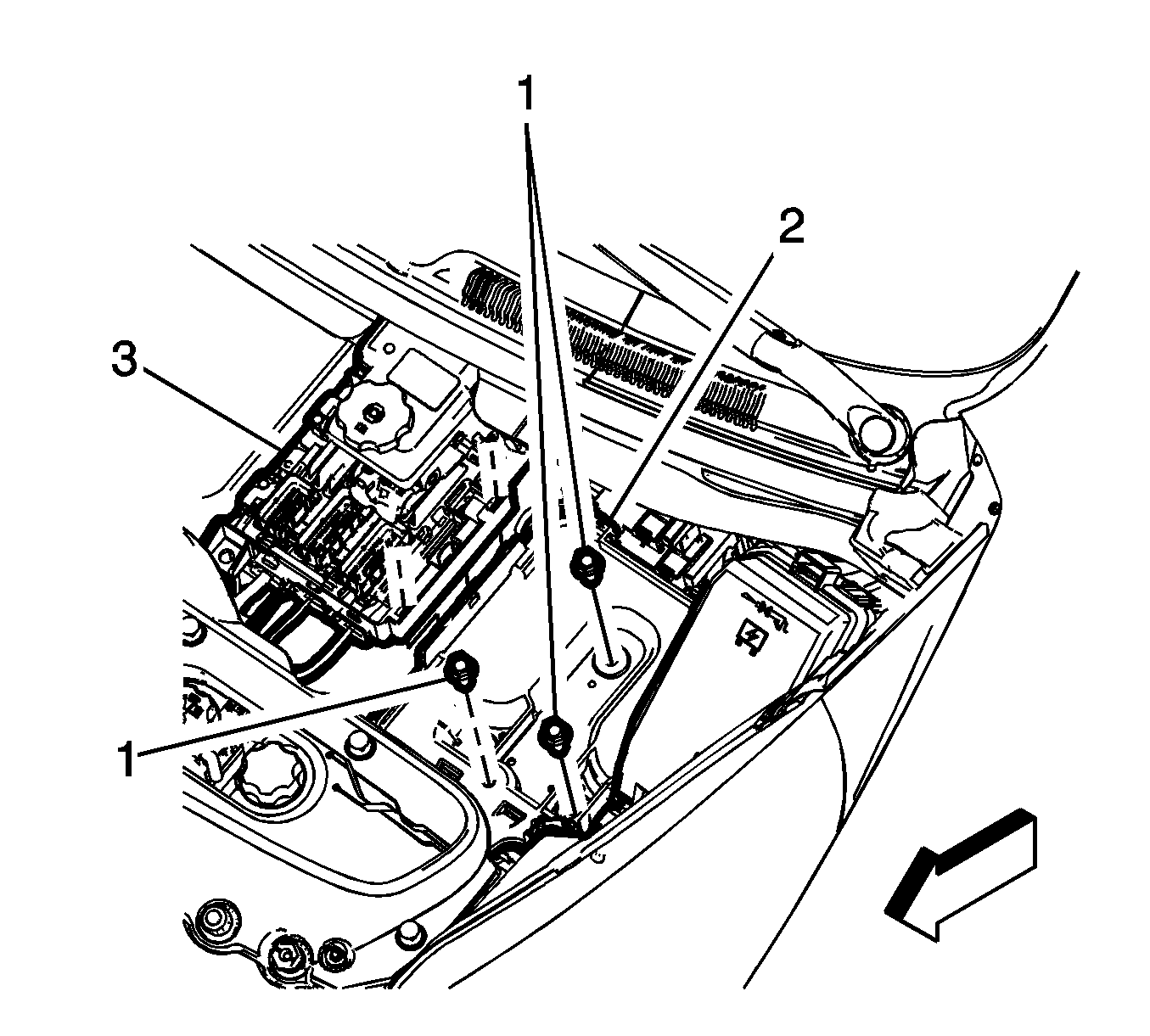

    2. Fig 2: ECM Module Bracket Retainers
    GM3216629Courtesy of GENERAL MOTORS COMPANY
  2. Attach the ECM module bracket retainers (3) to the battery tray (2).

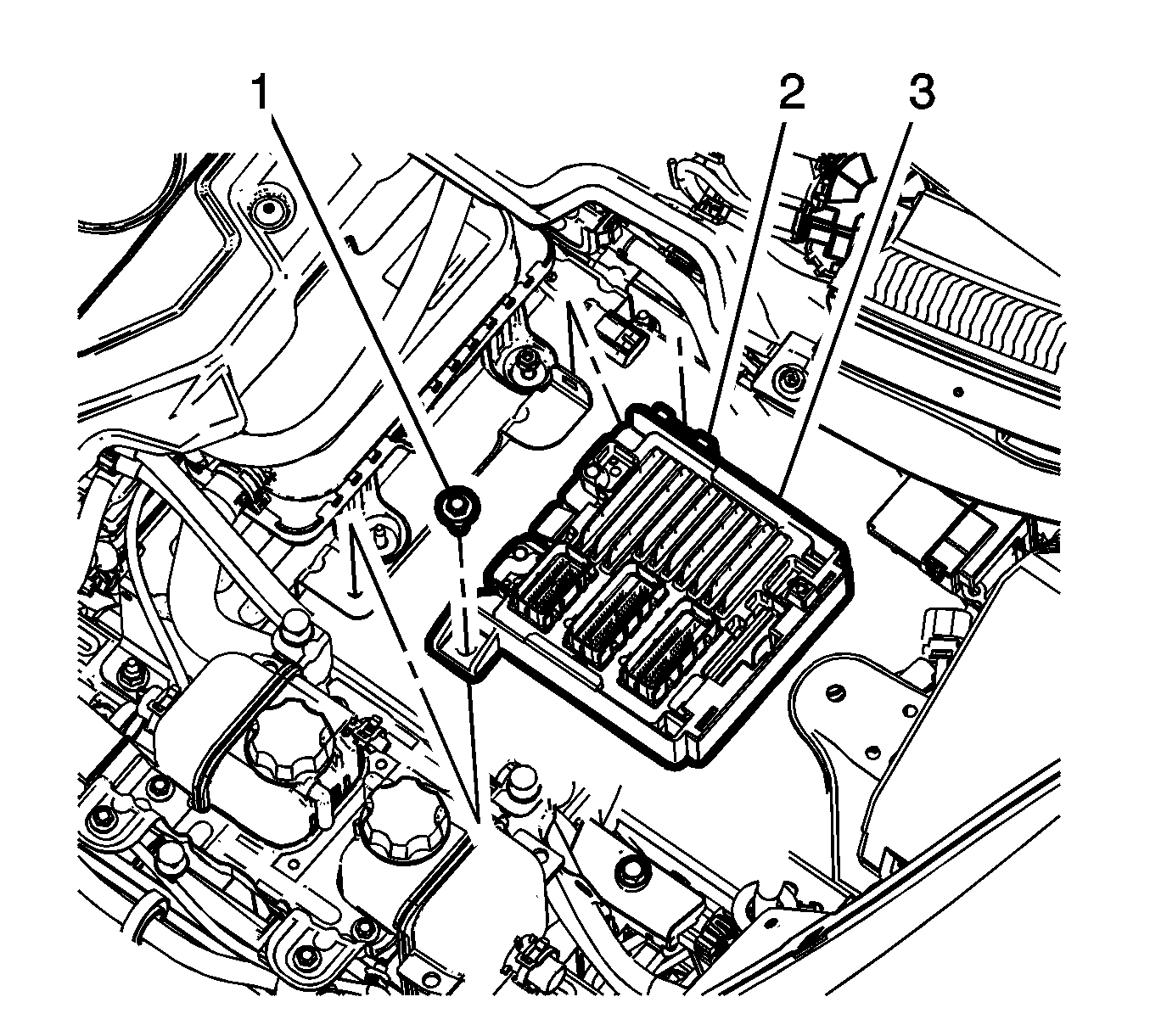

    3. Fig 3: ECM Module Bracket Fastener And Release Retaining Tab
    GM3232225Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the ECM module bracket to the heater coolant heater bracket with the fastener (1) and retaining tab (2). Tighten the fastener (1) to 9 (80 lb in).
    4. Fig 4: Engine Control Module (ECM) Connectors And ECM Module
    GM3232226Courtesy of GENERAL MOTORS COMPANY
  4. Install the ECM connectors (1) to the ECM module (2).
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
