Object Detection Wiring Schematics

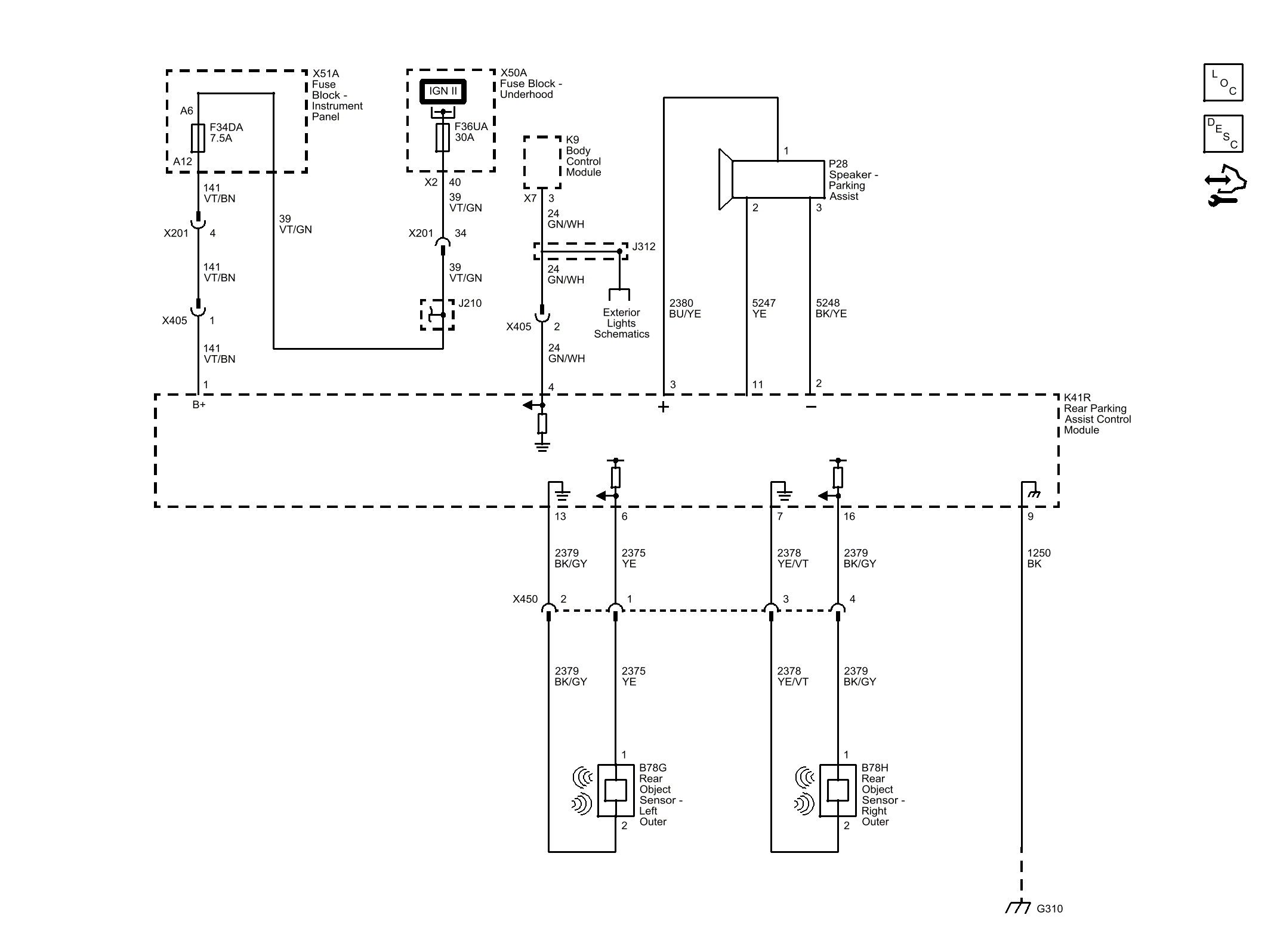

Fig 1: Object Detection Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
