Secondary Controls

WARNING: This page is about a different car, the 2015 GMC Acadia, 2015 Chevrolet Traverse, and 2015 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

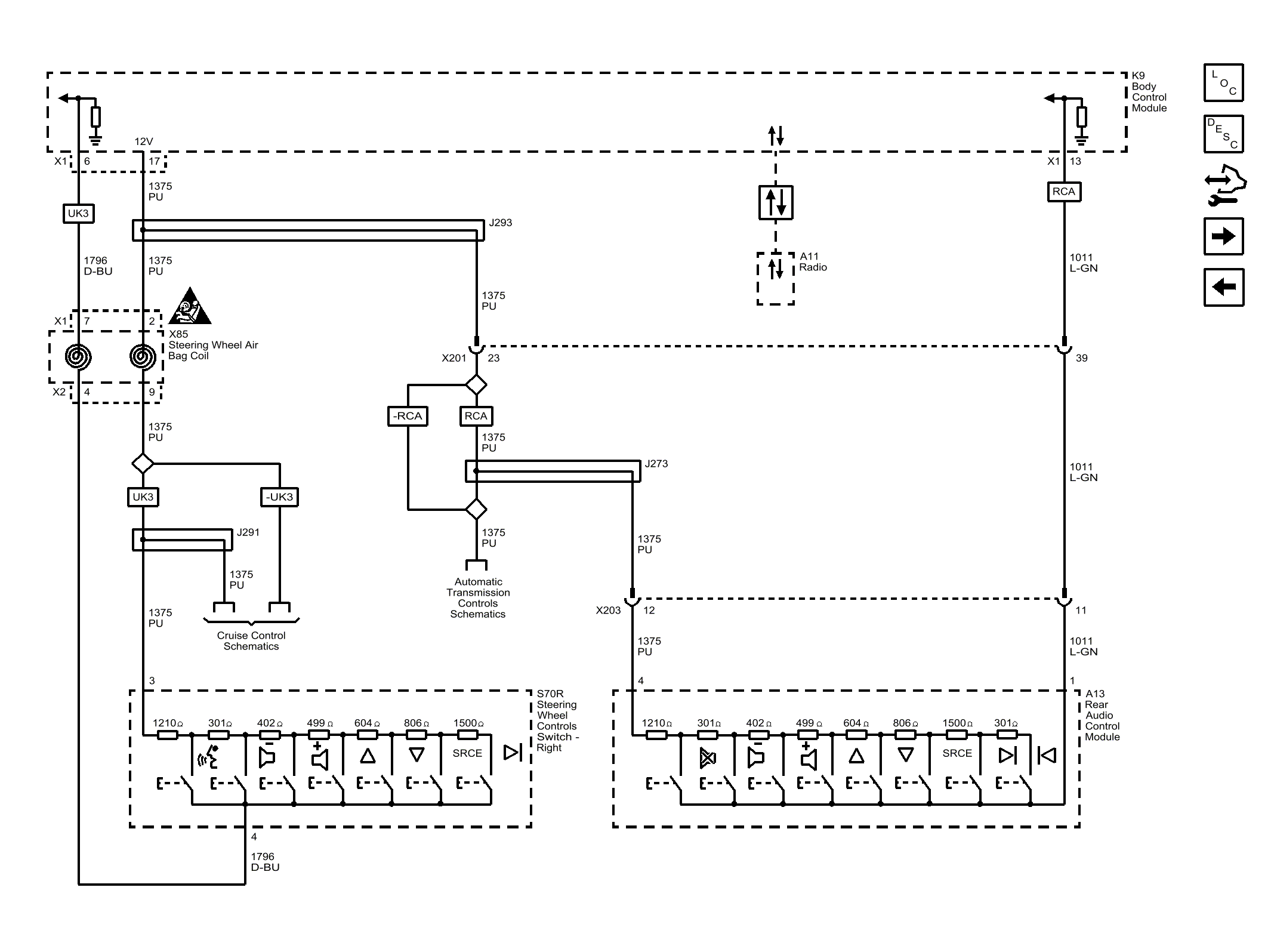

Fig 1: Secondary Controls
GM3717723Courtesy of GENERAL MOTORS COMPANY
