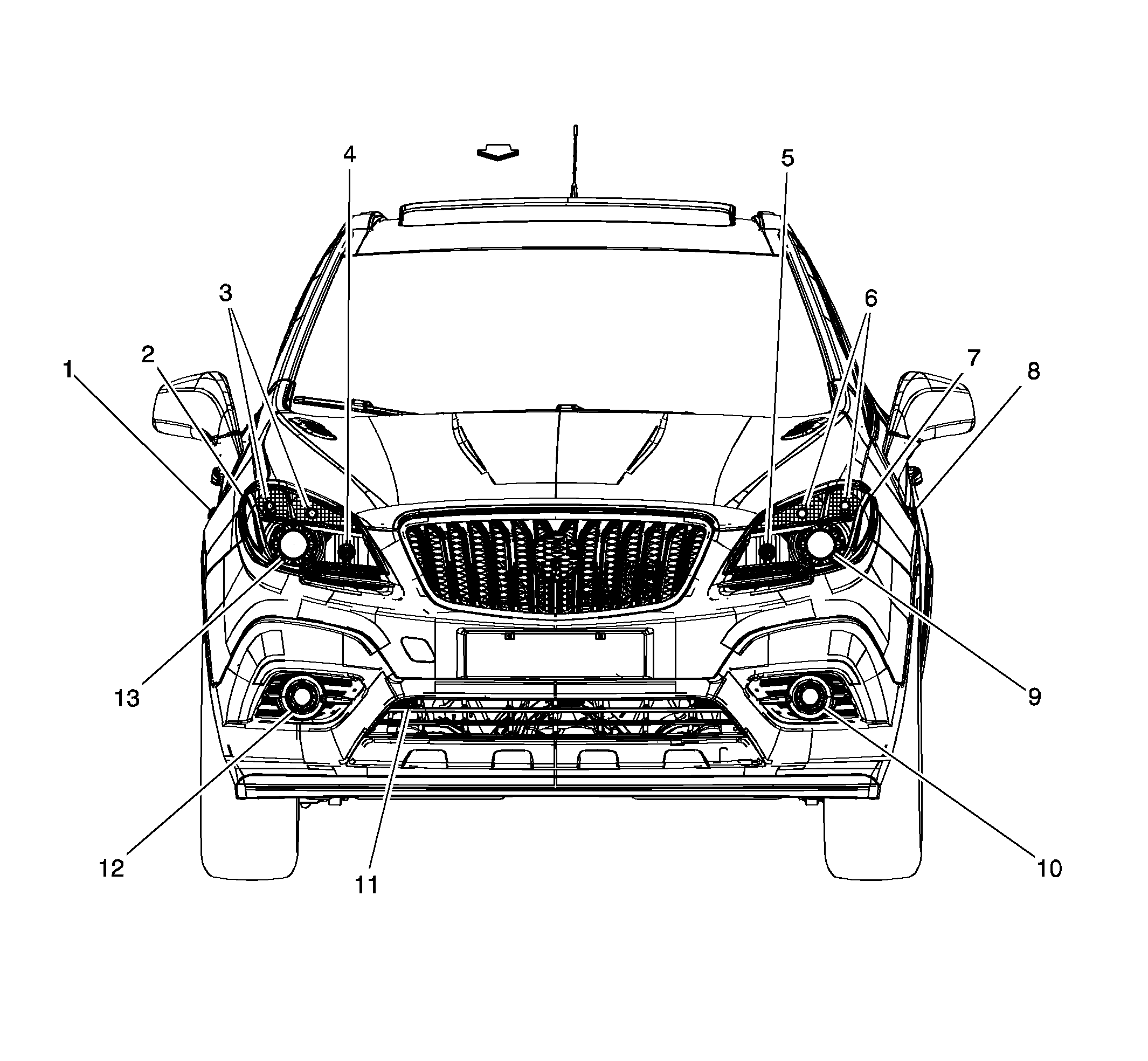

Front of Vehicle Components
WARNING: This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right (T39) |
| 2: E2RF Side Marker Lamp - Right Front |
| 3: E4RF Turn Signal Lamp - Right Front |
| 4: E4F Headlamp - Right High Beam |
| 5: E4E Headlamp - Left High Beam E4E Head Lamp - Left High Beam |
| 6: E4LF Turn Signal Lamp - Left Front |
| 7: E2LF Side Marker Lamp - Left Front |
| 8: E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left (T39) |
| 9: E4G Headlamp - Left Low Beam |
| 10: E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front (T3U) |
| 11: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 12: E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front (T3U) |
| 13: E4H Headlamp - Right Low Beam |
