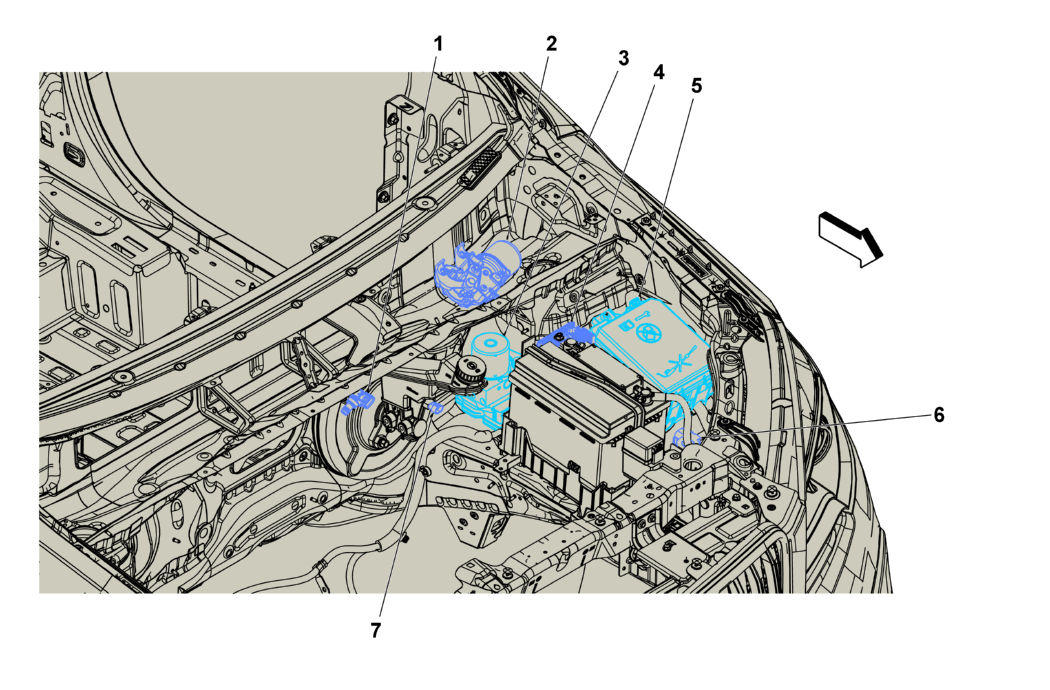

Left of Engine Compartment Components
WARNING: This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor |
| 2: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 3: K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
| 4: X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4X50D Fuse Block - Battery X5 |
| 5: X50A Fuse Block - Underhood |
| 6: B18 Battery Current Sensor B18 Battery Current Sensor |
| 7: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
