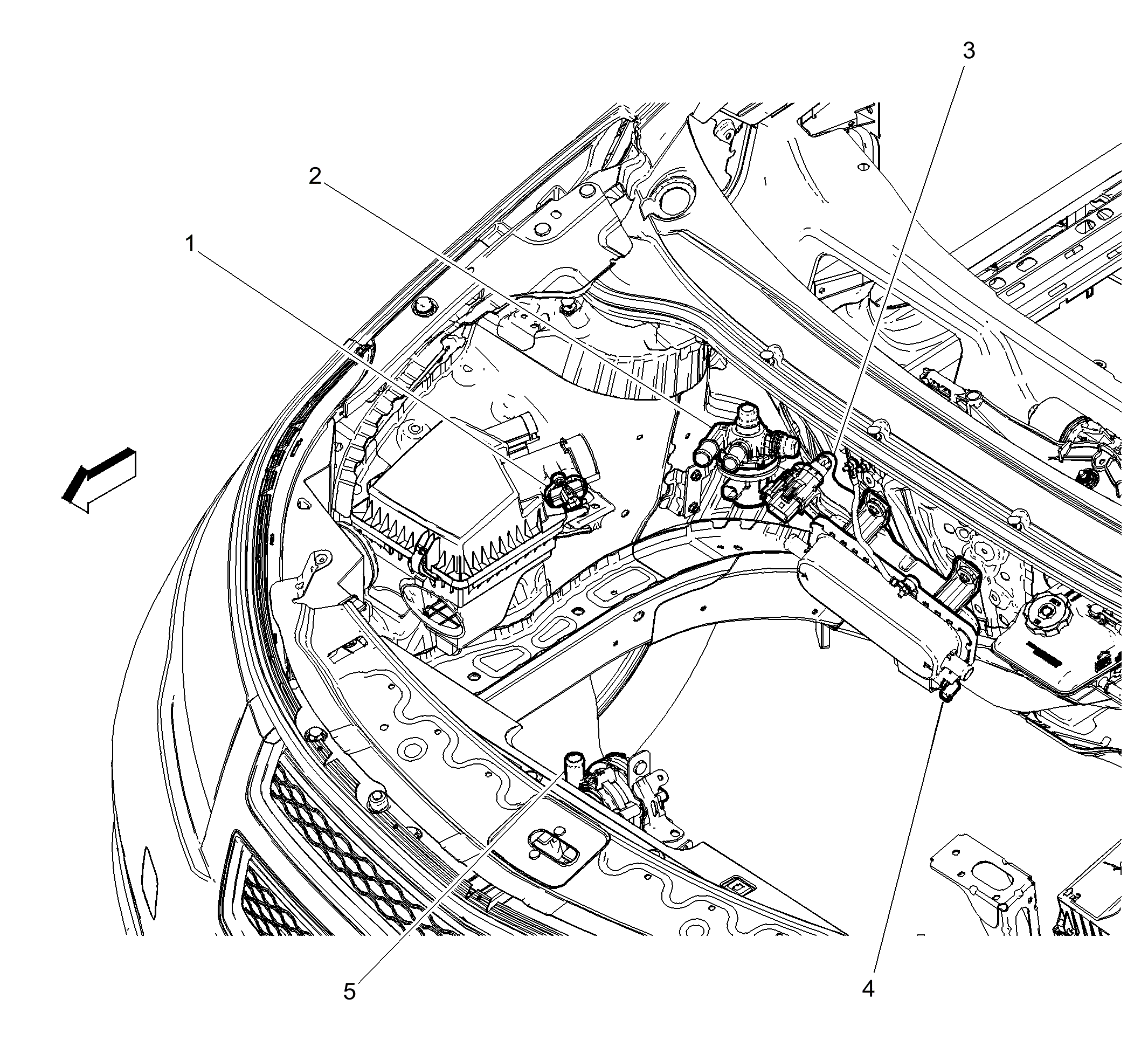

Engine Compartment Components - Right
Engine Compartment Components - Right
| Items |
|---|
| 1: B75B Mass Air Flow/Intake Air Temperature Sensor B75B Mass Airflow/Intake Air Temperature Sensor |
| 2: Q65 Hybrid/EV Battery Pack Coolant Control Valve Q65 Hybrid/EV Battery Pack Coolant Control Valve |
| 3: B135 Coolant Heater Temperature Sensor B135 Coolant Heater Temperature Sensor |
| 4: K10 Coolant Heater Control Module K10 Coolant Heater Control Module X1K10 Coolant Heater Control Module X2 |
| 5: G36 Auxiliary Heater Coolant Pump G36 Auxiliary Heater Coolant Pump |
