Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

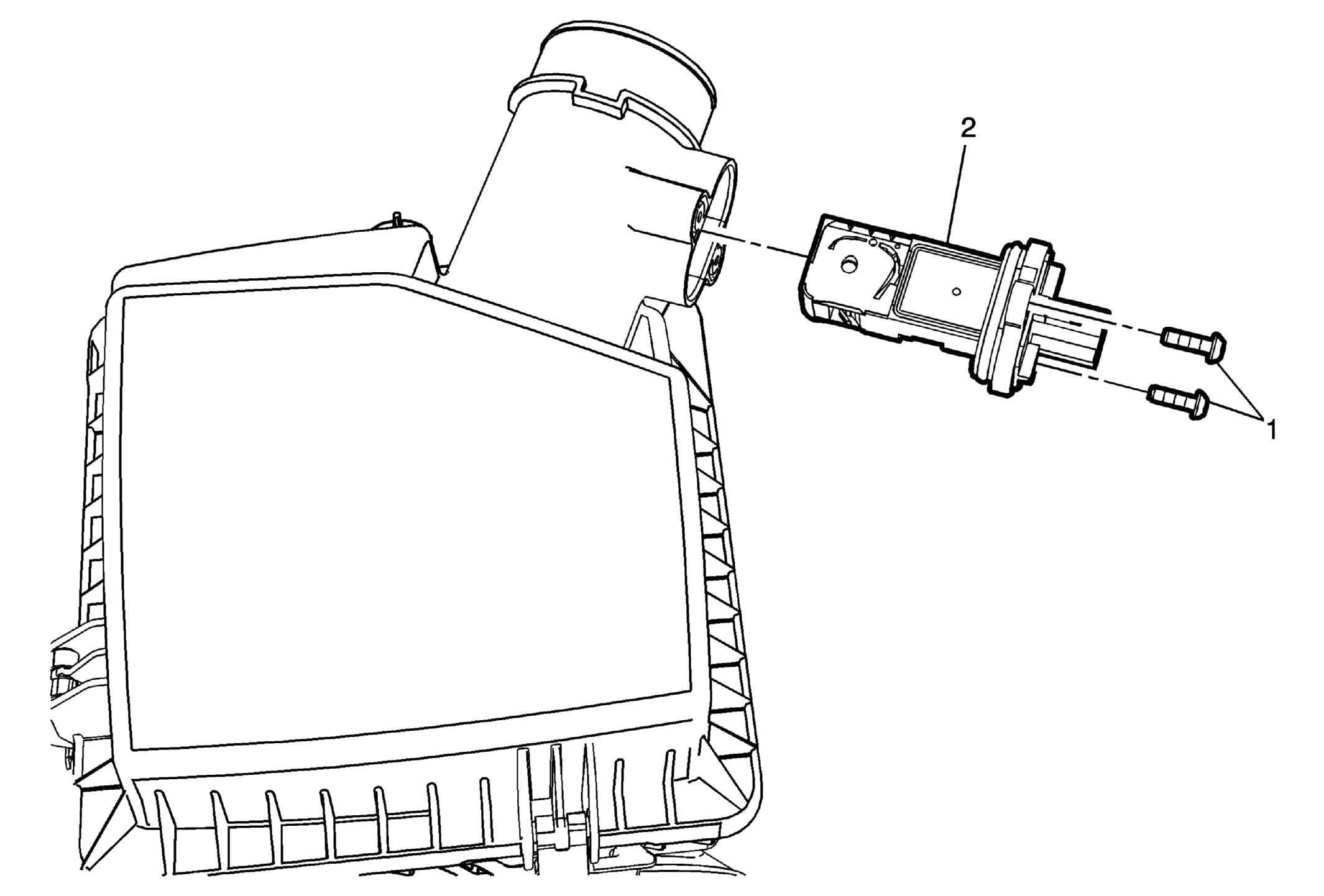

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor
GM2387324Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout Component Name
1 Mass Airflow Sensor Fastener (Qty: 2)
CAUTION: Refer to Fastener Caution .
2 Mass Airflow Sensor with Intake Air Temperature Sensor
Procedure
Disconnect the electrical connector.
