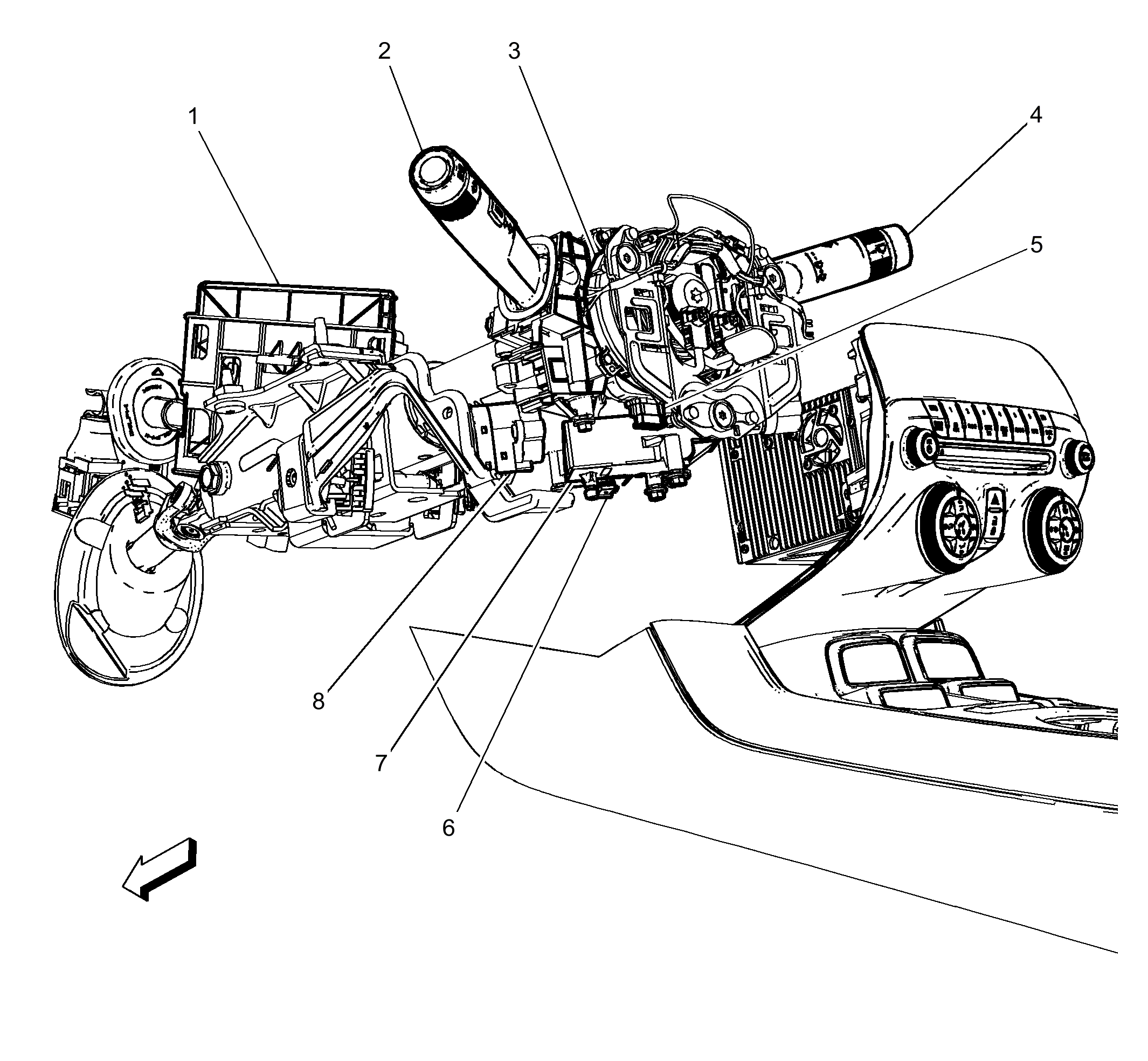

Left Center of Instrument Panel and Steering Column Components
Left Center of Instrument Panel and Steering Column Components
| Items |
|---|
| 1: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 2: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 3: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3 |
| 4: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 5: B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor |
| 6: M93 Key Capture Solenoid Actuator (MYB or MYC) M93 Key Capture Solenoid Actuator (MYB or MYC) |
| 7: K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 8: S39 Ignition Switch S39 Ignition Switch |
