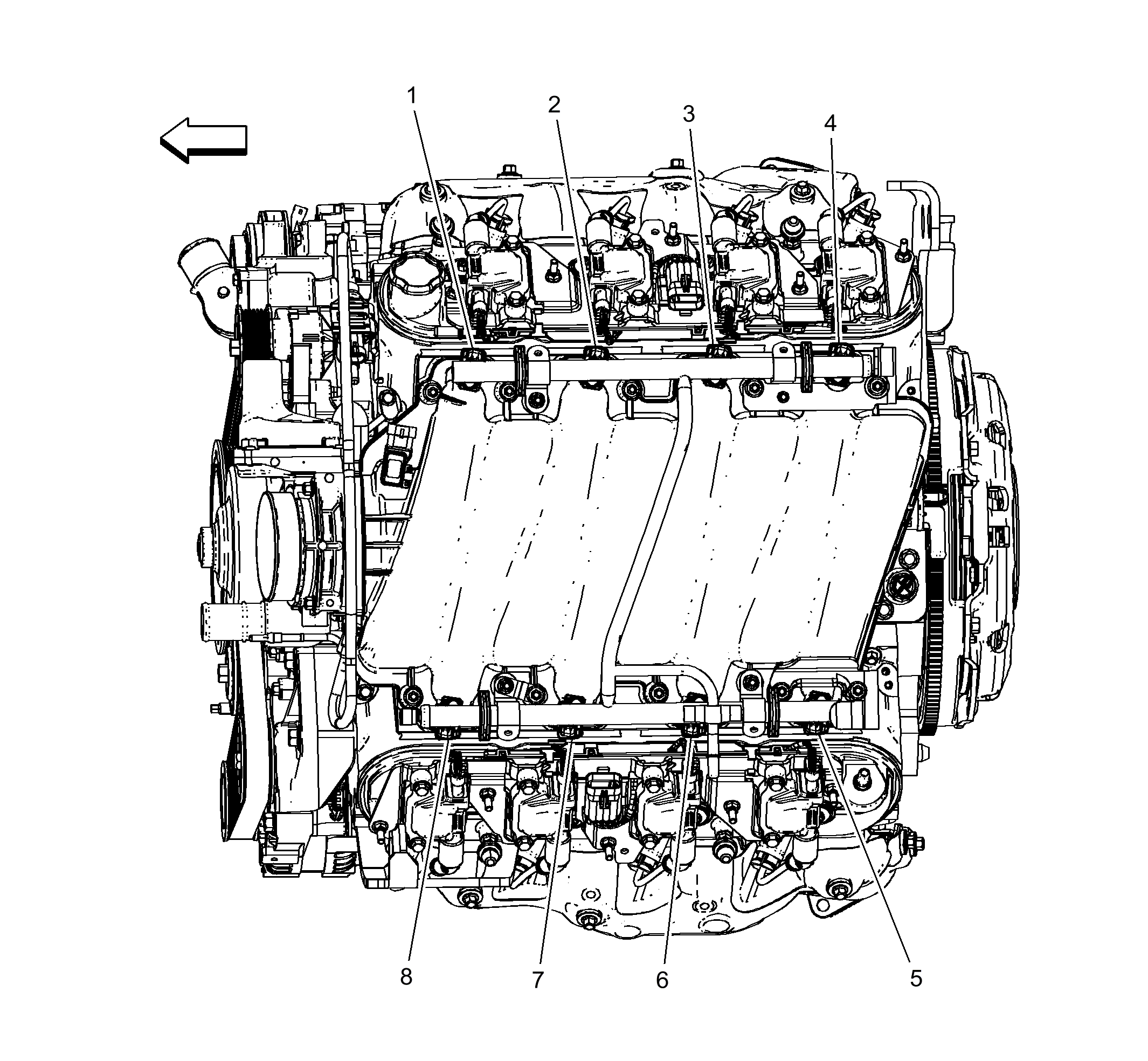

Top of Engine Components (LS7)
Top of Engine Components (LS7)
| Items |
|---|
| 1: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (L99, LS3, LSA, or LS7) |
| 2: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (L99, LS3, LSA, or LS7) |
| 3: Q17F Fuel Injector 6 Q17F Fuel Injector 6 (L99, LS3, LSA, or LS7) |
| 4: Q17H Fuel Injector 8 (LSA, LS3, LS7, and L99) Q17H Fuel Injector 8 (L99, LS3, LSA, or LS7) |
| 5: Q17G Fuel Injector 7 (LSA, LS3, LS7, and L99) Q17G Fuel Injector 7 (L99, LS3, LSA, or LS7) |
| 6: Q17E Fuel Injector 5 Q17E Fuel Injector 5 (L99, LS3, LSA, or LS7) |
| 7: Q17C Fuel Injector 3 Q17C Fuel Injector 3 (L99, LS3, LSA, or LS7) |
| 8: Q17A Fuel Injector 1 Q17A Fuel Injector 1 (L99, LS3, LSA, or LS7) |
