Automatic Transmission Electronic Components

GM3946453Courtesy of

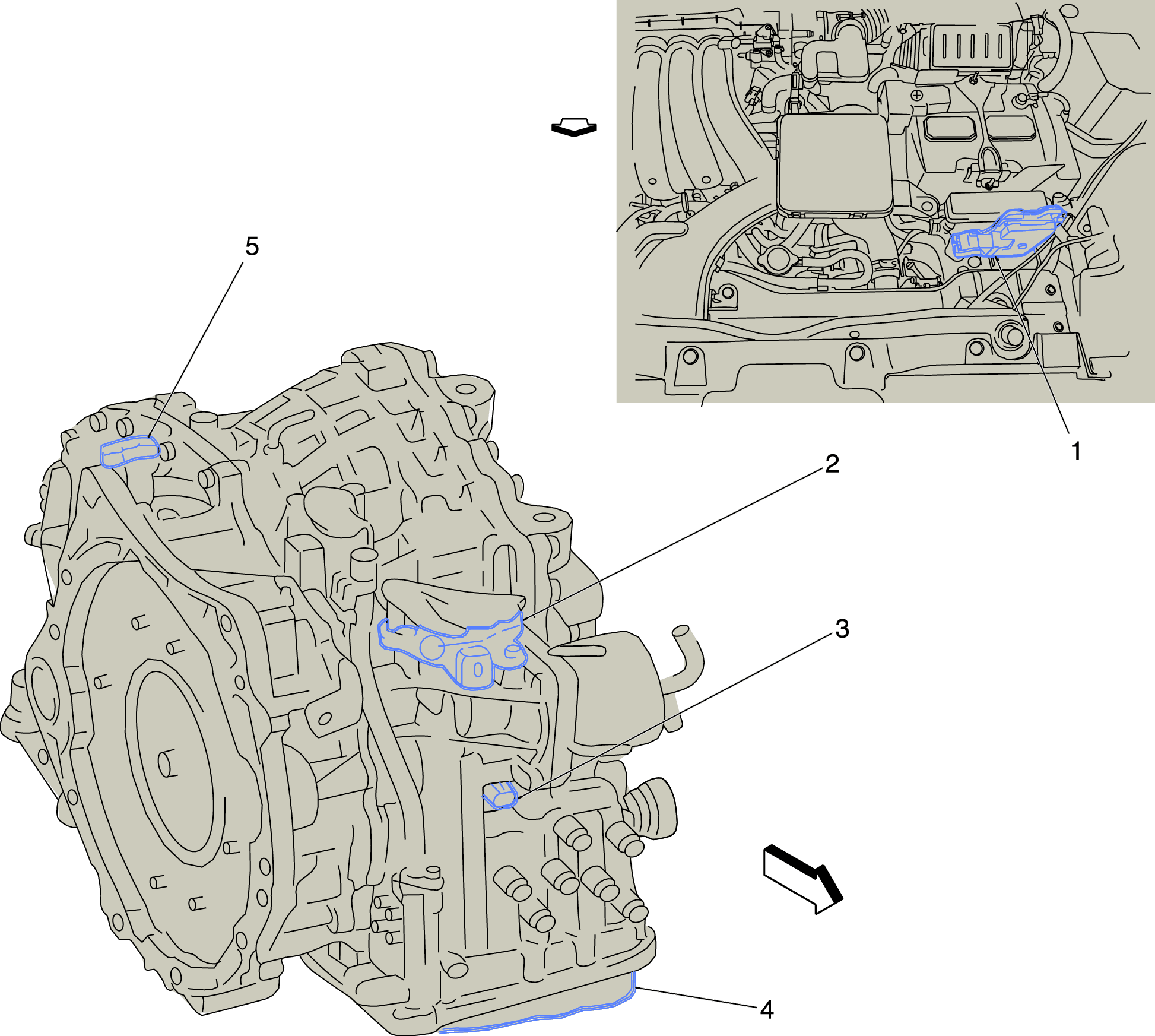

Automatic Transmission Electronic Components

Items Callout
K71 Transmission Control Module Connector View (1)
B81 Park/Neutral Position Switch Connector View (2)
B14C Transmission Input Shaft Speed Sensor Connector View (3)
Q8 Control Solenoid Valve Assembly (4)
B14A Transmission Output Shaft Speed Sensor Connector View (5)
