Front Compartment Fuse Block Cover Replacement

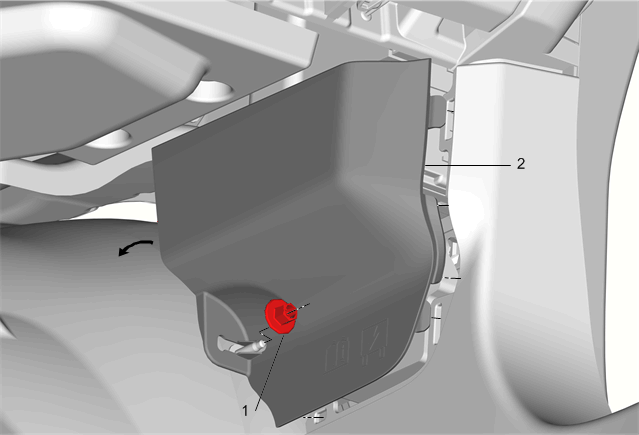

| Callout | Component Name |
|---|---|
| Preliminary Procedure Open the passenger side door to gain access to the front compartment fuse block cover on the right hand side lower hinge pillar. |
|
| 1 | Front Compartment Fuse Block Cover Nut
CAUTION:
Refer to Fastener Caution . Tighten: 6 N.m (53 lb in) |
| 2 | Front Compartment Fuse Block Cover Procedure Grasp the left hand side of the front compartment fuse block cover and pull slightly to release the tab and swing out to the right and remove. |
