Rear Sliding Window Guide Replacement (Upper)

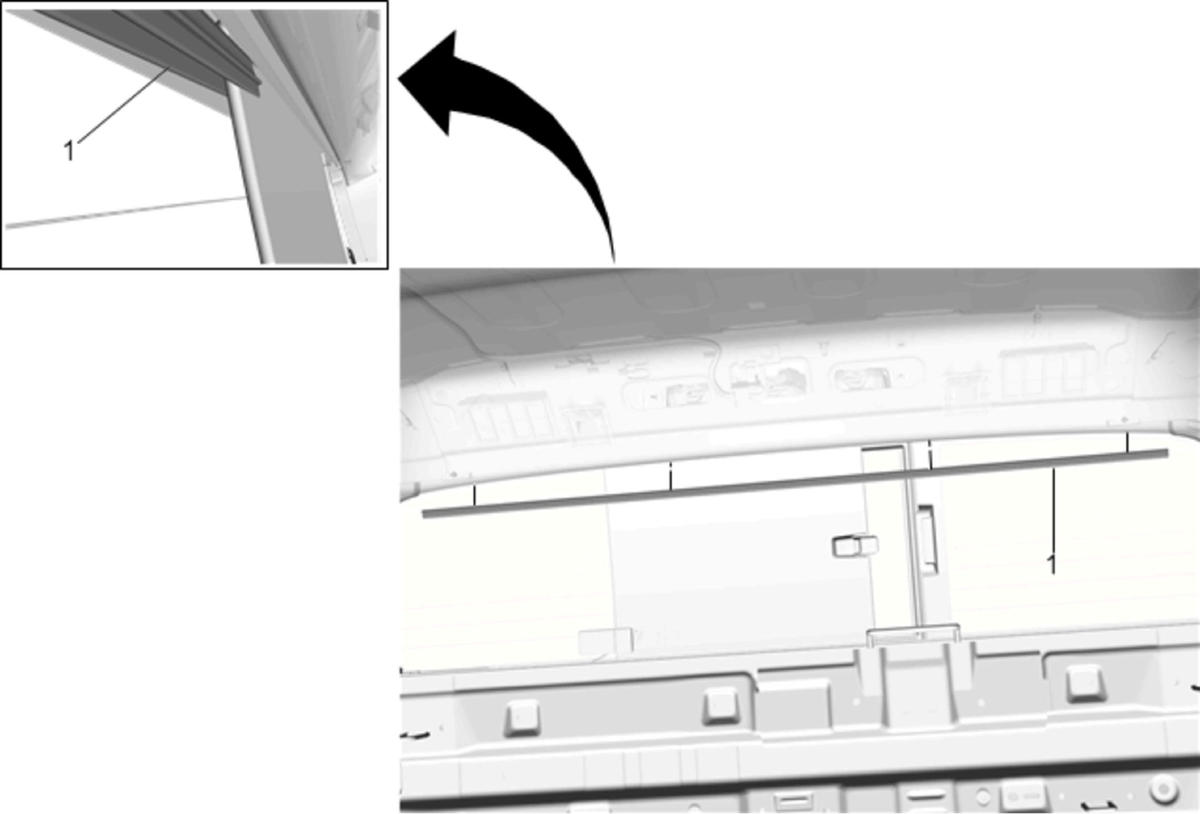

Fig 1: Rear Sliding Window Guide (Upper)
GM3807662Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Sliding Window Guide - Upper

Procedure

  1. Open the rear sliding window.
  2. From the passenger side, pull down and slide the rear sliding window upper guide from between the frame and sliding window.
