Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

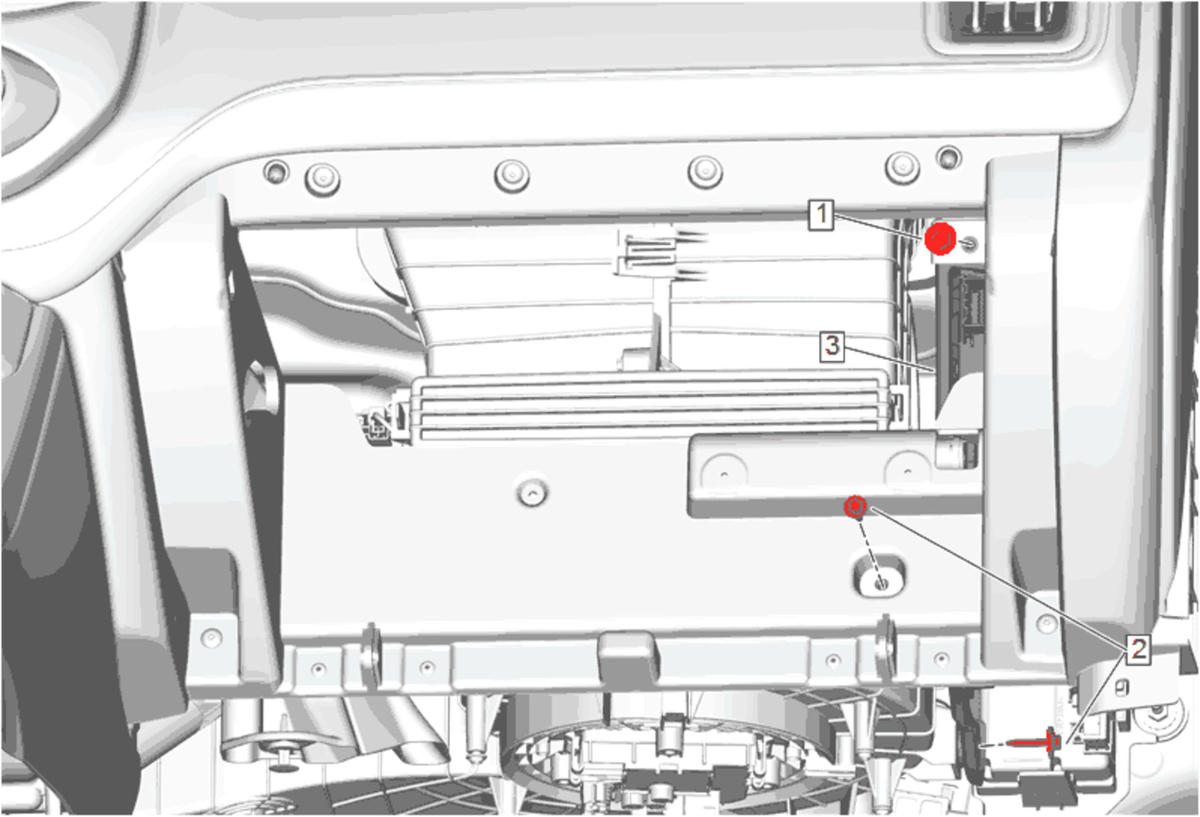

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Outer Trim Cover. Refer to Instrument Panel Outer Trim Cover Replacement Remove Body Hinge Pillar Garnish Molding. Refer to Body Hinge Pillar Garnish Molding Replacement (Left Side)Body Hinge Pillar Garnish Molding Replacement (Right Side) Remove Instrument Panel Compartment Door. Refer to Instrument Panel Compartment Door Replacement Remove Instrument Panel Lower Trim Panel Insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement Disconnect the blower motor electrical connector and reposition the electrical harness.
1	Radio Speaker Amplifier Fastener - Upper CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Speaker Amplifier Fastener - Lower Tighten 2.5 N.m (22 lb in)
3	Radio Speaker Amplifier Procedure Disconnect the electrical connectors.
