USB Receptacle Replacement

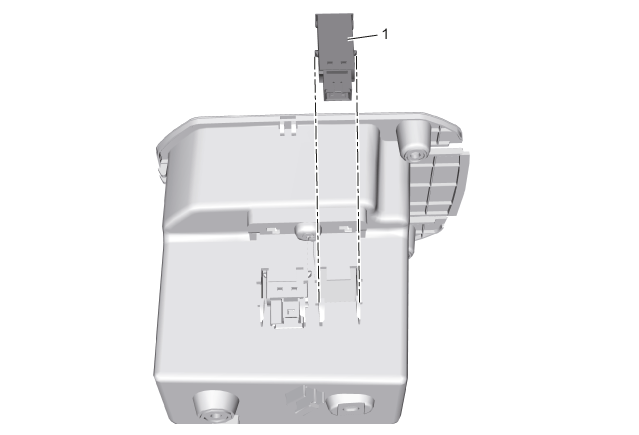

Fig 1: USB Receptacle
GM4067533Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1 USB Receptacle
Procedure
Press the 2 retaining tabs to remove.
