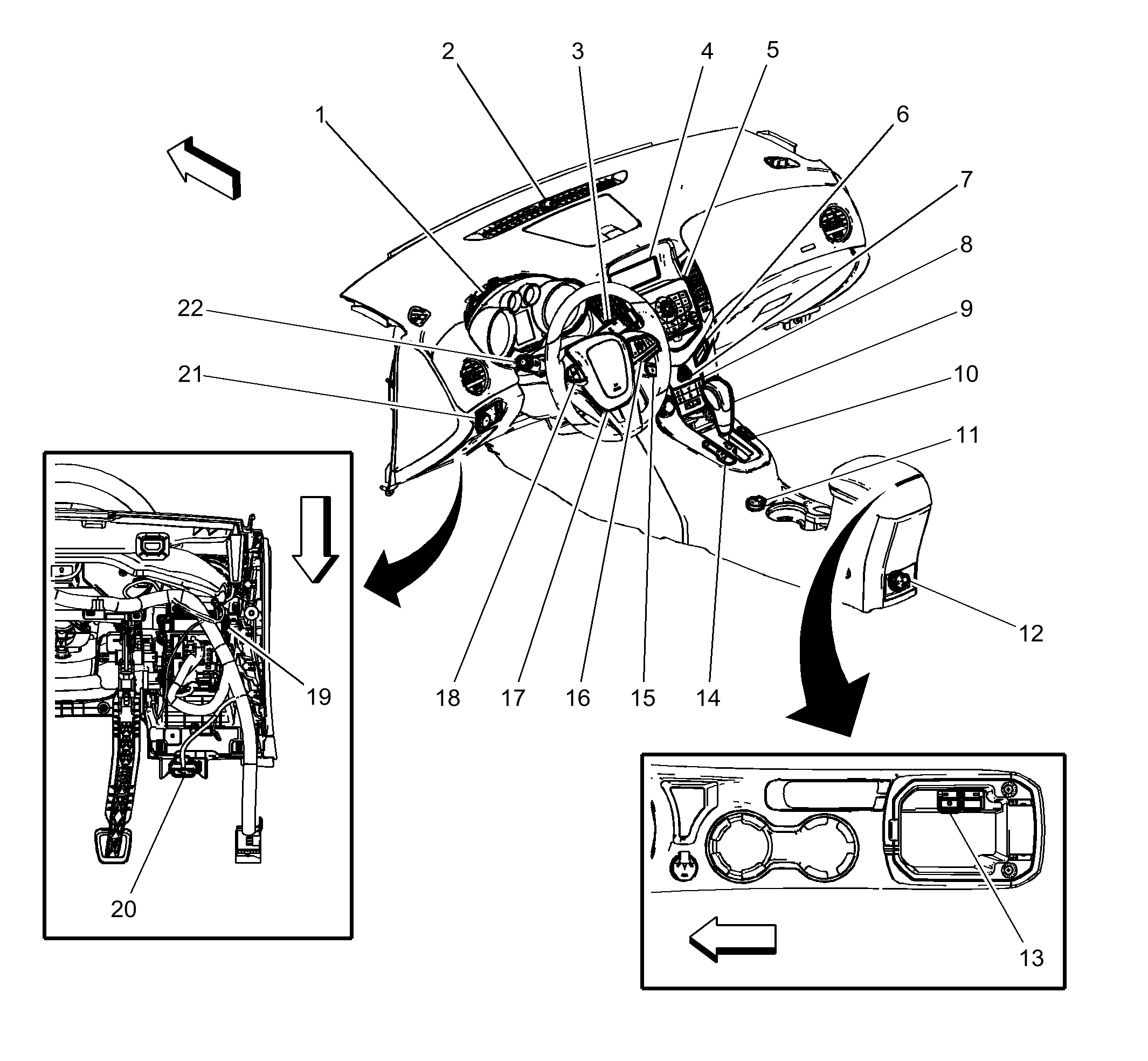

Instrument Panel and Center Console Components
Instrument Panel and Center Console Components
| Items |
|---|
| 1: P16 Instrument Cluster P16 Instrument Cluster |
| 2: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 3: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 4: P17 Info Display Module P17 Info Display Module , P17 Info Display Module and P17 Info Display Module X2 (UHQ) |
| 5: A22 Radio Controls A22 Radio Controls (Color Display) and A22 Radio Controls |
| 6: P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator |
| 7: S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 8: A26 HVAC Controls A26 HVAC Controls |
| 9: S3 Transmission Shift Lever (MH8/MH9) |
| 10: S75 Traction Control Switch (FX3) S75 Traction Control Switch |
| 11: X80 Accessory Power Receptacle X80 Accessory Power Receptacle |
| 12: X80L Accessory Power Receptacle - Center Console Rear X80L Accessory Power Receptacle - Center Console Rear |
| 13: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (- SD Card) and X83 Auxiliary Audio Input X2 |
| 14: P2 Transmission Shift Lever Position Indicator (MH8/MH9) P2 Transmission Shift Lever Position Indicator |
| 15: S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver |
| 16: S70R Steering Wheel Controls Switch - Right (UC3) S70R Steering Wheel Controls Switch - Right (W1Y) |
| 17: F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1 and F107 STEERING WHEEL AIR BAG X2 |
| 18: S70L Steering Wheel Controls Switch - Left (K34) S70L Steering Wheel Controls Switch - Left (K34) |
| 19: X51A Fuse Block - Instrument Panel |
| 20: X84 Data Link Connector X84 Data Link Connector |
| 21: S30 Headlamp Switch S30 Headlamp Switch |
| 22: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
