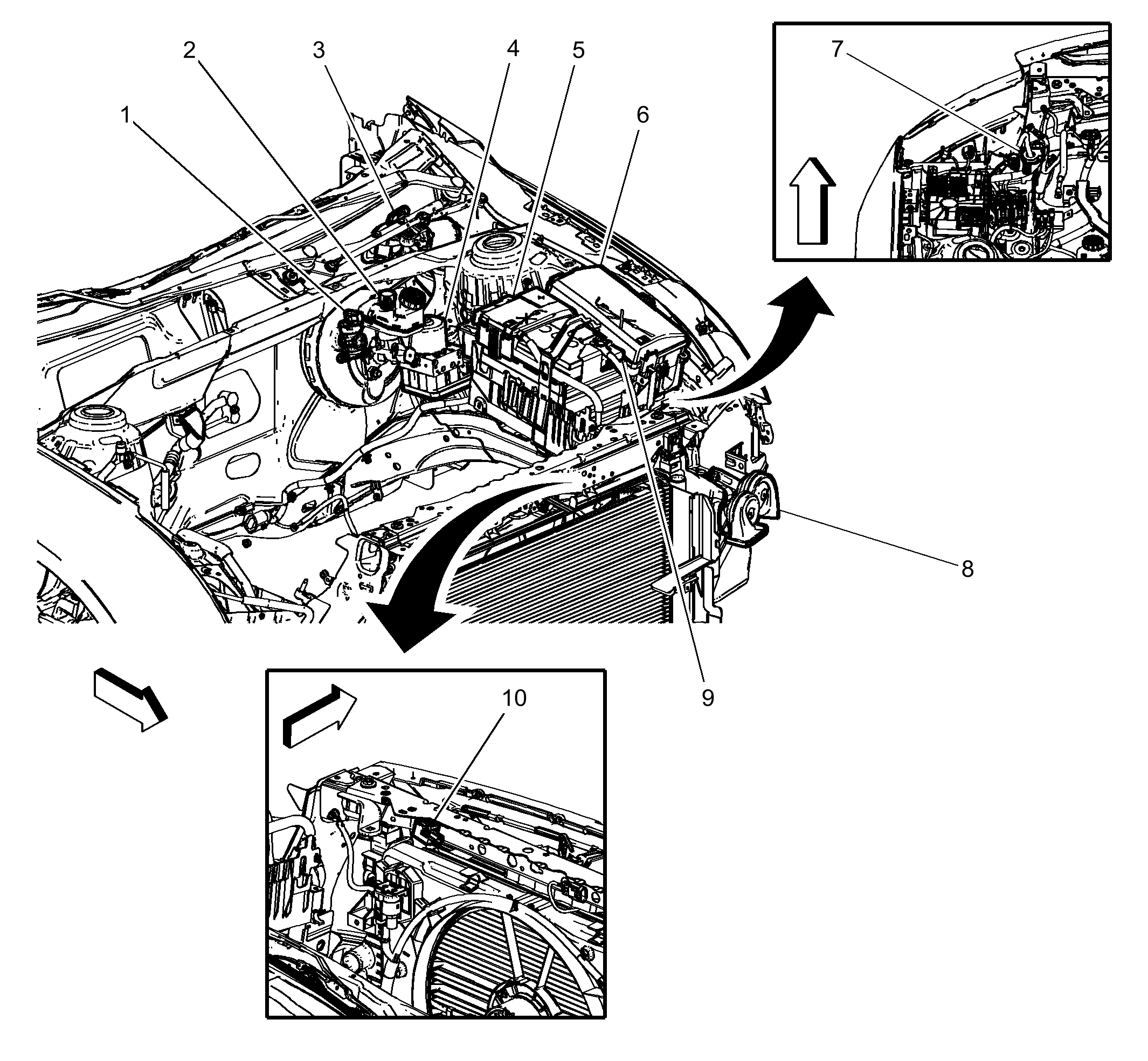

Left Side of Engine Compartment Components
Left Side of Engine Compartment Components
| Items |
|---|
| 1: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor |
| 2: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 3: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 4: K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
| 5: X50D Fuse Block - Battery X50D Fuse Block - Battery X4 X4 , X50D Fuse Block - Battery LBS with M36/LDD with KL9 , X50D Fuse Block - Battery X3 , X50D Fuse Block - Battery X5 (LUW) and X50D Fuse Block - Battery X6 |
| 6: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , X50A Fuse Block - Underhood X2 , X50A Fuse Block - Underhood X3 (LUV) X3 , X50A Fuse Block - Underhood X3 (LUW/LWE) , X50A Fuse Block - Underhood X3 (LUZ) and X50A Fuse Block - Underhood X4 |
| 7: B18 Battery Current Sensor B18 Battery Current Sensor |
| 8: P12 Horn P12 Horn |
| 9: C1 Battery |
| 10: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
