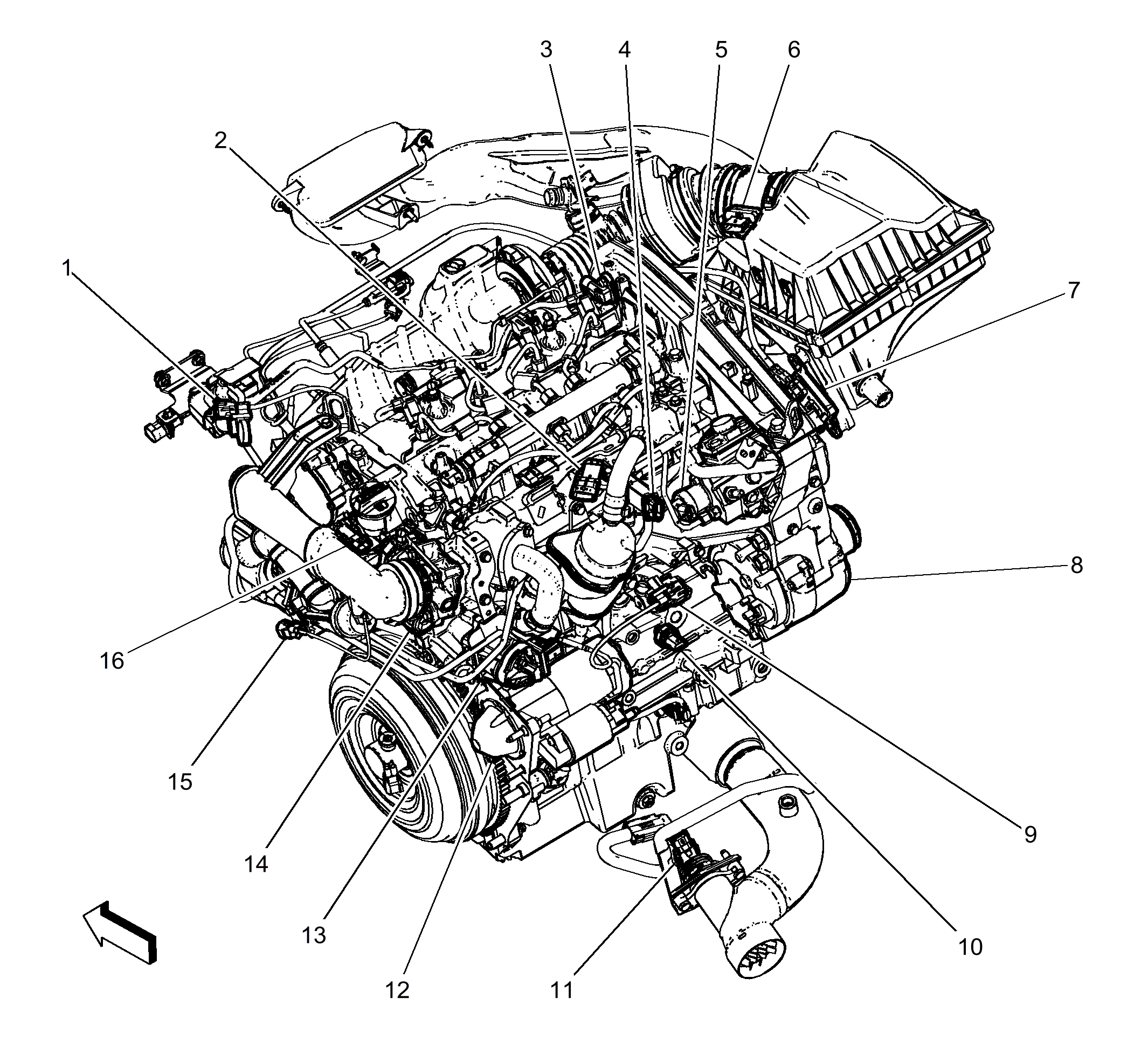

Right Side of Engine Components (LUZ)
Right Side of Engine Components (LUZ)
| Items |
|---|
| 1: B130B Exhaust Gas Recirculation Temperature Sensor 2 (LUZ) B130B Exhaust Gas Recirculation Temperature Sensor 2 |
| 2: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LUZ) |
| 3: B23 Camshaft Position Sensor (LUZ) B23 Camshaft Position Sensor |
| 4: B154 Diesel Particulate Filter Exhaust Differential Pressure Sensor (LUZ) B154 Diesel Particulate Filter Exhaust Differential Pressure Sensor |
| 5: Q18B Fuel Pressure Regulator 2 (LUZ) Q18B Fuel Pressure Regulator 2 |
| 6: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (LUZ) |
| 7: B195A Nitrogen Oxides Sensor 1 (LUZ) B195A Nitrogen Oxides Sensor 1 |
| 8: G13 Generator G13 Generator (LUZ) |
| 9: B131C Exhaust Temperature Sensor 3 (LUZ) B131C Exhaust Temperature Sensor 3 |
| 10: B37B Engine Oil Pressure Sensor (LUZ) B37B Engine Oil Pressure Sensor |
| 11: Q61 Reductant Injector (LUZ) Q61 Reductant Injector |
| 12: M64 Starter Motor M64 Starter Motor X1 (LUZ) |
| 13: B130A Exhaust Gas Recirculation Temperature Sensor 1 (LUZ) B130A Exhaust Gas Recirculation Temperature Sensor 1 |
| 14: Q38 Throttle Body Q38 Throttle Body (LUZ) |
| 15: B193B Charge Air Cooler Outlet Temperature Sensor (LUZ) B193B Charge Air Cooler Outlet Temperature Sensor |
| 16: B34A Engine Coolant Temperature Sensor 1 B34 Engine Coolant Temperature Sensor (LUZ) |
