Audio Disc Player and USB Receptacle Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

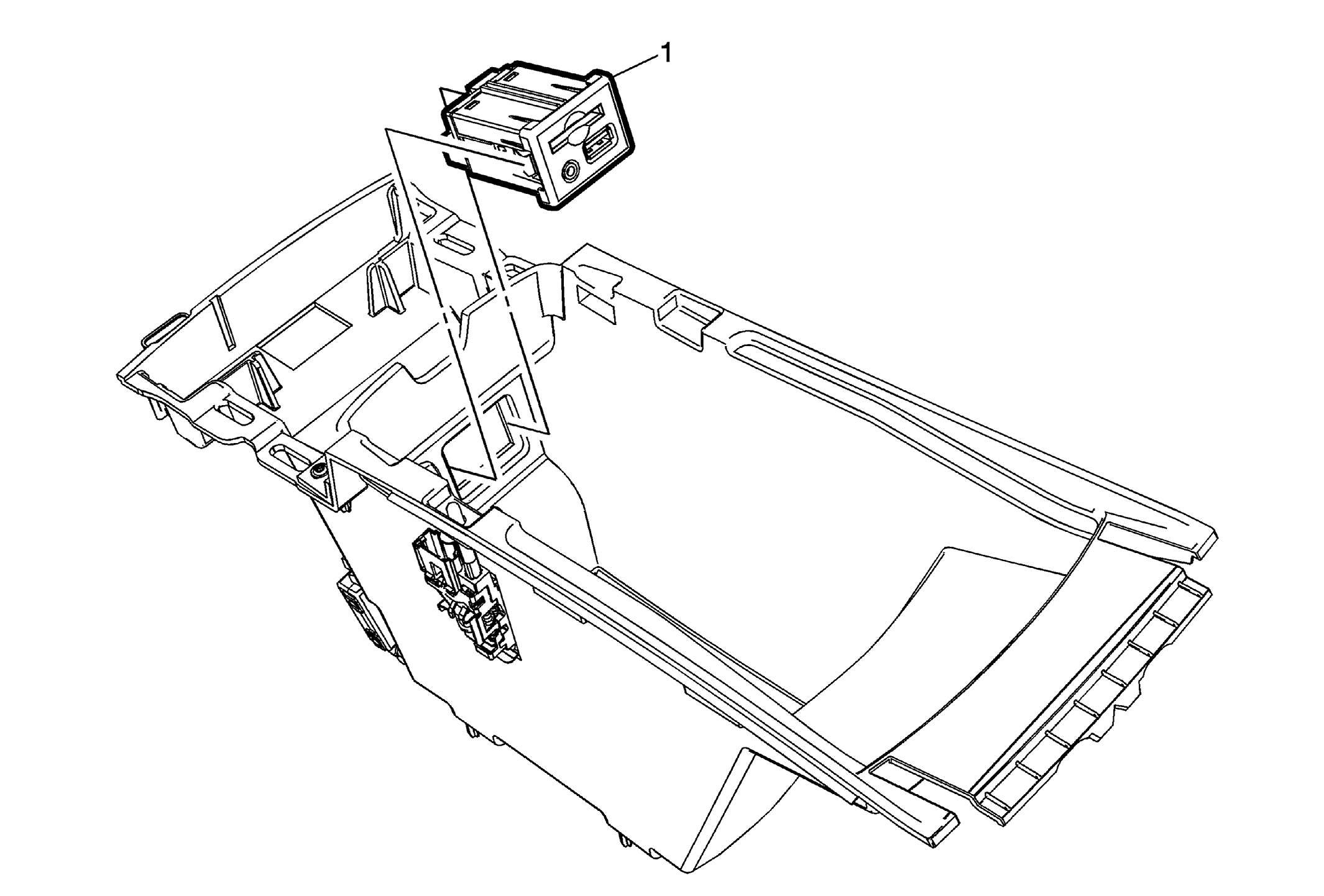

Fig 1: Audio Disc Player and USB Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Audio Disc Player and USB Receptacle Procedure Disconnect the electrical connector. Depress the tabs on the receptacle to remove.

Callout

Component Name

Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .

Audio Disc Player and USB Receptacle

Procedure

Disconnect the electrical connector.
Depress the tabs on the receptacle to remove.
