Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

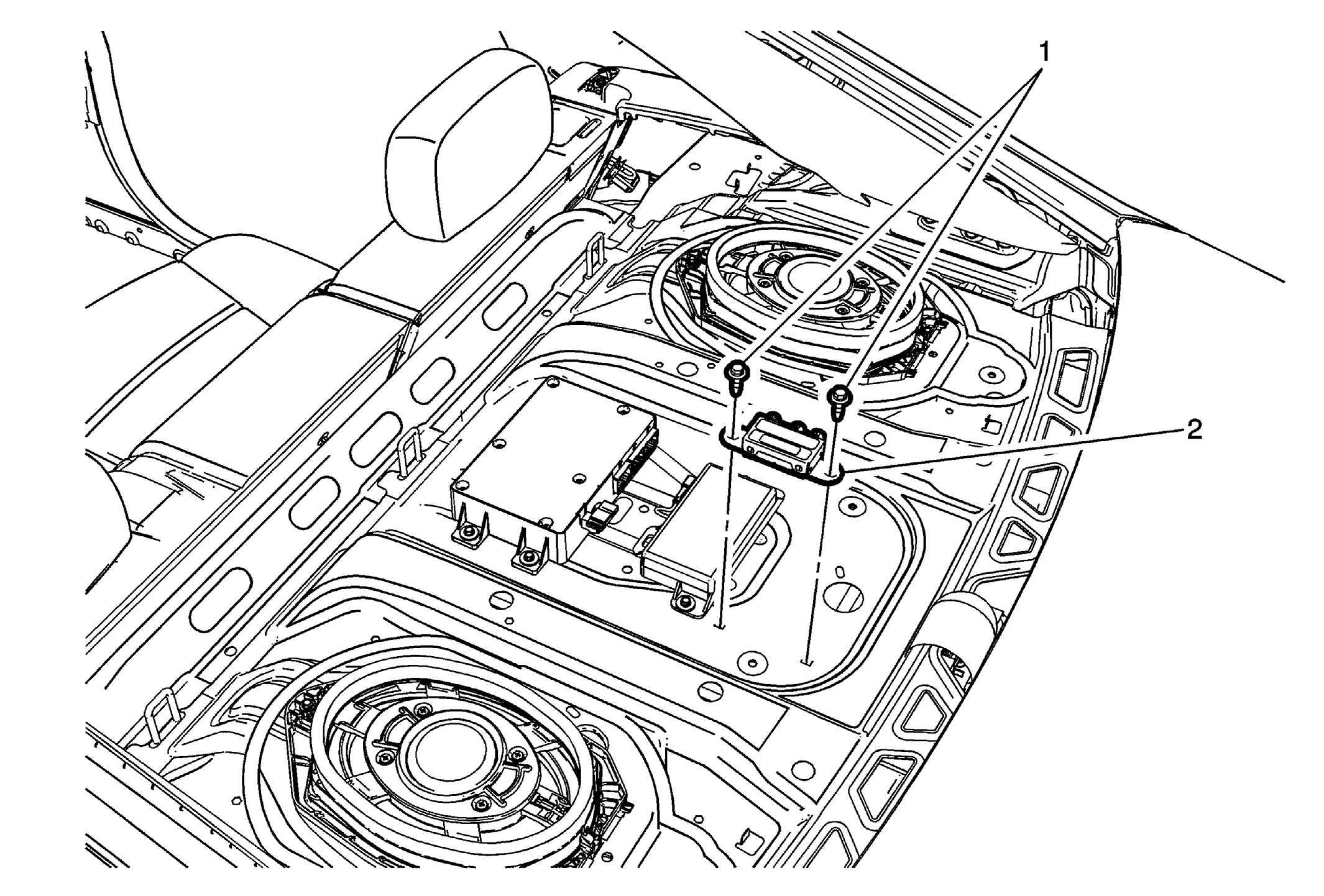

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement . Remove the rear window panel trim insulator, if equipped.
1	Navigation Signal Splitter Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Navigation Signal Splitter Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure

Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
Remove the rear window panel trim insulator, if equipped.

Navigation Signal Splitter Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Navigation Signal Splitter
Procedure
Disconnect the electrical connectors.
