Front of Engine Compartment Components

Items
1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
3: K17 Electronic Brake Control Module K17 Electronic Brake Control Module
4: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X3 X50D Fuse Block - Battery X4 (KL9)X50D Fuse Block - Battery X5 X50D Fuse Block - Battery X6 X50D Fuse Block - Battery X7 X50D Fuse Block - Battery X7 (without KL9)
5: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X3 X50A Fuse Block - Underhood X4 X50A Fuse Block - Underhood X5 (KL9)X50A Fuse Block - Underhood X6
6: B110 Battery Sensor Module (KL9) B110 Battery Sensor Module B110 Battery Sensor Module X2 (KL9)
7: B18 Battery Current Sensor B18 Battery Current Sensor KL9 B18 Battery Current Sensor
8: C1 Battery C1 Battery C1 Battery - (Battery Negative) (without KL9)C1 Battery
9:X55AG Fuse Holder - Battery Sensor (KL9) X55AG Fuse Holder - Battery Sensor
10: K20 Engine Control Module K20 Engine Control Module X1 K20 Engine Control Module X2 K20 Engine Control Module X3
11:K125 Dual Battery Control Module (KL9) K125 Dual Battery Control Module
12: B19B Brake Booster Vacuum Sensor (FX3) B19B Brake Booster Vacuum Sensor
13: K43 Power Steering Control Module K43 Power Steering Control Module X1 K43 Power Steering Control Module X2 K43 Power Steering Control Module X1

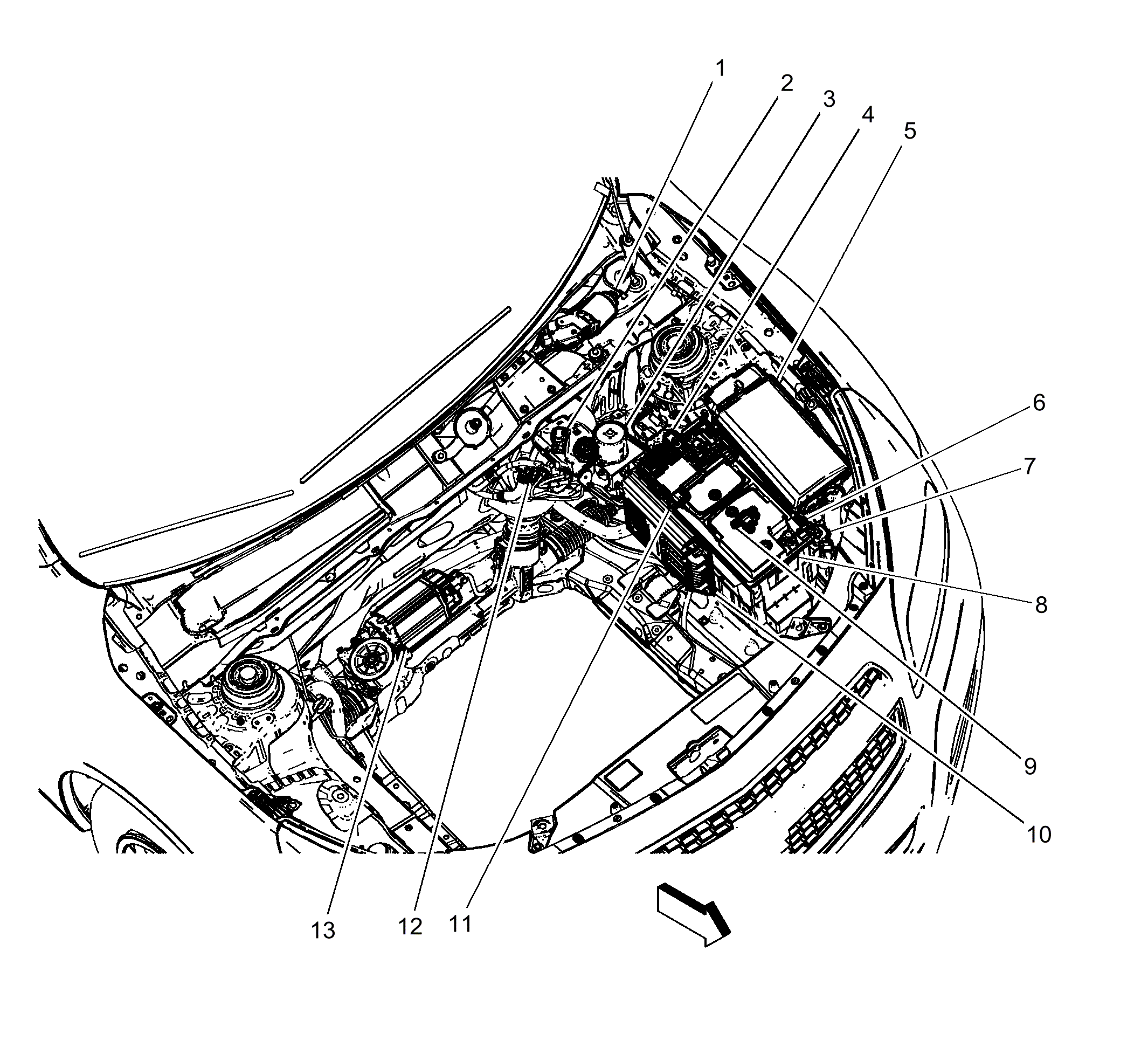

Fig 1: Front of Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY
