Powertrain Expansion Bus (LML)

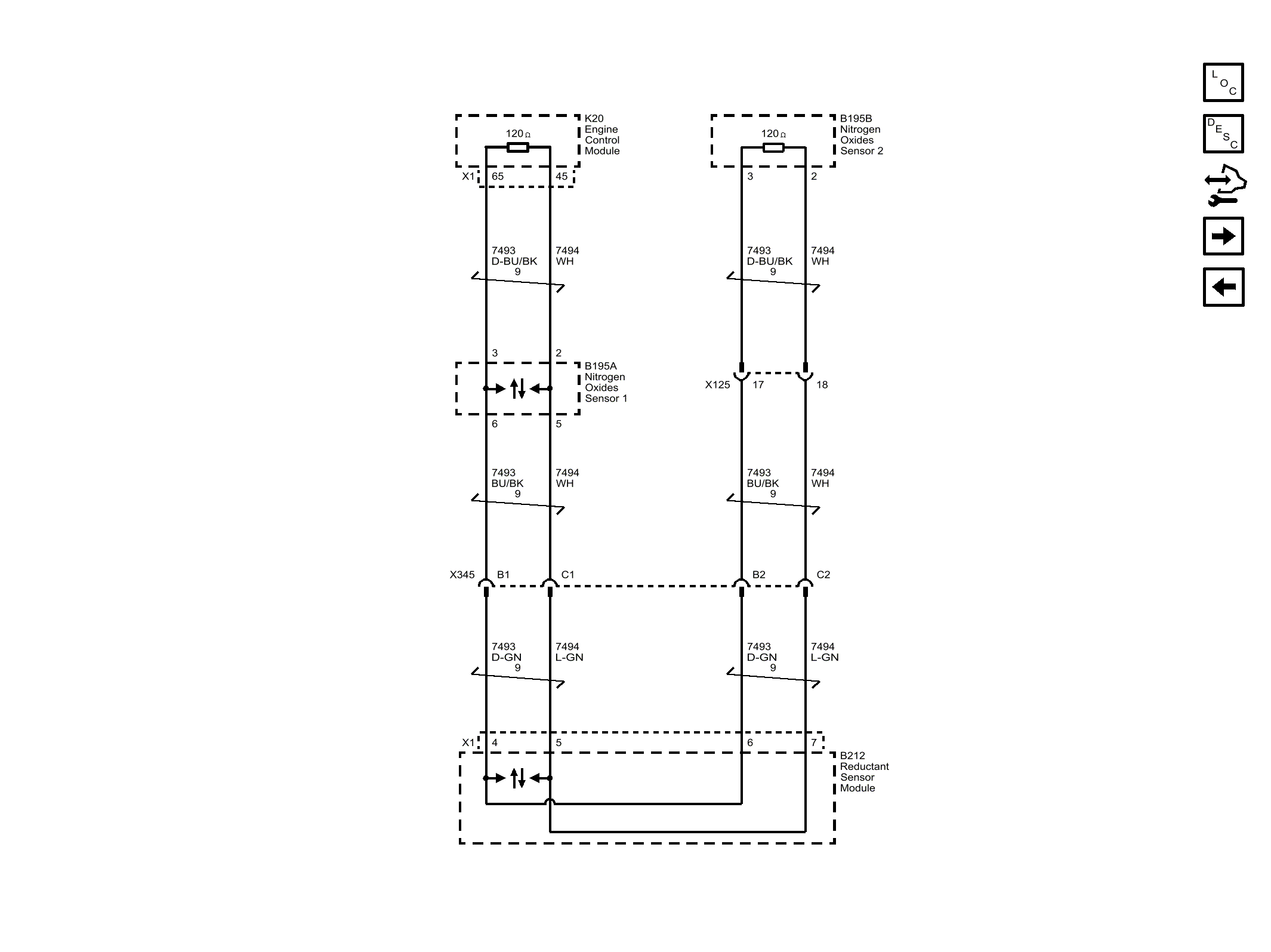

Fig 1: Powertrain Expansion Bus (LML)
Courtesy of GENERAL MOTORS COMPANY
