Multimedia Receptacle Replacement

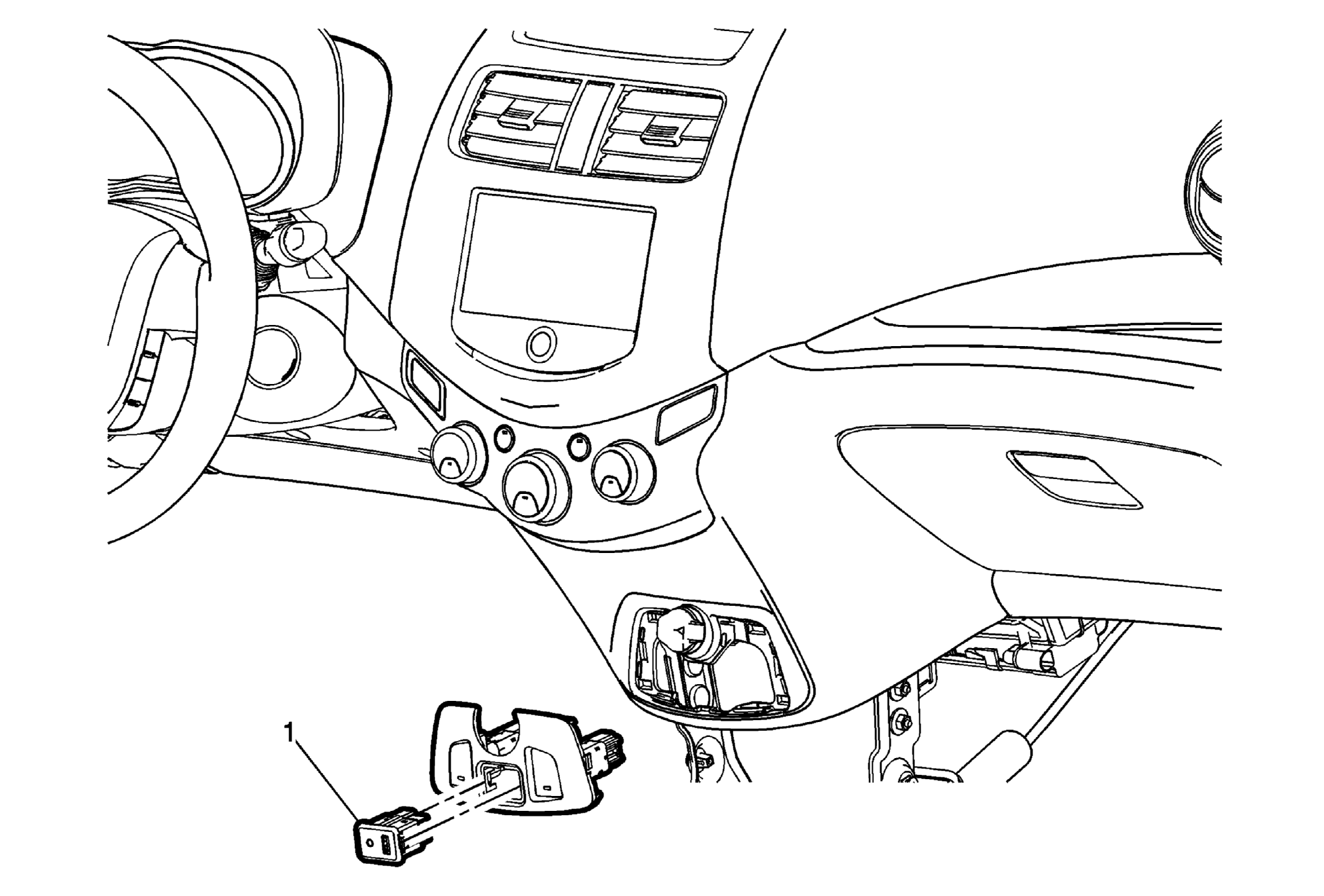

Fig 1: Multimedia Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat heater switch bezel. Refer to Front Seat Heater Switch Bezel Replacement .
1	Multimedia Receptacle Procedures Use a flat-bladed tool to release the switch from the mount plate. Disconnect the electrical connector from the switch assembly.

Callout

Component Name

Preliminary Procedure
Remove the front seat heater switch bezel. Refer to Front Seat Heater Switch Bezel Replacement .

Multimedia Receptacle

Procedures
