Installation Procedure

  1. Install the brake pressure modulator valve bracket (1).

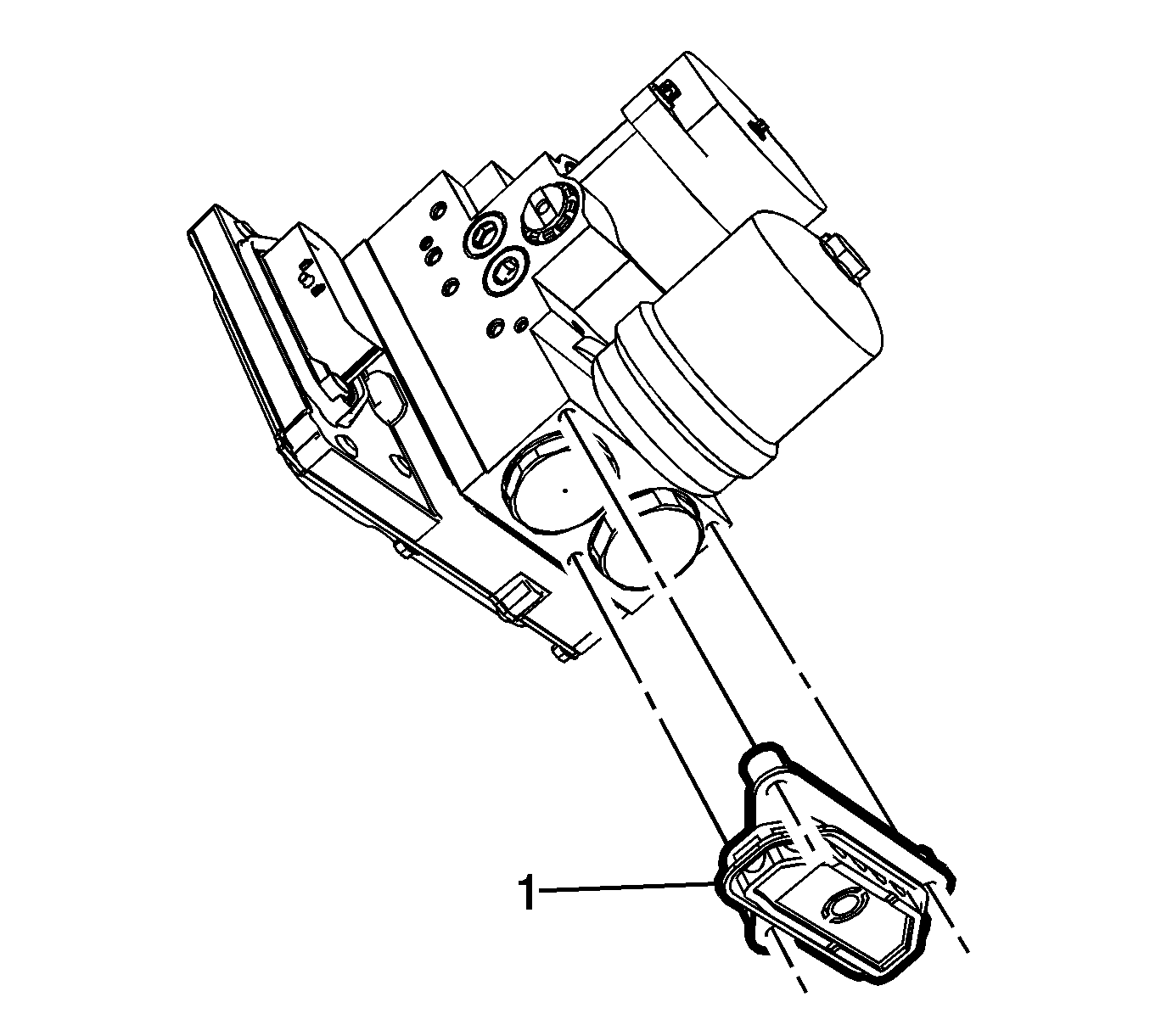

    Fig 1: Brake Pressure Modulator Valve Bracket
    GM3266917Courtesy of GENERAL MOTORS COMPANY
  2. Install the brake pressure modulator valve bracket bolts (1) and tighten to 3 N.m (27 lb in).

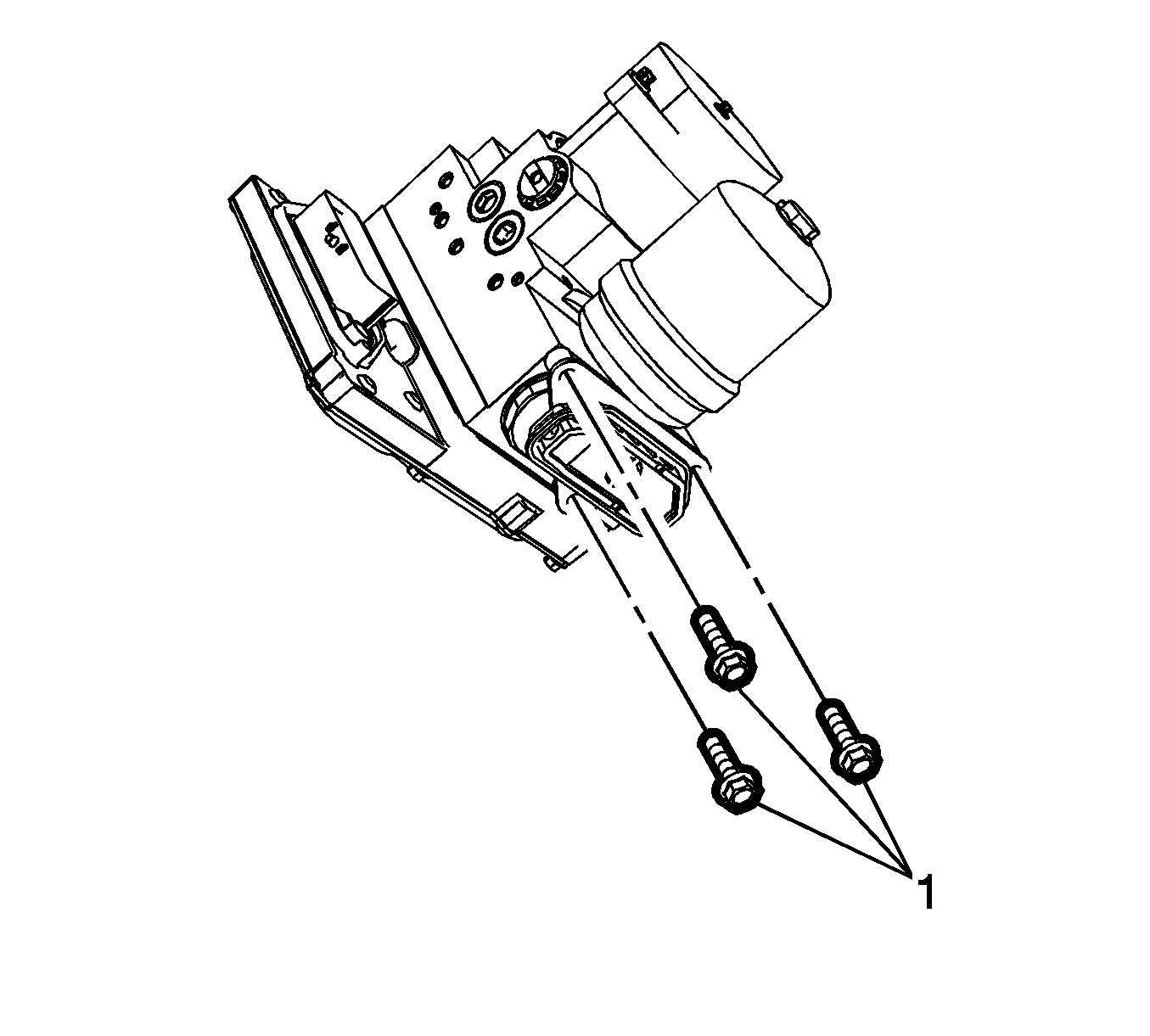

    Fig 2: Brake Pressure Modulator Valve Bracket Bolts
    GM3266916Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Install the electronic brake and traction control module bracket. Refer to Electronic Brake and Traction Control Module Bracket Replacement .
