Back Of Engine Compartment

Back Of Engine Compartment

Items
1: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
2: B1C A/C Low Side Pressure Sensor B1C A/C Low Side Pressure Sensor
3: G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid/EV Electronics Coolant Pump
4: G37 Hybrid/EV Battery Pack Coolant Pump G37 Hybrid/EV Battery Pack Coolant Pump

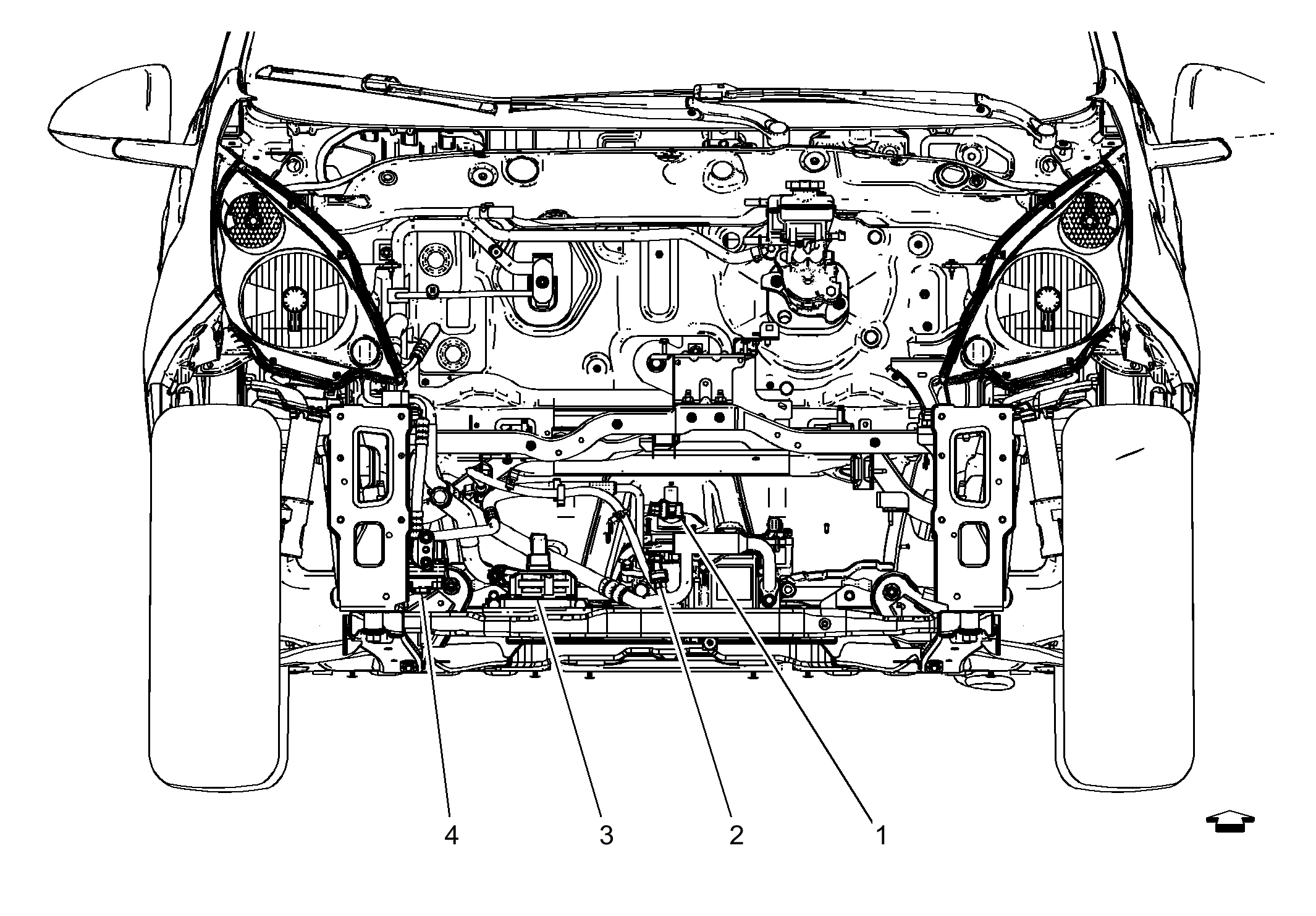

Fig 1: Back of Engine Compartment
GM3216441Courtesy of GENERAL MOTORS COMPANY
