Front of Engine Compartment

Front of Engine Compartment

Items
1: B59L Front Impact Sensor - Left (D90/AYF/AW7) B59L Front Impact Sensor - Left
2: B59R Front Impact Sensor - Right (D90/AYF/AW7) B59R Front Impact Sensor - Right
3: B258 Hybrid/EV Battery Coolant Level Switch B258 Hybrid/EV Battery Coolant Level SwitchB258 Hybrid/EV Battery Coolant Level Switch
4: G10 Cooling Fan Motor G10 Cooling Fan Motor
5: B202 Hybrid/EV Electronics Coolant Temperature Sensor B202 Hybrid/EV Electronics Coolant Temperature Sensor

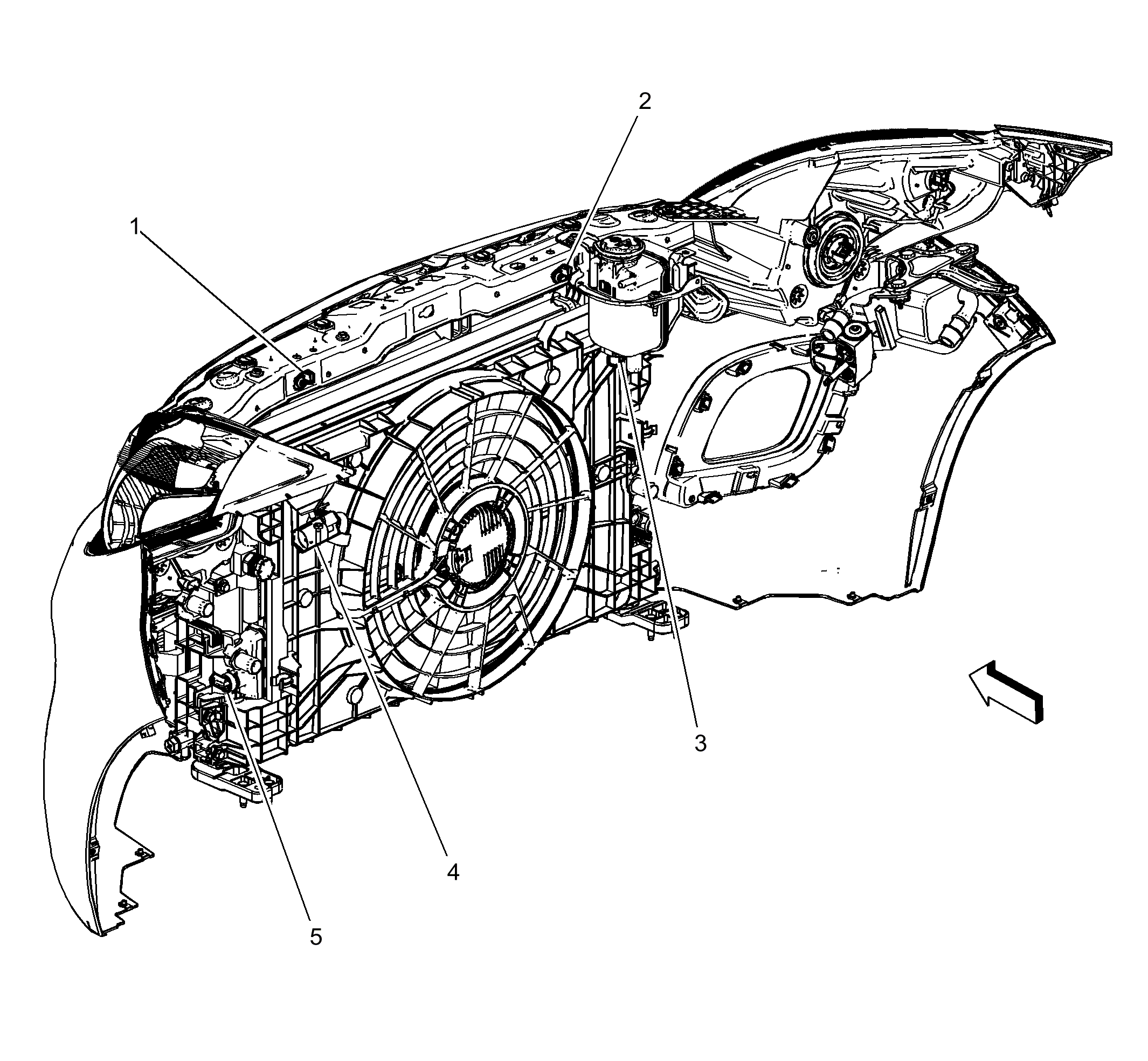

Fig 1: Front Of Engine Compartment
GM3216411Courtesy of GENERAL MOTORS COMPANY
