Front of Hybrid/EV Drive Unit

Items
1: T6 Power Inverter Module T6 Power Inverter Module X1 T6 Power Inverter Module X2 T6 Power Inverter Module X3 T6 Power Inverter Module X4 T6 Power Inverter Module X5 T6 Power Inverter Module X6 T6 Power Inverter Module X7 T6 Power Inverter Module X8
2:T24 Battery Charger - DC T24 Battery Charger - DC X1 T24 Battery Charger - DC X2 T24 Battery Charger - DC X3 T24 Battery Charger - DC X4 T24 Battery Charger - DC X5 T24 Battery Charger - DC X6 T24 Battery Charger - DC X7 T24 Battery Charger - DC X8 T6 Power Inverter Module X9
3: F103 Power Inverter Module Assembly Cable Cover F103 Power Inverter Module Assembly Cable Cover
4: B135 Coolant Heater Temperature Sensor B135 Coolant Heater Temperature Sensor
5: K10 Coolant Heater Control Module K10 Coolant Heater Control Module X1 K10 Coolant Heater Control Module X2
6: K20 Engine Control Module K20 Engine Control Module X1 K20 Engine Control Module X2 K20 Engine Control Module X3
7: T18 Battery Charger T18 Battery Charger X1 T18 Battery Charger X3 T18 Battery Charger X4
8: G1 A/C Compressor G1 A/C Compressor X1 G1 A/C Compressor X2
9: Q65 Hybrid/EV Battery Pack Coolant Control Valve Q65 Hybrid/EV Battery Pack Coolant Control Valve
10: K1 14V Power Module K1 14V Power Module X1 K1 14V Power Module X2 K1 14V Power Module X3 K1 14V Power Module X4

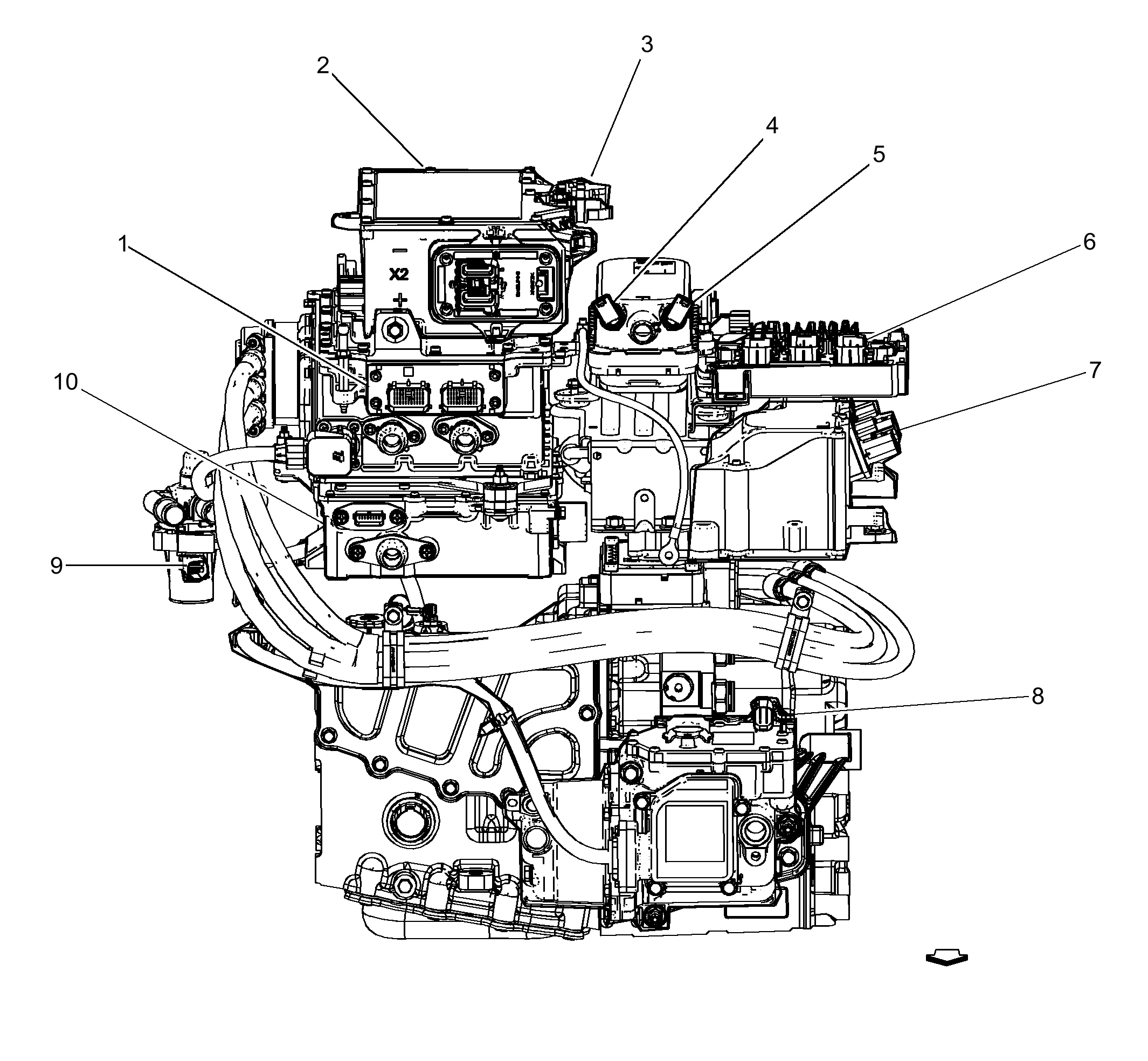

Fig 1: Front of Hybrid/EV Drive Unit

Courtesy of GENERAL MOTORS COMPANY
