Installation Procedure

Install the wheel speed sensor (2) to the knuckle.

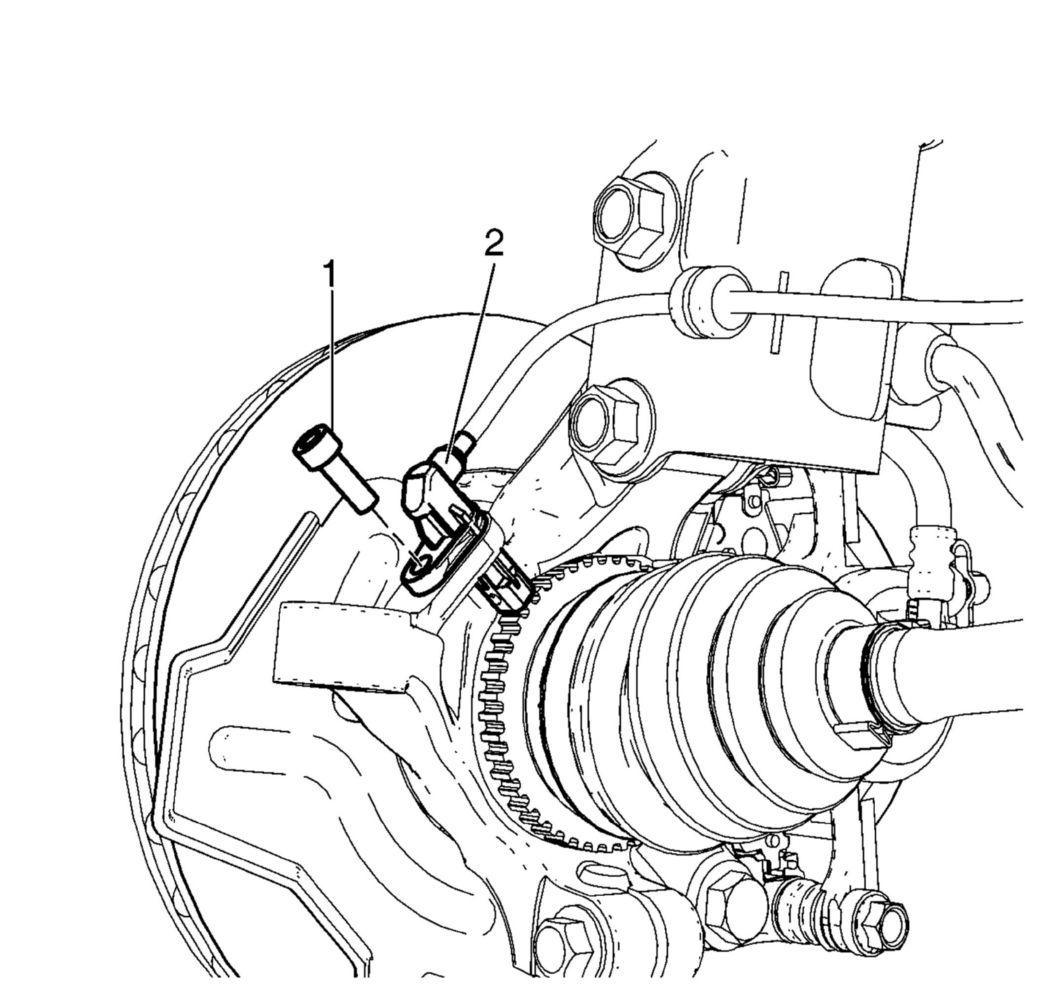

Fig 1: Wheel Speed Sensor To Knuckle Retaining Bolt
Courtesy of GENERAL MOTORS COMPANY
Install the wheel speed sensor to knuckle retaining bolt (1) and tighten to 8.5 N.m (75 lb in).
CAUTION: Refer to Fastener Caution .
Attach the wheel speed sensor harness to the front strut mounted bracket (2).

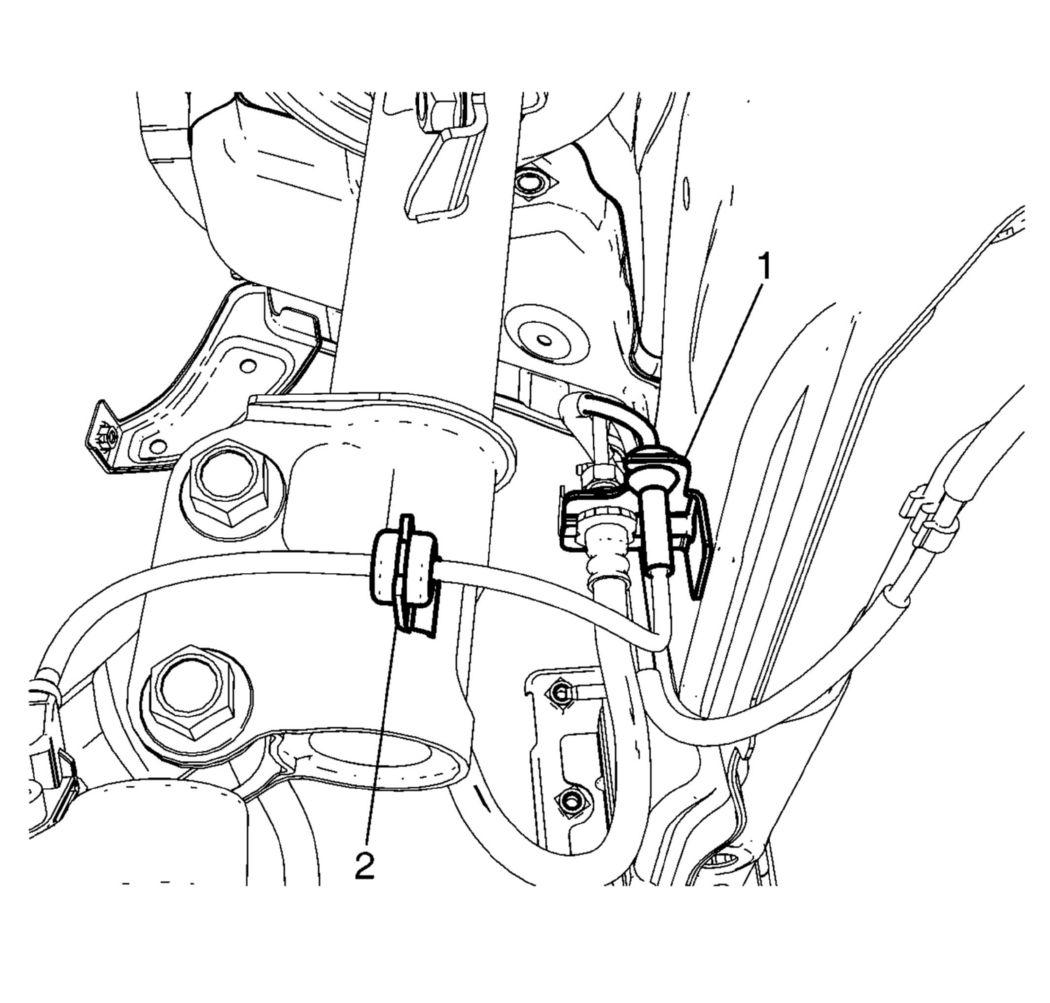

Fig 2: Wheel Speed Sensor Harness And Body Frame Mounted Bracket
Courtesy of GENERAL MOTORS COMPANY
Attach the wheel speed sensor harness to the body frame mounted bracket (1).
Connect the wheel speed sensor electrical connector (1).

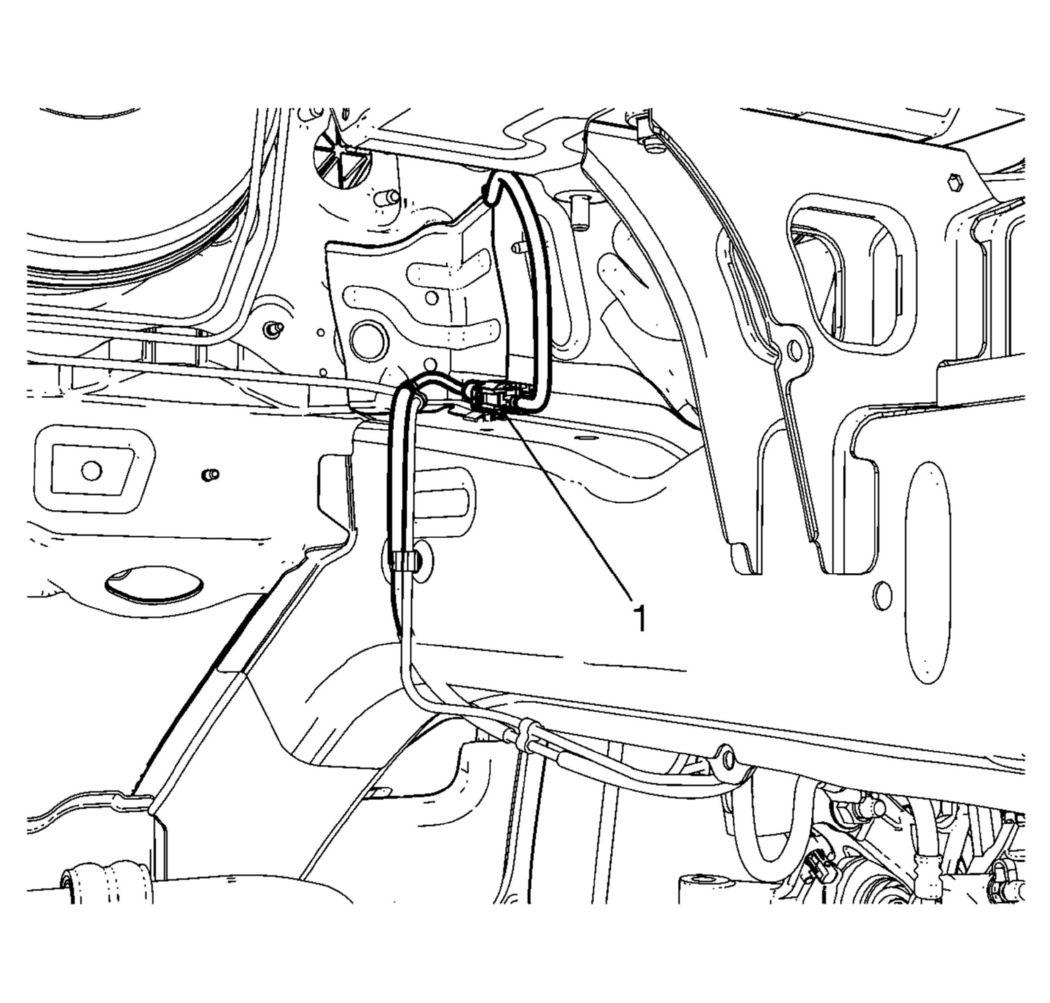

Fig 3: Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS COMPANY
Position the ECM and ECM bracket to the original place and install the ECM bracket bolts (1). Refer to Engine Control Module Replacement .

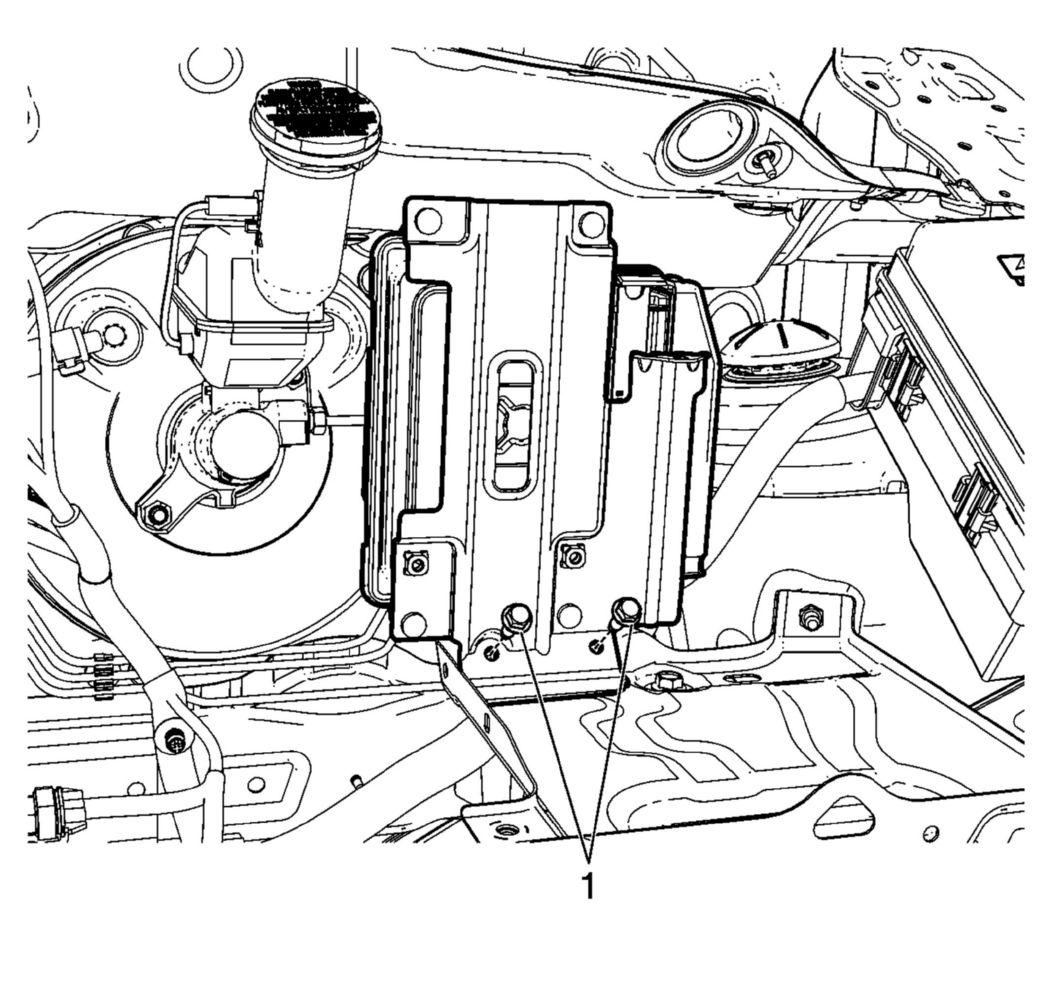

Fig 4: Engine Control Module (ECM) Bracket Bolts
Courtesy of GENERAL MOTORS COMPANY
Install the battery. Refer to Battery Replacement .
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
