Steering Column Components

Steering Column Components

Items
1: K43 Power Steering Control Module (NJ1) K43 Power Steering Control Module X1K43 Power Steering Control Module X2K43 Power Steering Control Module X3K43 Power Steering Control Module X4
2: B137 Power Steering Shaft Torque Sensor (NJ1)
3: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
4: S82 Windshield Wiper/Washer Switch
5: X85 Steering Wheel Air Bag Coil (AYF or AY0) X85 Steering Wheel Air Bag Coil X1 (AYF)X85 Steering Wheel Air Bag Coil X2 (EF7/Z49)
6: K89 Immobilizer Control Module K89 Immobilizer Control Module
7: S39 Ignition Switch S39 Ignition Switch

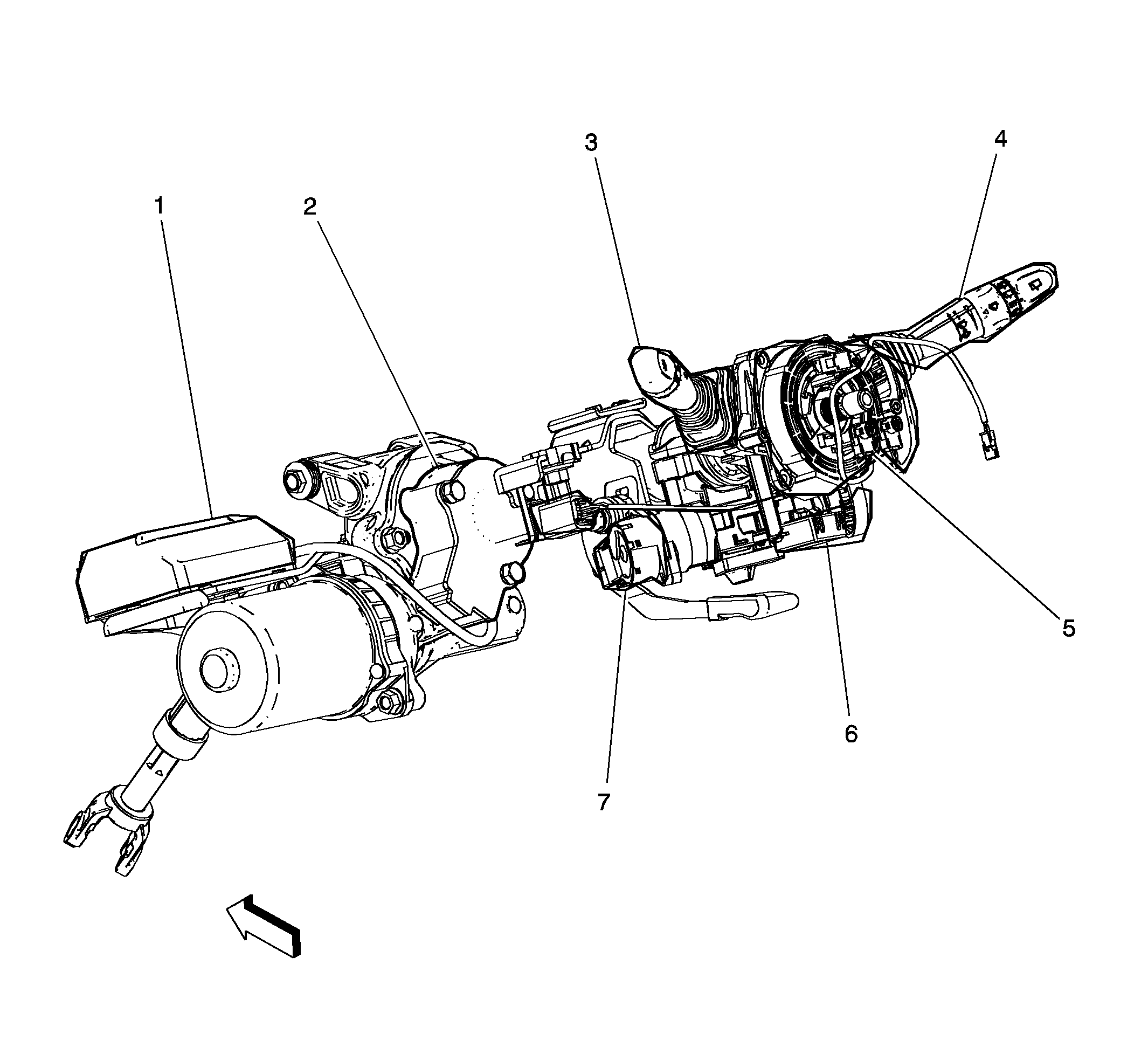

Fig 1: Steering Column Components
GM3627521Courtesy of GENERAL MOTORS COMPANY
