Installation Procedure

Install the wheel speed sensor (2) to the steering knuckle.

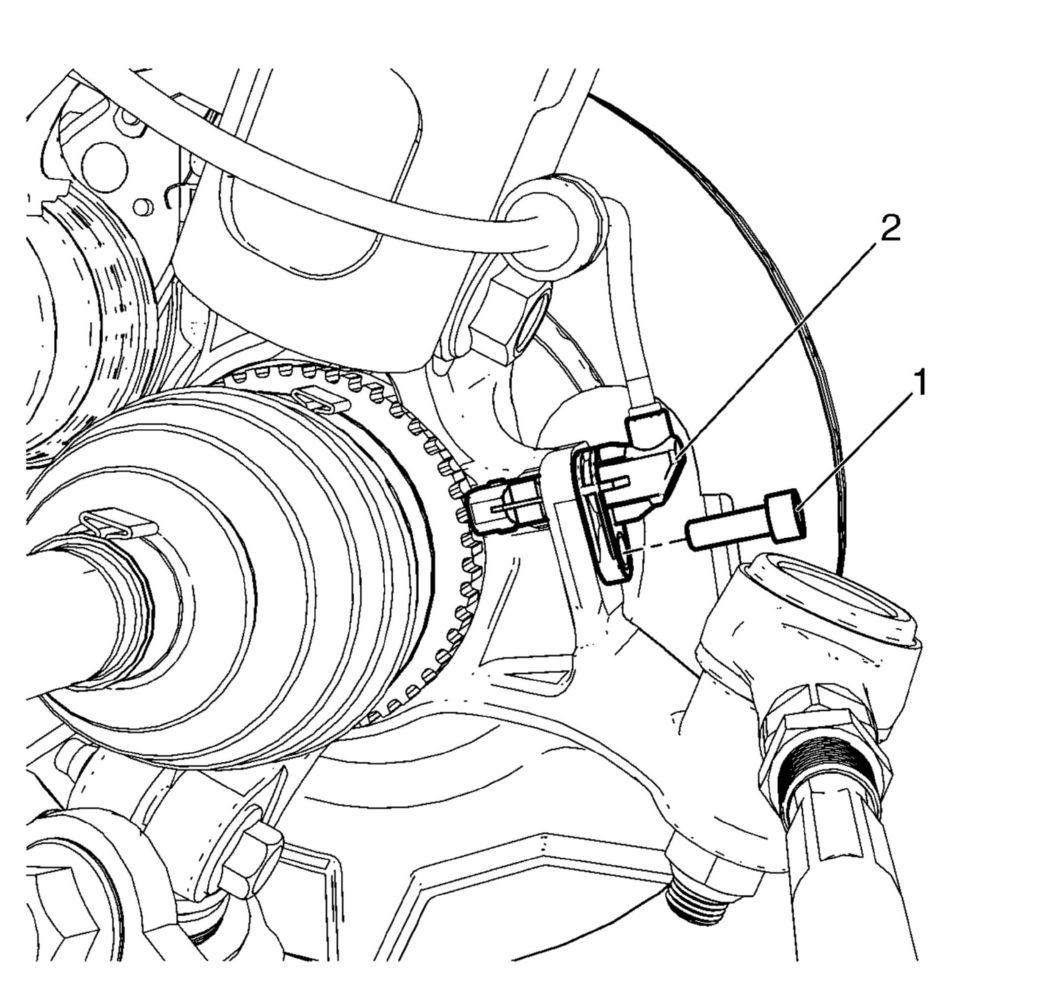

Fig 1: Wheel Speed Sensor And Knuckle Retaining Bolt
Courtesy of GENERAL MOTORS COMPANY
Install the wheel speed sensor to knuckle retaining bolt (1) and tighten to 8.5 N.m (75 lb in).
CAUTION: Refer to Fastener Caution .
Attach the wheel speed sensor harness to the front strut mounted bracket (2).

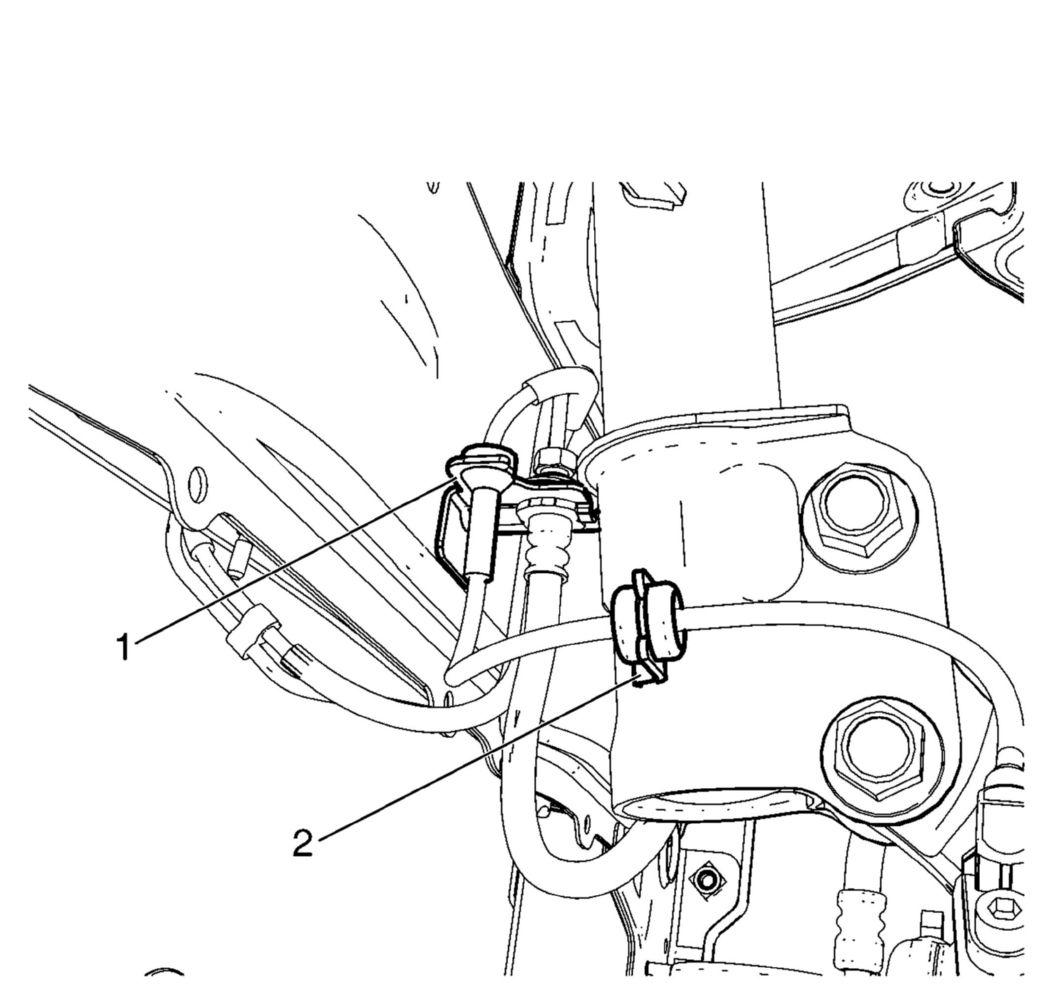

Fig 2: Body Frame Mounted Bracket
Courtesy of GENERAL MOTORS COMPANY
Attach the wheel speed sensor harness to the body frame mounted bracket (1).
Connect the wheel speed sensor electrical connector (1).

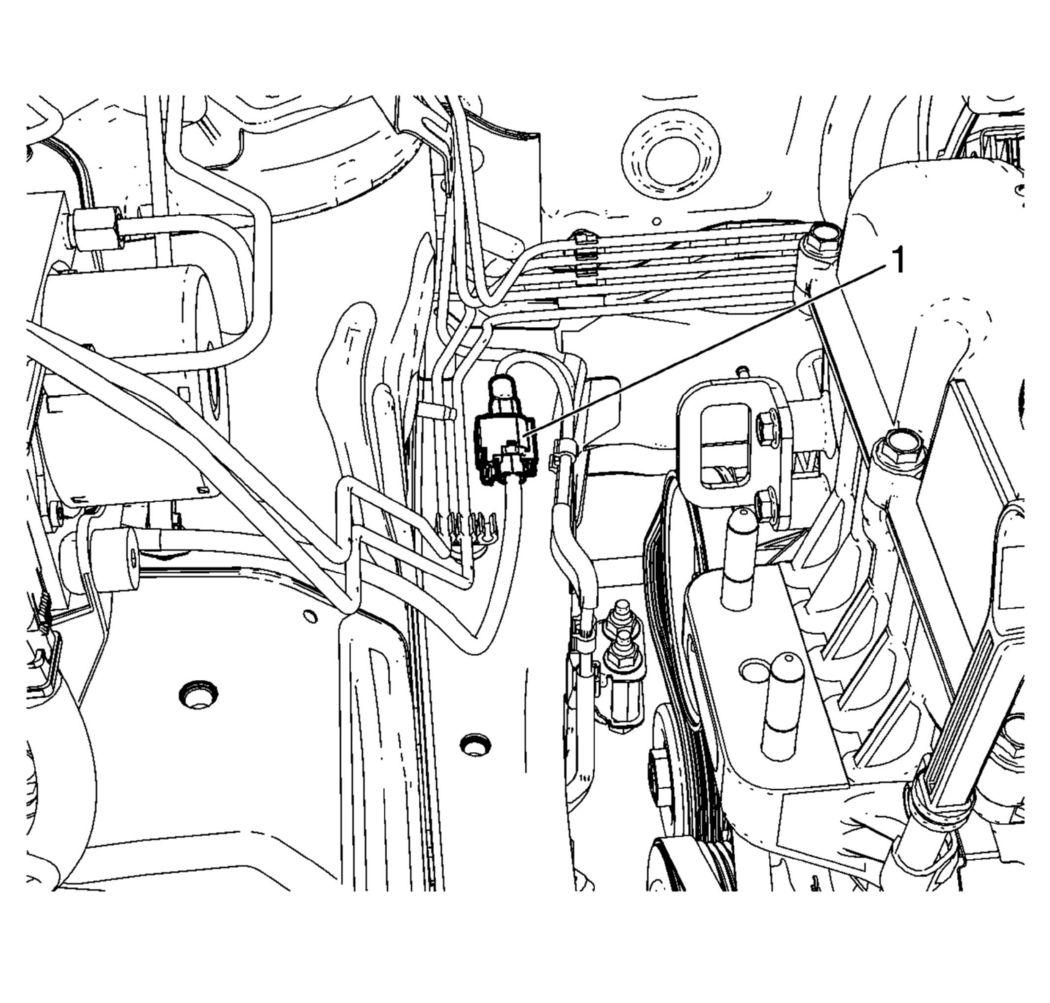

Fig 3: Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS COMPANY

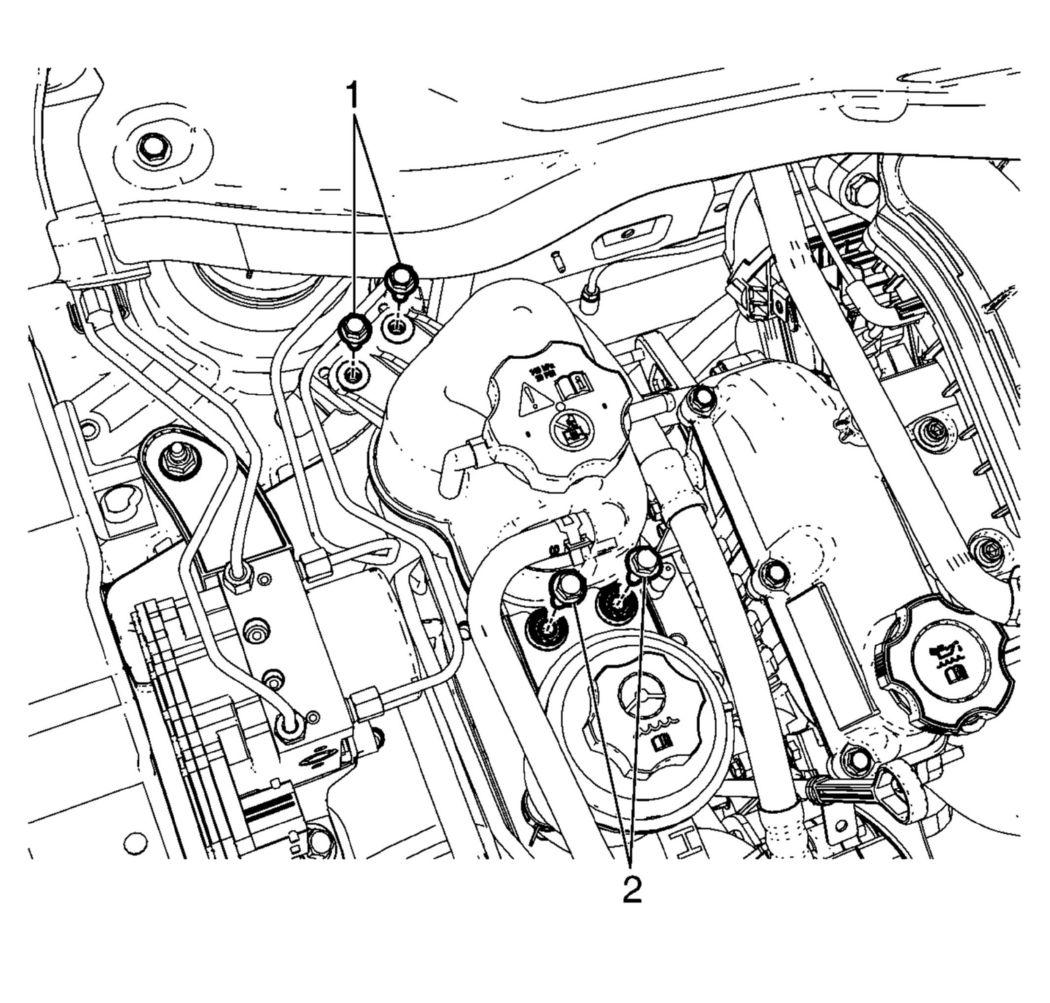

Position the radiator surge tank to the original place and install the radiator tank mounting blots (1). Refer to Radiator Surge Tank Replacement (LL0) and Radiator Surge Tank Replacement (LFM) .

Fig 4: Radiator Surge Tank Mounting Bolts
Courtesy of GENERAL MOTORS COMPANY
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
