Installation Procedure

  1. Install the wheel speed sensor (3) to the knuckle.

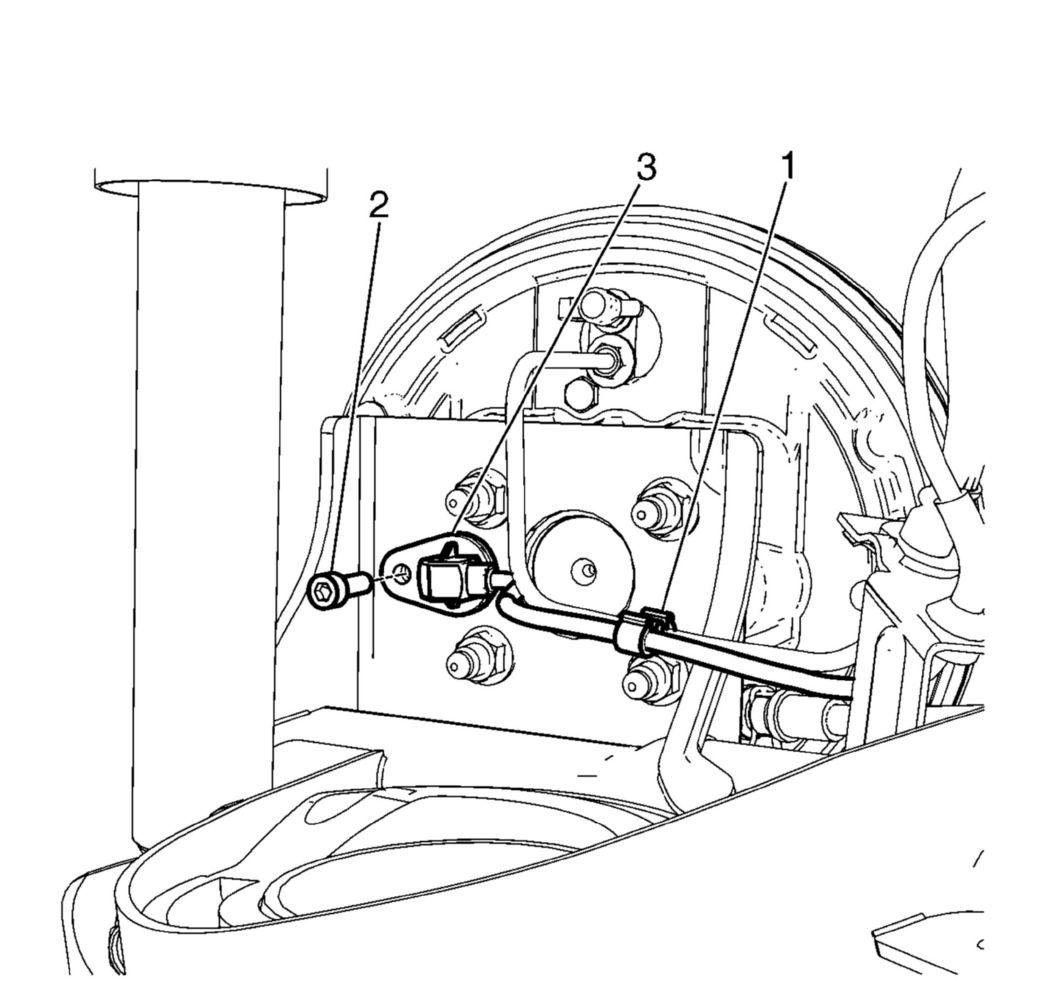

    Fig 1: Retaining Clip
    GM2308709Courtesy of GENERAL MOTORS COMPANY
  2. Install the wheel speed sensor to knuckle retaining bolt (2) and tighten to 8.5 N.m (75 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the wheel speed sensor harness to the retaining clip (1).
  4. Attach the wheel speed sensor harness to the rear axle mounted bracket (1).

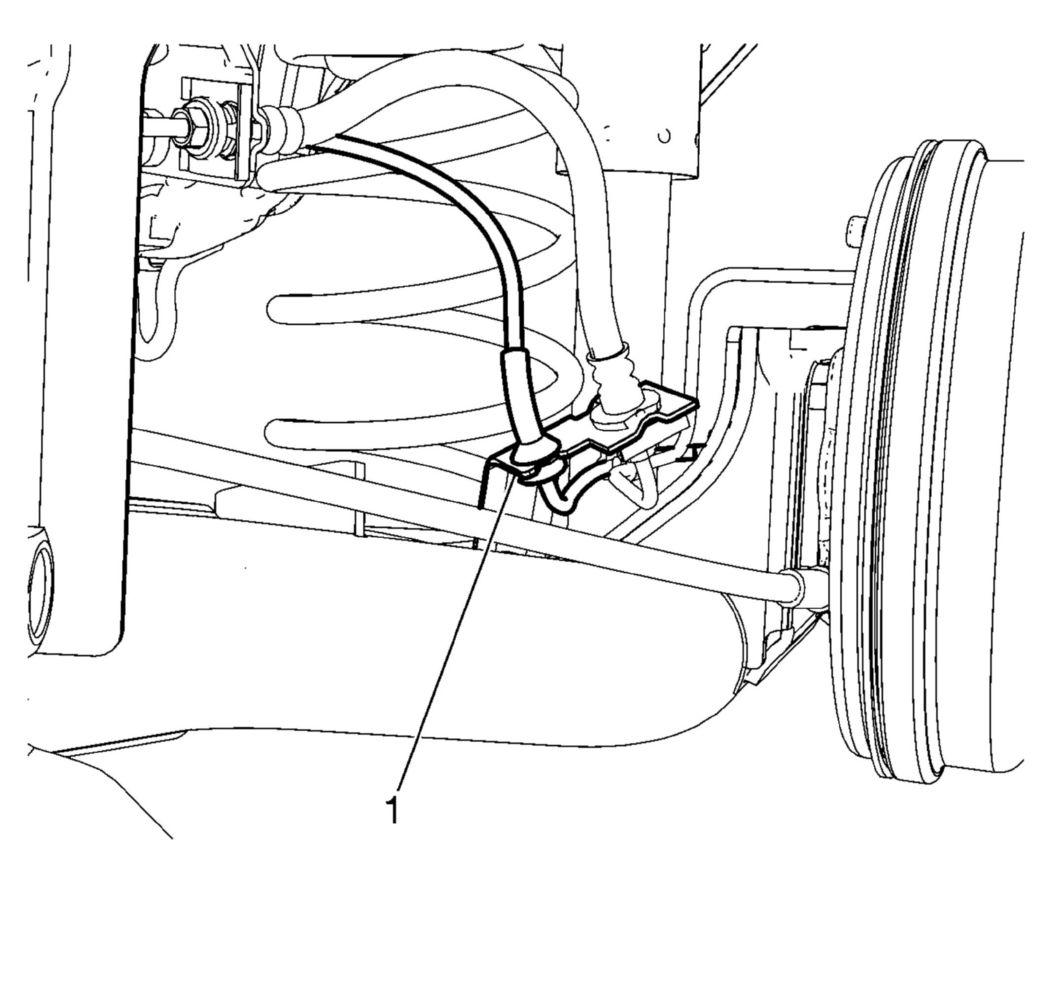

    Fig 2: Wheel Speed Sensor Harness And Rear Axle Mounted Bracket
    GM2308708Courtesy of GENERAL MOTORS COMPANY
  5. Attach the wheel speed sensor harness to from the body frame mounted bracket (2).

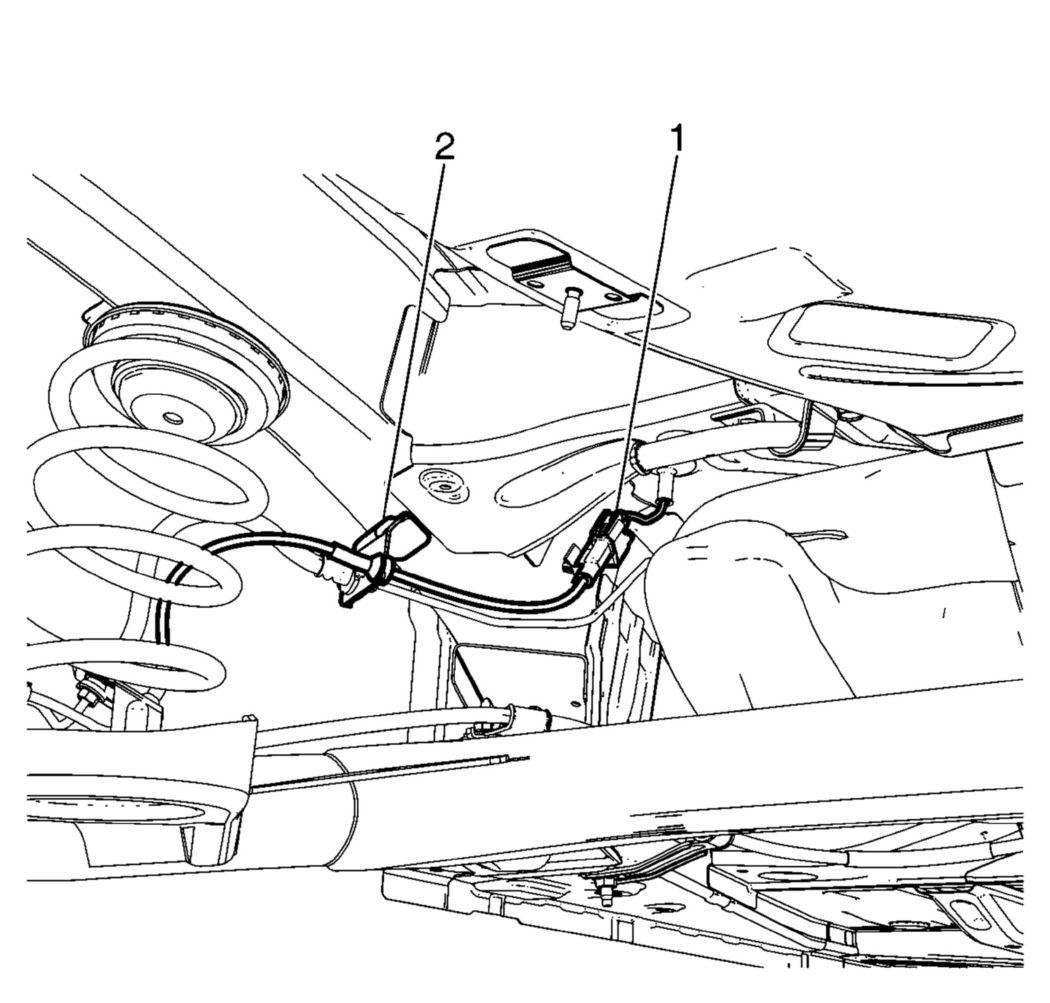

    Fig 3: Wheel Speed Sensor Electrical Connector
    GM2308707Courtesy of GENERAL MOTORS COMPANY
  6. Connect the wheel speed sensor electrical connector (1).
  7. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
