Vehicle Yaw Sensor Replacement

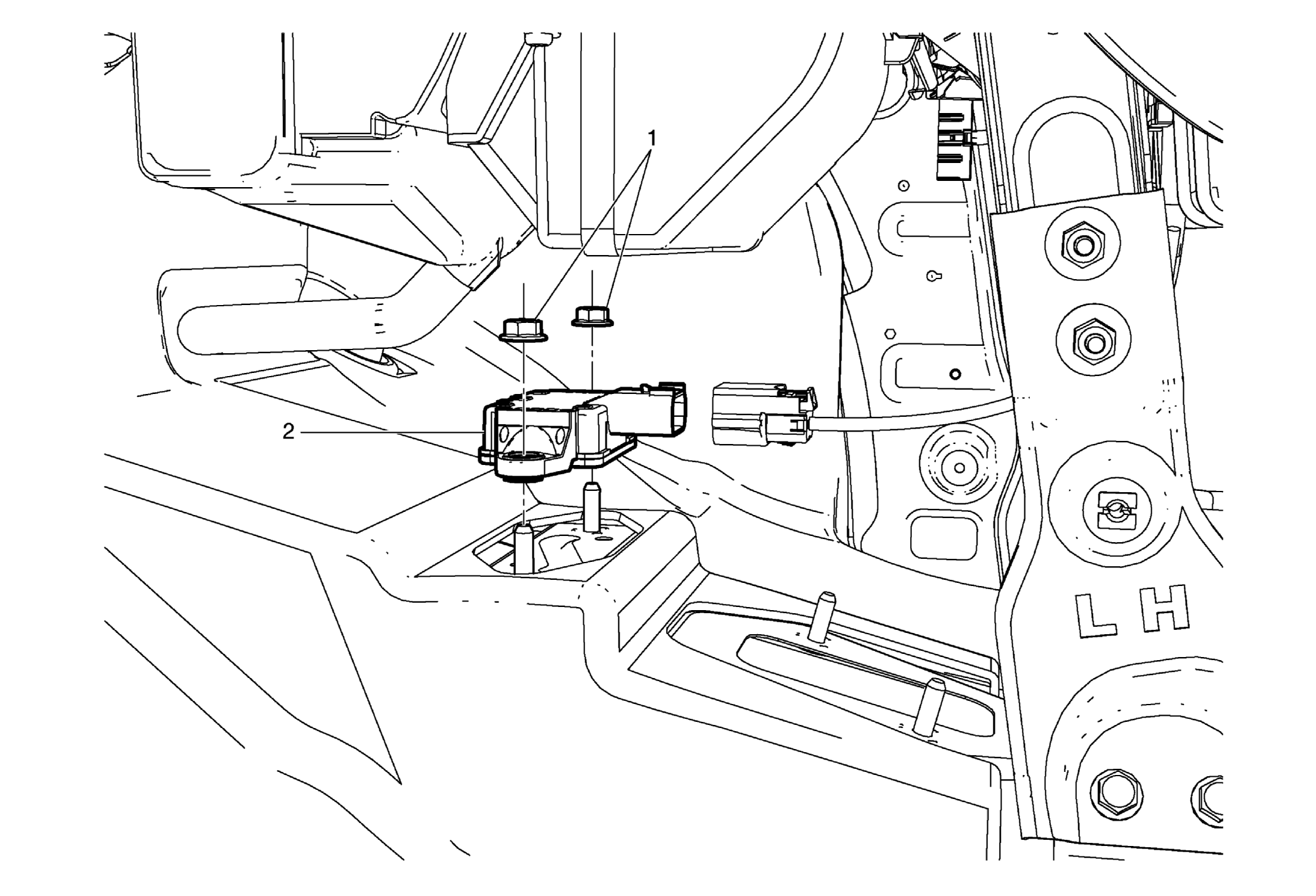

Fig 1: Vehicle Yaw Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement .
1	Vehicle Yaw Sensor Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Yaw Sensor Procedure Disconnect the electrical connector After the installation is complete, reset the yaw rate sensor. using the following procedure: Install a scan tool. Using the scan tool, calibrate the yaw rate sensor.

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement .

Vehicle Yaw Sensor Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Vehicle Yaw Sensor

Procedure

Disconnect the electrical connector
After the installation is complete, reset the yaw rate sensor. using the following procedure:
- Install a scan tool.
- Using the scan tool, calibrate the yaw rate sensor.
