Installation Procedure

  1. Install the battery.

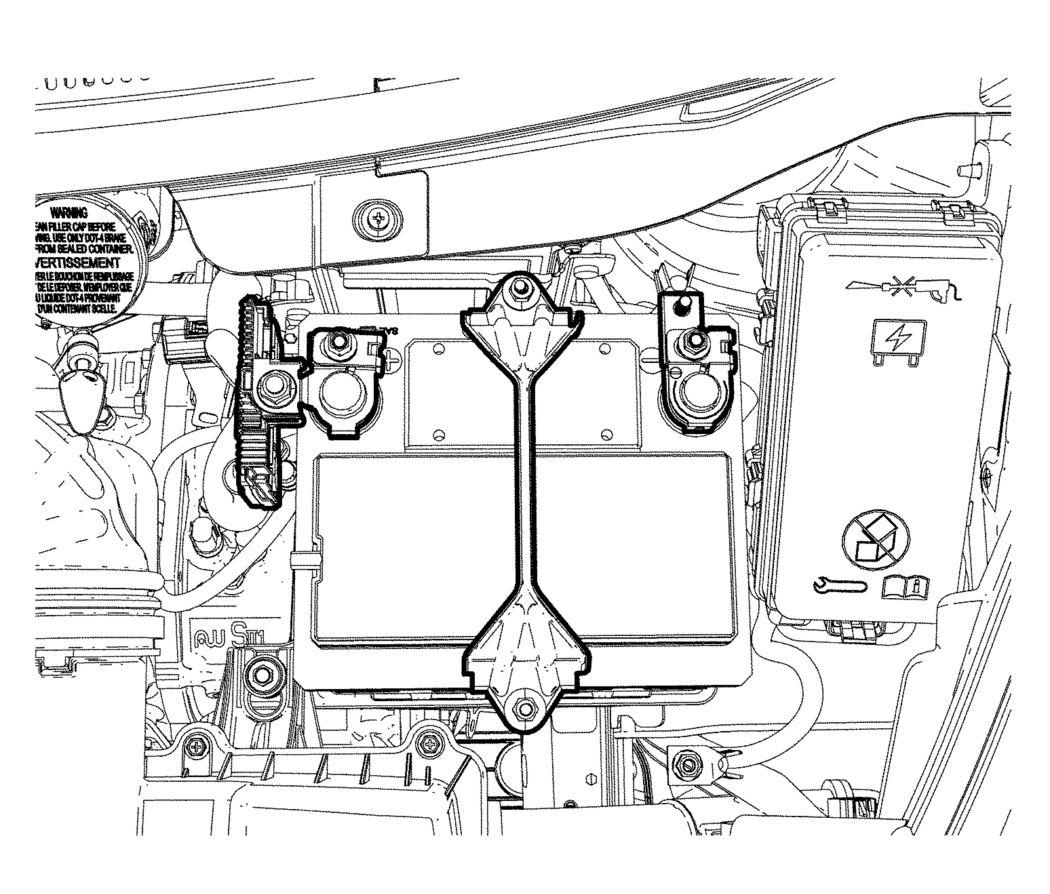

    Fig 1: Negative Battery Cable And Cable Nut
    GM2753206Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery holder and tighten the retaining nut to 6 N.m (53 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Connect the battery cable.
