Removal Procedure

  1. Remove the generator. Refer to Generator Replacement .
  2. Remove the 4 generator bracket retaining bolts (2).

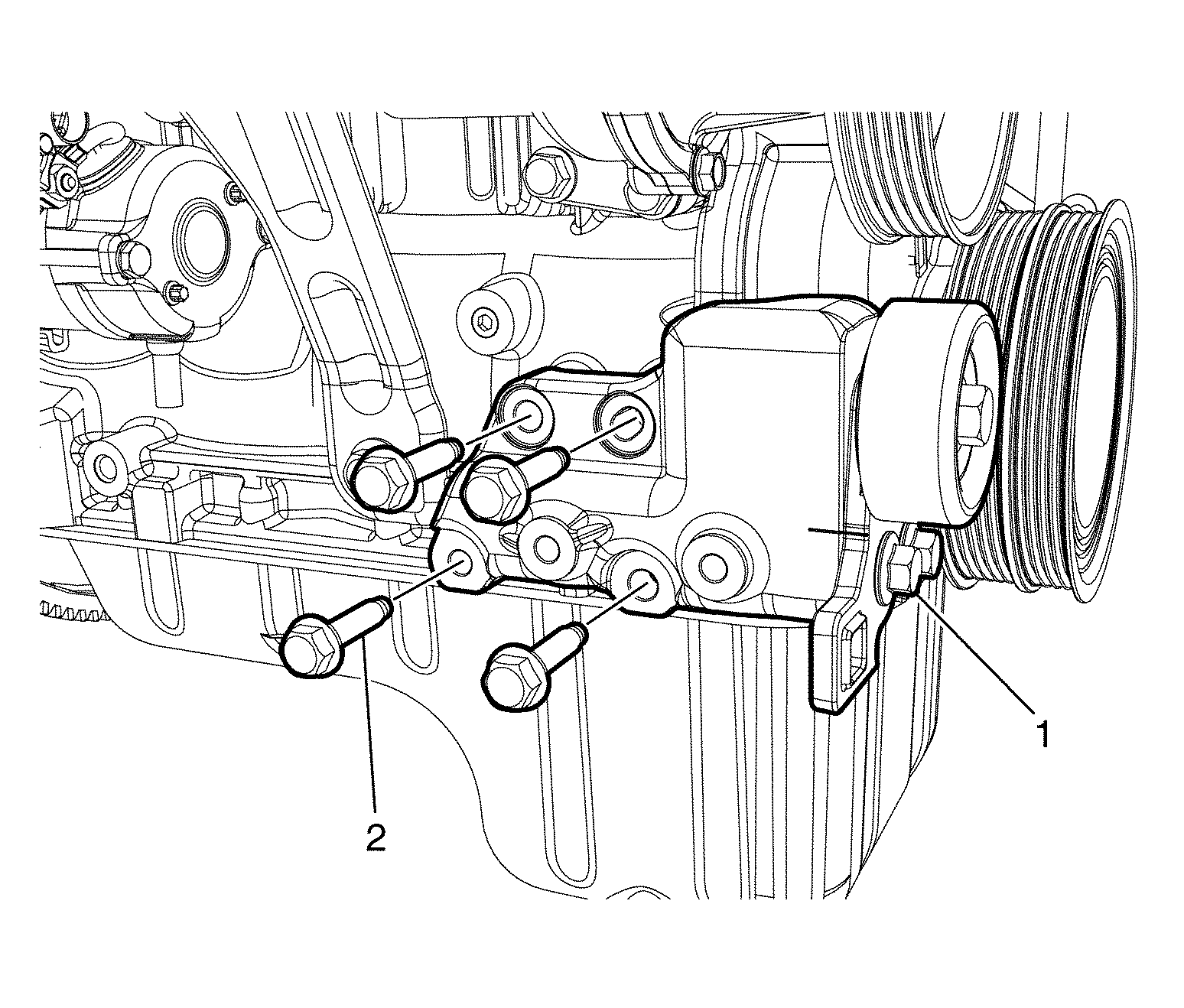

    Fig 1: Generator Bracket
    GM3416017Courtesy of GENERAL MOTORS COMPANY
  3. Remove the generator bracket (1).
