Installation Procedure

Install the battery current sensor (2) onto the battery negative cable (1) as shown.

Fig 1: Battery Current Sensor
Courtesy of GENERAL MOTORS COMPANY
Install the battery negative cable (2) to the frame rail and tighten the battery negative ground cable fastener (3) to 9 N.m (80 lb in).

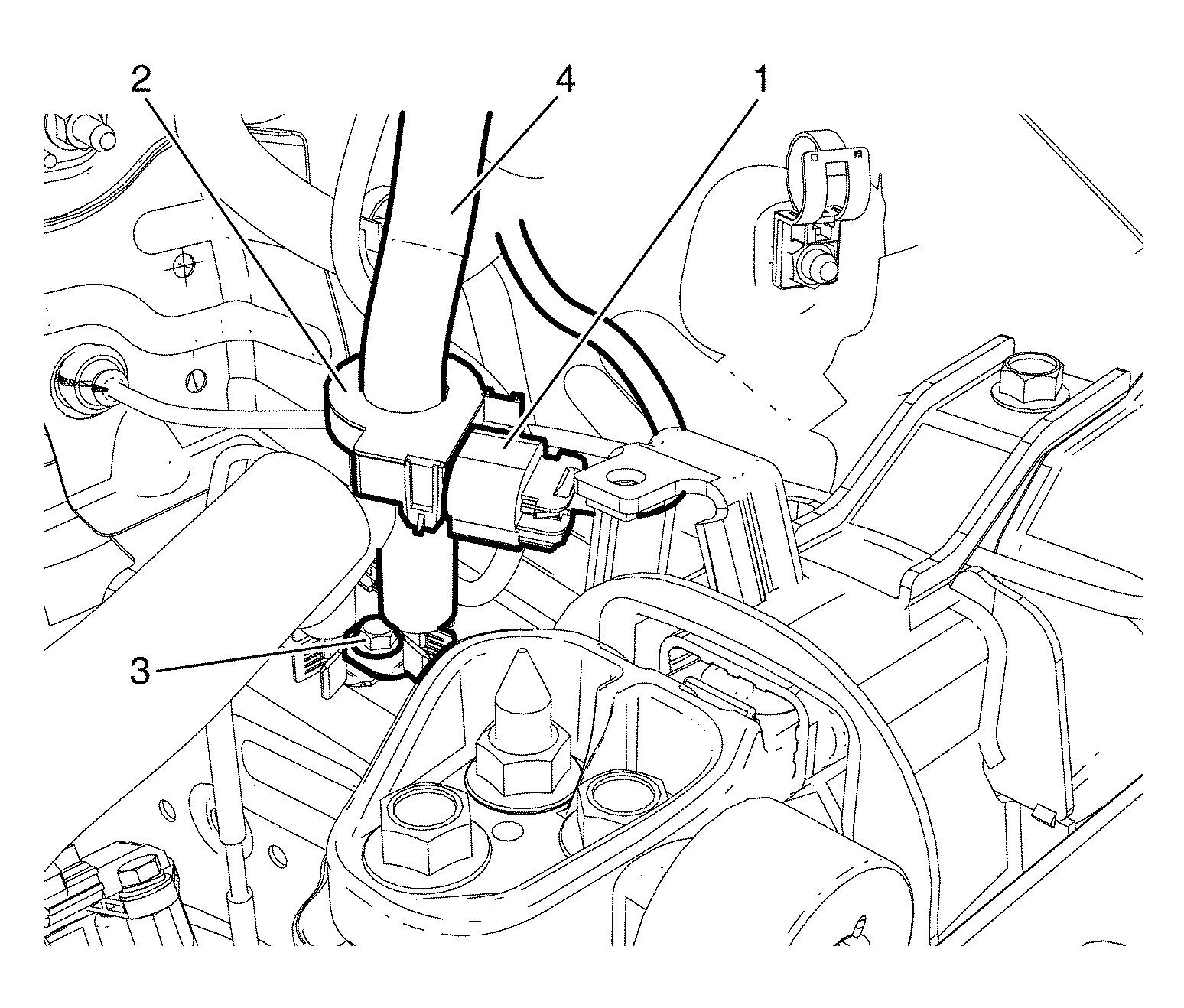

Fig 2: Body Harness Connector
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Connect the body harness connector (1) to the battery current sensor (2).
Install the battery tray. Refer to Battery Tray Replacement .
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Install the battery. Refer to Battery Replacement .
