Short Range Radar Sensor Replacement (Front)

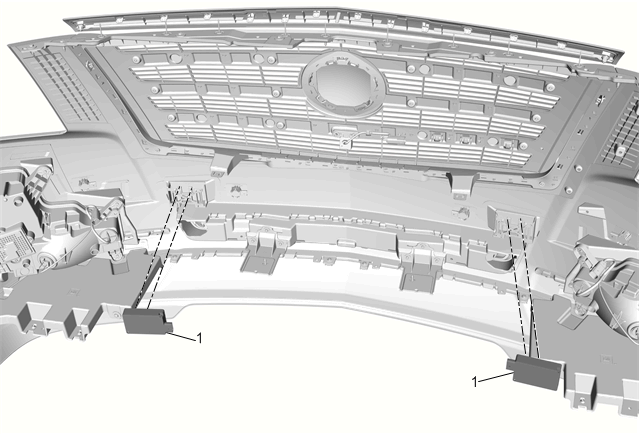

Fig 1: Short Range Radar Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC)Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Cadillac) .
1	Short Range Radar Sensor (Qty 2) Procedure Disconnect the electrical connector. Release the tab on the retainer and slide the sensor upward to remove. For programming and set up, refer to Control Module References .

Callout

Component Name

Short Range Radar Sensor (Qty 2)

Procedure
