Back of Instrument Panel Components (Z75)

Items
1: P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQ3)P19W Speaker - Right Instrument Panel (UQA/UQH/UQS)
2: T15 Navigation Antenna Signal Splitter (IO6 with UE1) T15 Navigation Antenna Signal Splitter X1 (IO6 with UE1)
3: P19B Speaker - Center Instrument Panel (UQH or UQS) P19B Speaker - Center Instrument Panel
4: P29 Head-Up Display (UV6) P29 Heads Up Display X2 (UV6)P29 Head-Up Display X1 (UV6)
5: P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQ3)P19J Speaker - Left Instrument Panel (UQA/UQH/UQS)
6: E1AA Floor Accent Lamp - Left Front E1AA Floor Accent Lamp - Left Front
7: T1 Accessory DC/AC Power Inverter Module (KI4 or KI5) T1 Accessory DC/AC Power Inverter Module
8: E1AB Floor Accent Lamp - Right Front E1AB Floor Accent Lamp - Right Front
9: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 K73 Telematics Communication Interface Control Module X2 K73 Telematics Communication Interface Control Module X5 (UE1 with CV3 or VV4)K73 Telematics Communication Interface Control Module X7 (UE1 with CV3)K73 Telematics Communication Interface Control Module X7 (UE1 with VV4 without CV3)
10: K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2

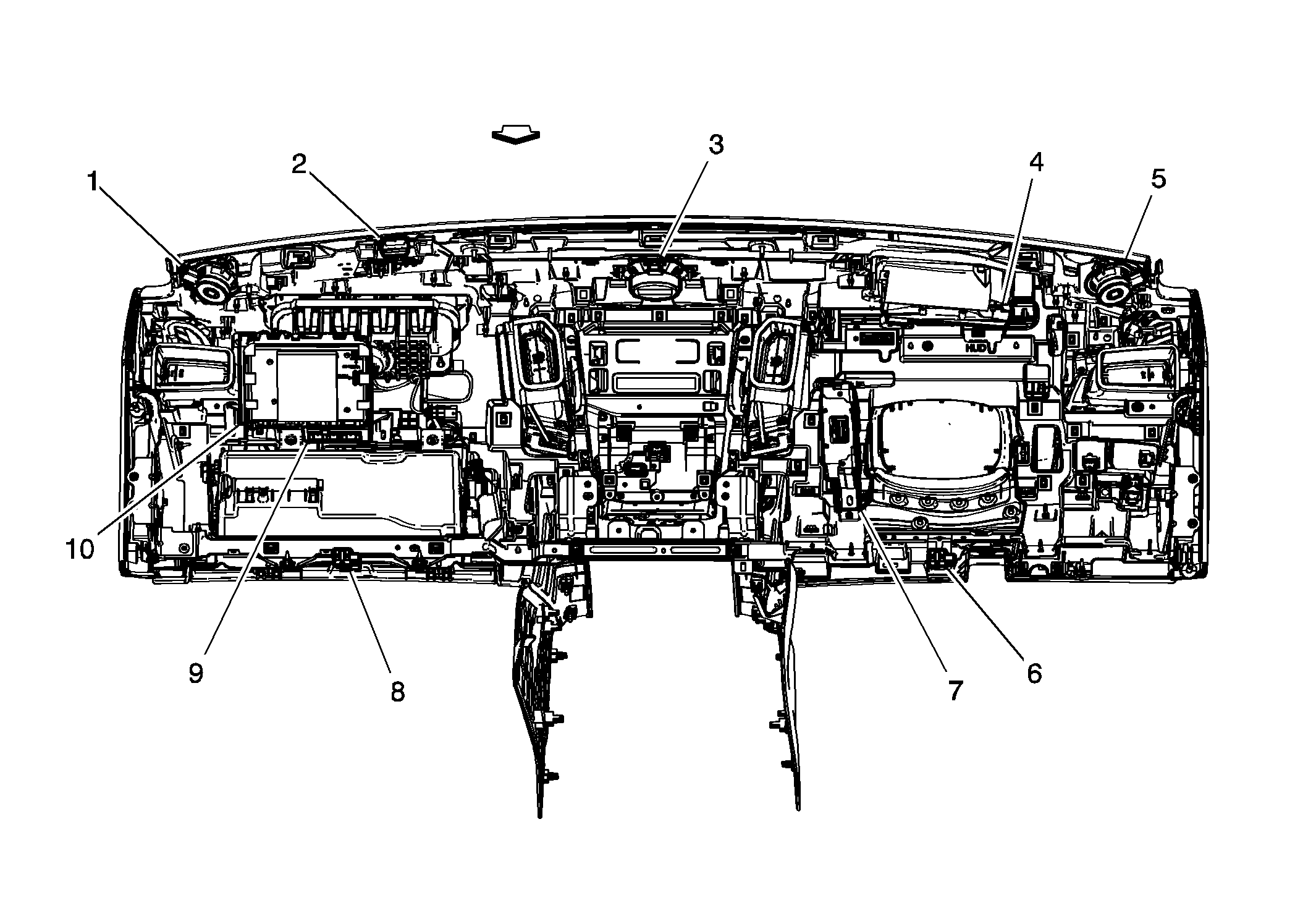

Fig 1: Back of Instrument Panel Components (Z75)

Courtesy of GENERAL MOTORS COMPANY
