Rear Vision Camera (UVC)

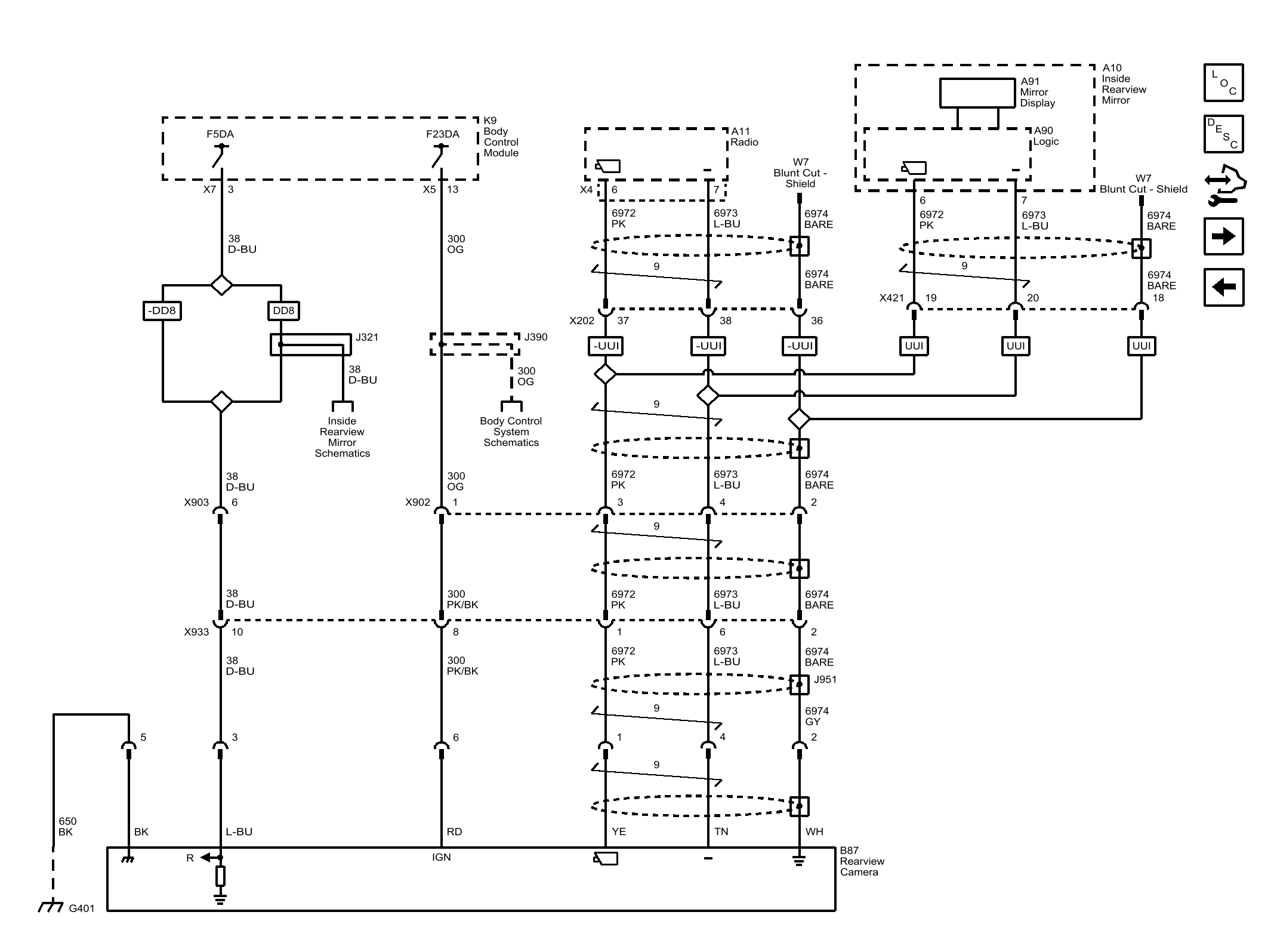

Fig 1: Rear Vision Camera (UVC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
