Removal Procedure

Open the liftgate.
WARNING: Refer to Cracked Window Warning .

NOTE: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement and Liftgate Lower Trim Finish Panel Replacement .
Remove the rear end spoiler. Refer to Rear End Spoiler Replacement .
Cover the following parts to protect from broken glass:
WARNING: Refer to Defroster Outlet Warning .
- Upper dash pad
- Defroster outlets and A/C outlets
- Seats and carpeting
Remove the window from the urethane adhesive.

Fig 1: Separating Urethane Adhesive From Window
Courtesy of GENERAL MOTORS COMPANY

WARNING: Refer to Glass and Sheet Metal Handling Warning .

NOTE: Keep the cutting edge of the tool against the window. Use care Not to damage the window corner retainers. If the window retainers get cut off when removing the window it will be necessary to tape the window in place until cured.
- Leave a base of urethane approximately 2 mm (0.078 in) on the pinch-weld flange.
- The only suitable lubrication is clear water.
- BO-24402-A Glass Sealant Remover (Cold Knife)
- BO-39032 Stationary Glass Removal Tool
If necessary, use a long utility knife or similar tool to remove the bottom corners of the window from the urethane adhesive.

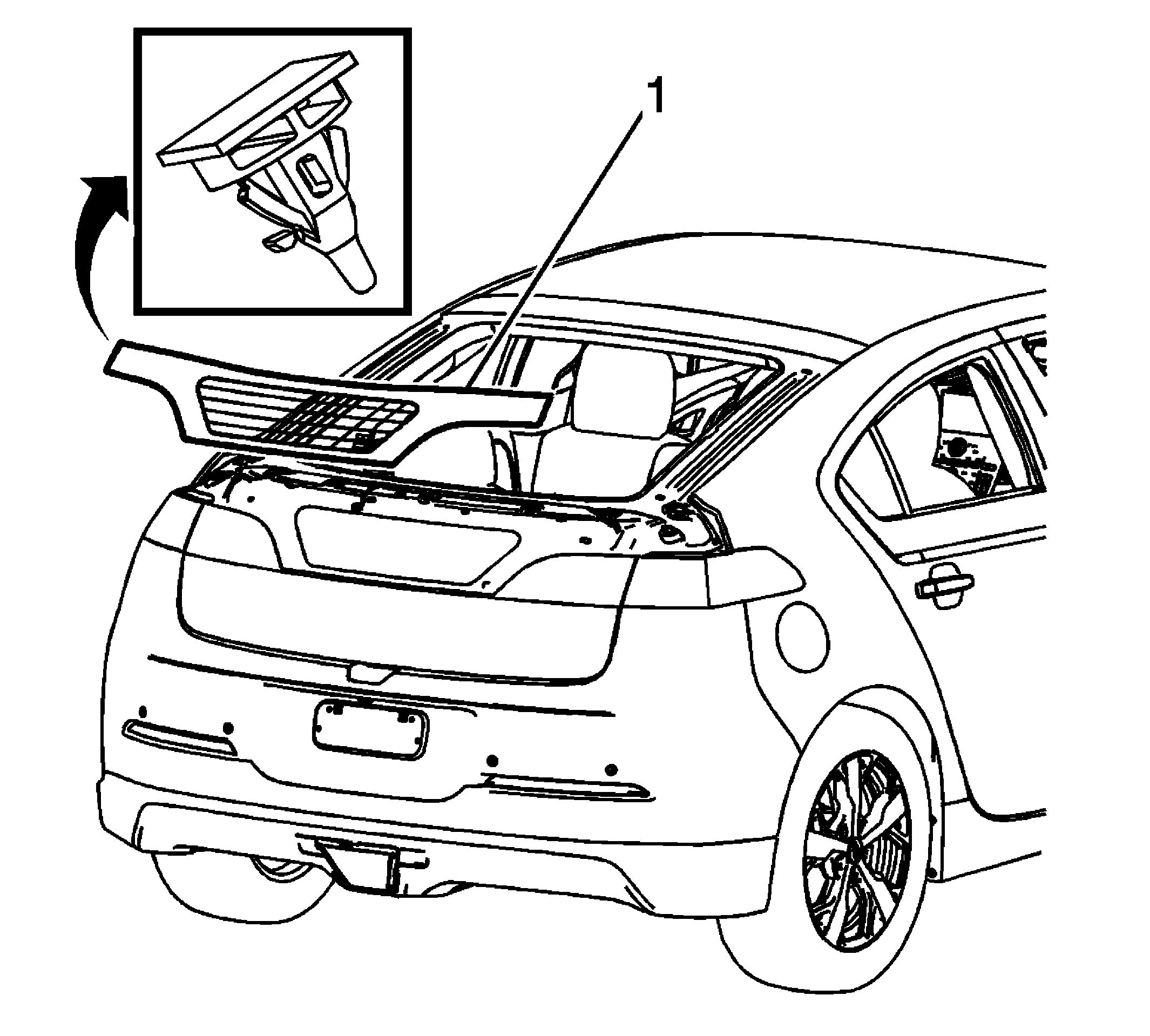

With an assistant, remove the window (1) from the vehicle, place the window on a clean soft surface.

Fig 2: Window - Liftgate
Courtesy of GENERAL MOTORS COMPANY
