Installation Procedure
- With the aid of an assistant, feed the battery positive cable extension cable (2) through the opening in the plenum and into the engine compartment area.

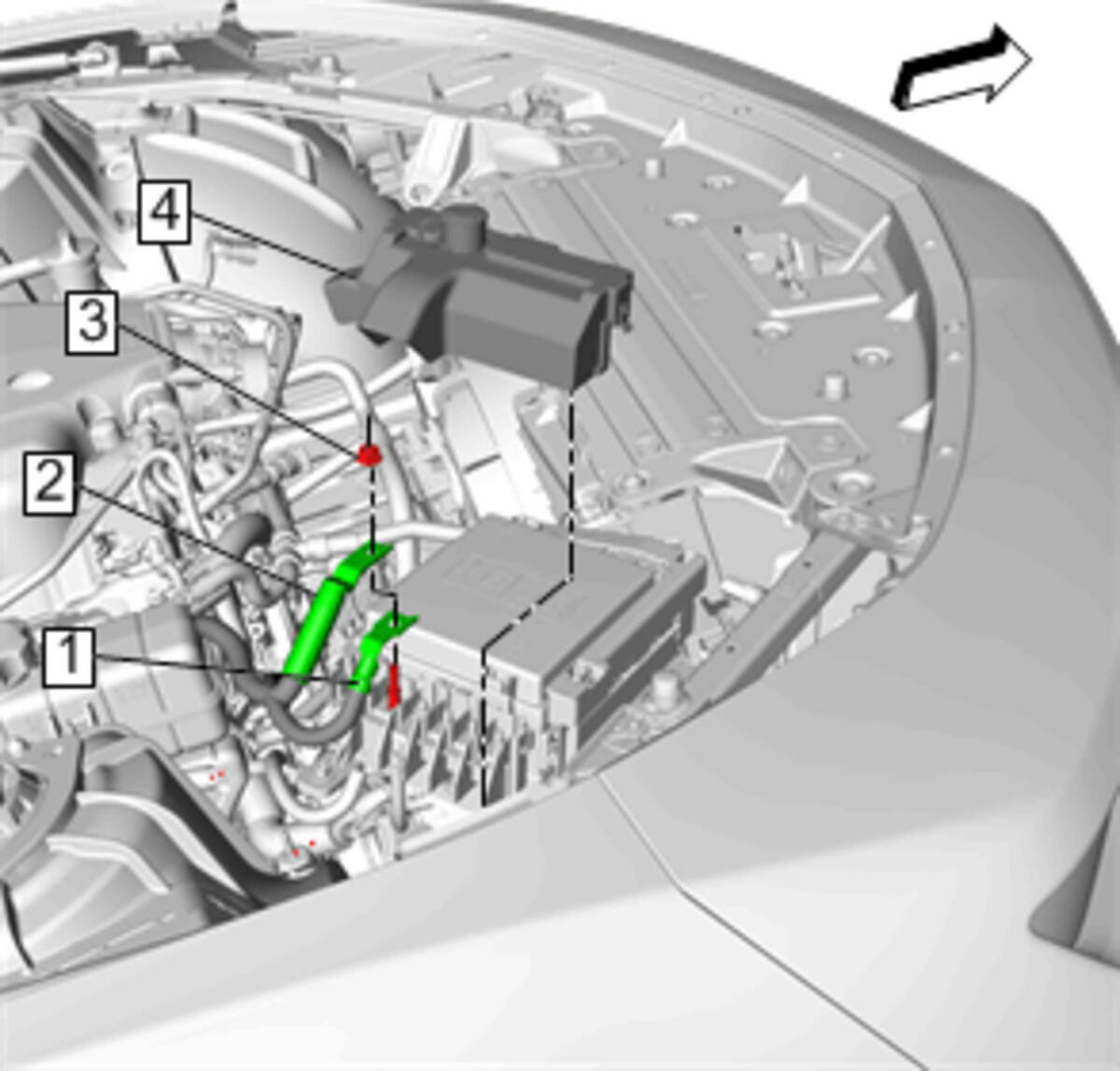

- Install the retainers (1)
- Install Battery Positive Cable Extension Cable (2)
- Install Battery Fuse Block Battery Positive Cable Nut (3) and tighten to 12 N.m (106 lb in)
- Install Power Distributor Fuse Block Cover (4)
- Install the retainers (1)
- Install the pass-through grommet (2)
- Reposition Front Floor Panel Carpet Replacement - Right Side
- Install the retainers (1)
- Reposition Rear Floor Panel Carpet Replacement
- Reposition Rear Seat Back Cushion Pad Replacement (Coupe)Rear Seat Back Cushion Pad Replacement (Convertible)
- Install Battery Positive Cable Extension Cable (5) at Rear Body Fuse Block (4)
- Install Battery Positive Cable Extension Cable Fastener (2) and tighten to 12 N.m (106 lb in)
- Install Rear Body Fuse Block Cover (3)
- Install the retainers (1)
- Install Quarter Lower Rear Trim Panel Replacement (Coupe)Quarter Lower Rear Trim Panel Replacement (Convertible)
- Install Rear Compartment Side Trim Replacement - Right Side (Coupe)Rear Compartment Side Trim Replacement - Right Side (Convertible)
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection .
CAUTION:
Refer to Fastener Caution
