Fuel Pump Power Control Module Replacement

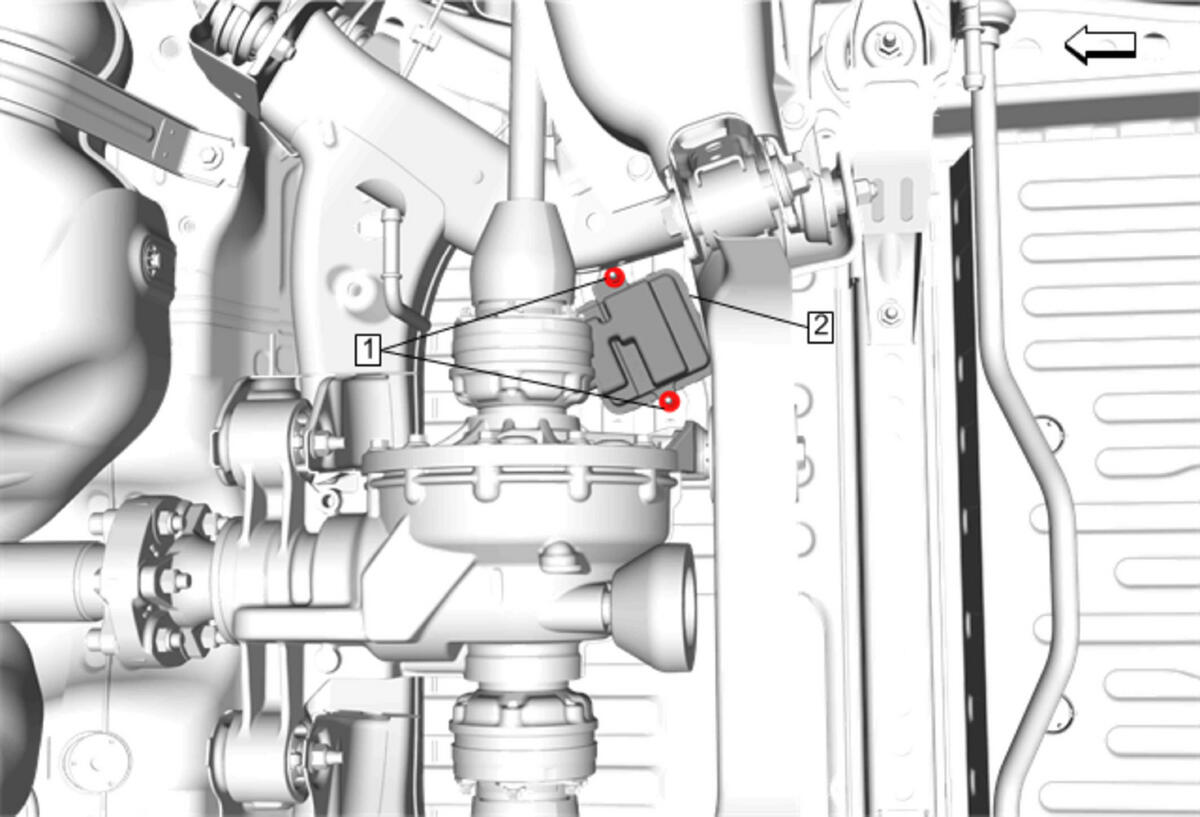

Fig 1: Fuel Pump Power Control Module
GM4174508Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle (Base)Lifting and Jacking the Vehicle (HP) .
1 Fuel Pump Power Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Control Module References
