Installation Procedure

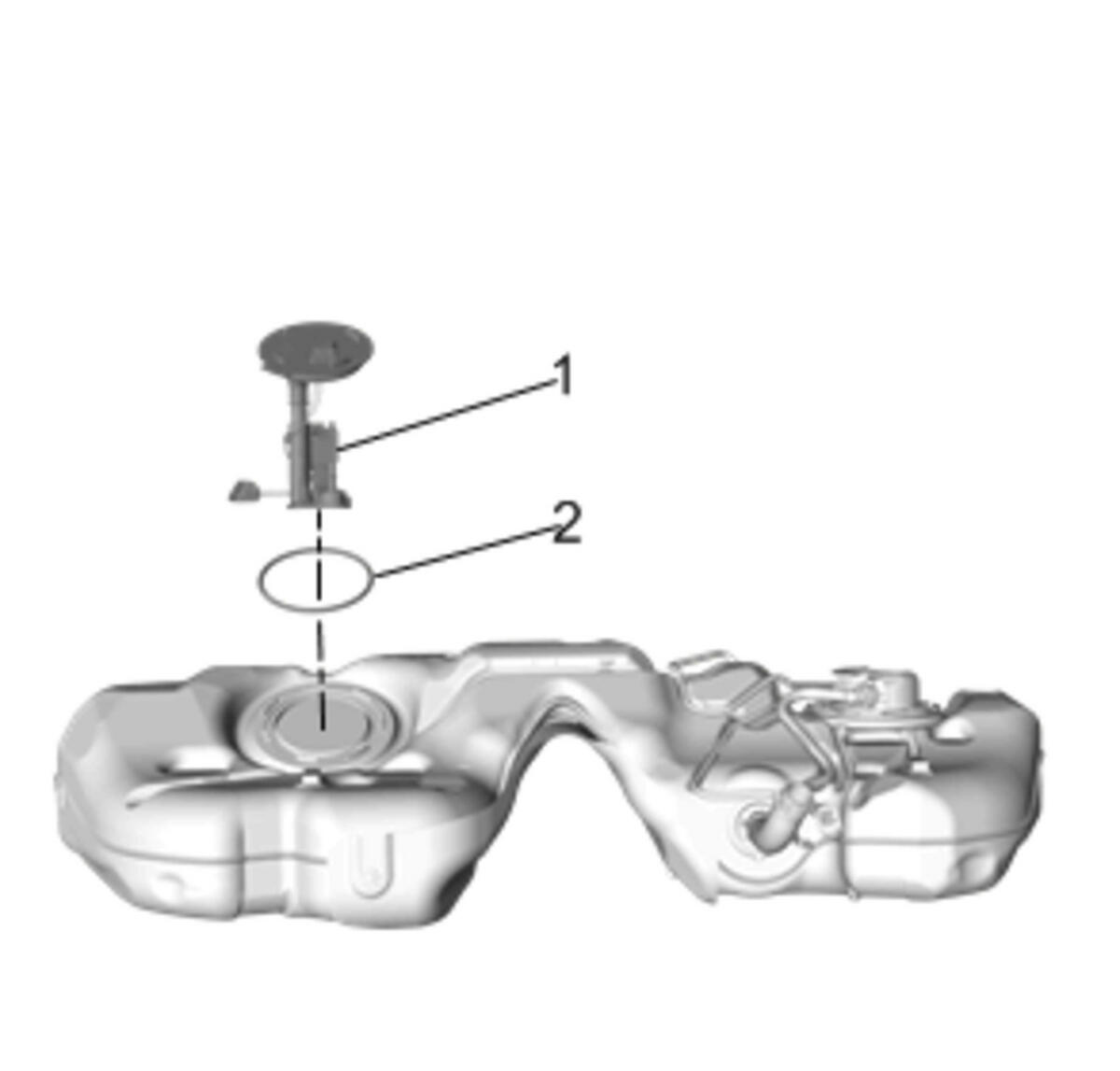

    Fig 1: Fuel Sender
    GM4179470Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW Fuel Pump Seal (2)
  2. Install Fuel Sender (1)

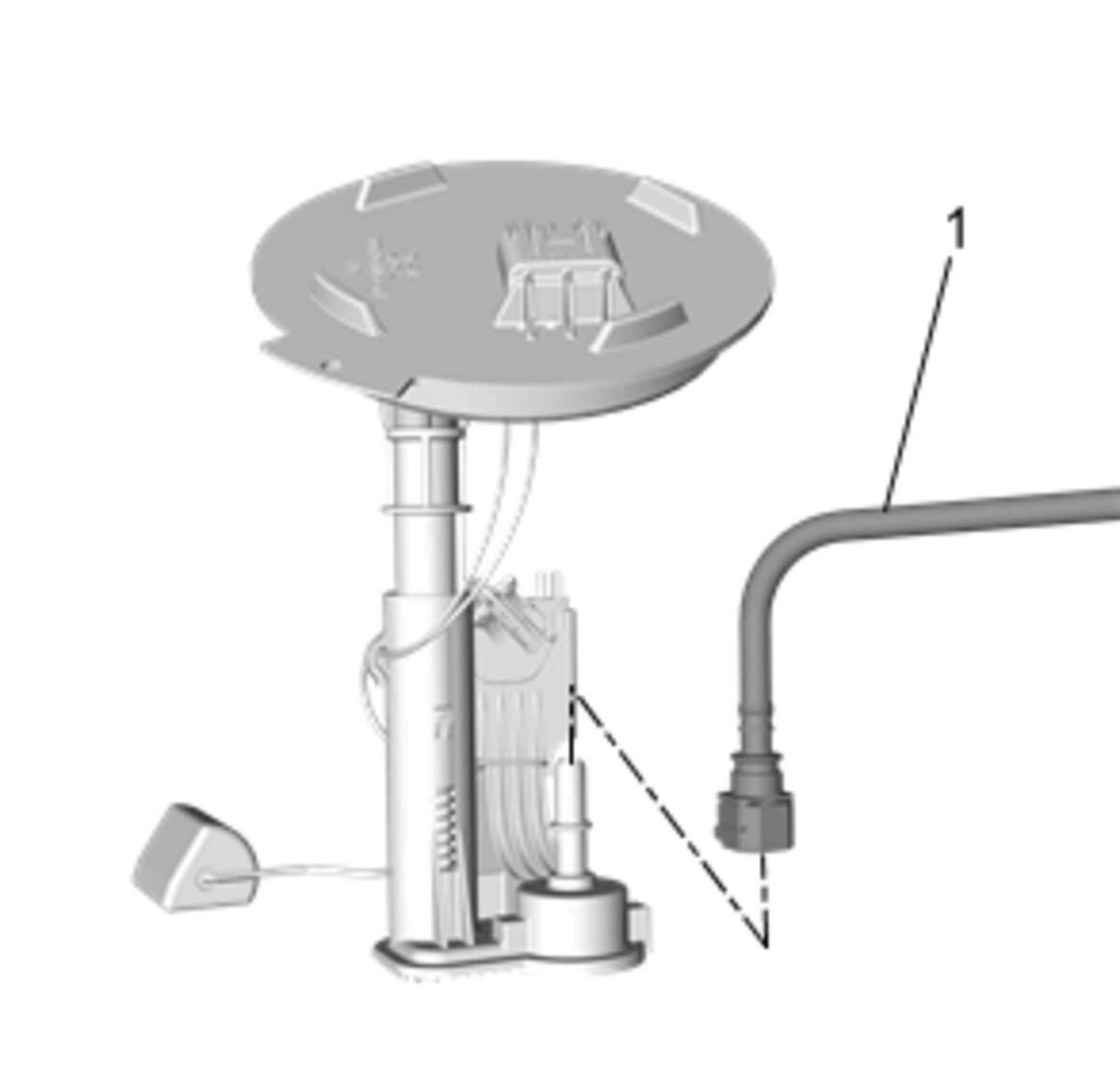

    3. Fig 2: Transfer Hose
    GM4179469Courtesy of GENERAL MOTORS COMPANY
  3. Connect Transfer Hose (1) - Plastic Collar Quick Connect Fitting Service
    4. Fig 3: Lock Ring
    GM4179466Courtesy of GENERAL MOTORS COMPANY
  4. Use the CH 45722  wrench by turning clockwise and install the lock ring (1)
  5. Connect the electrical connector.
  6. Install Fuel Tank Replacement
