Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

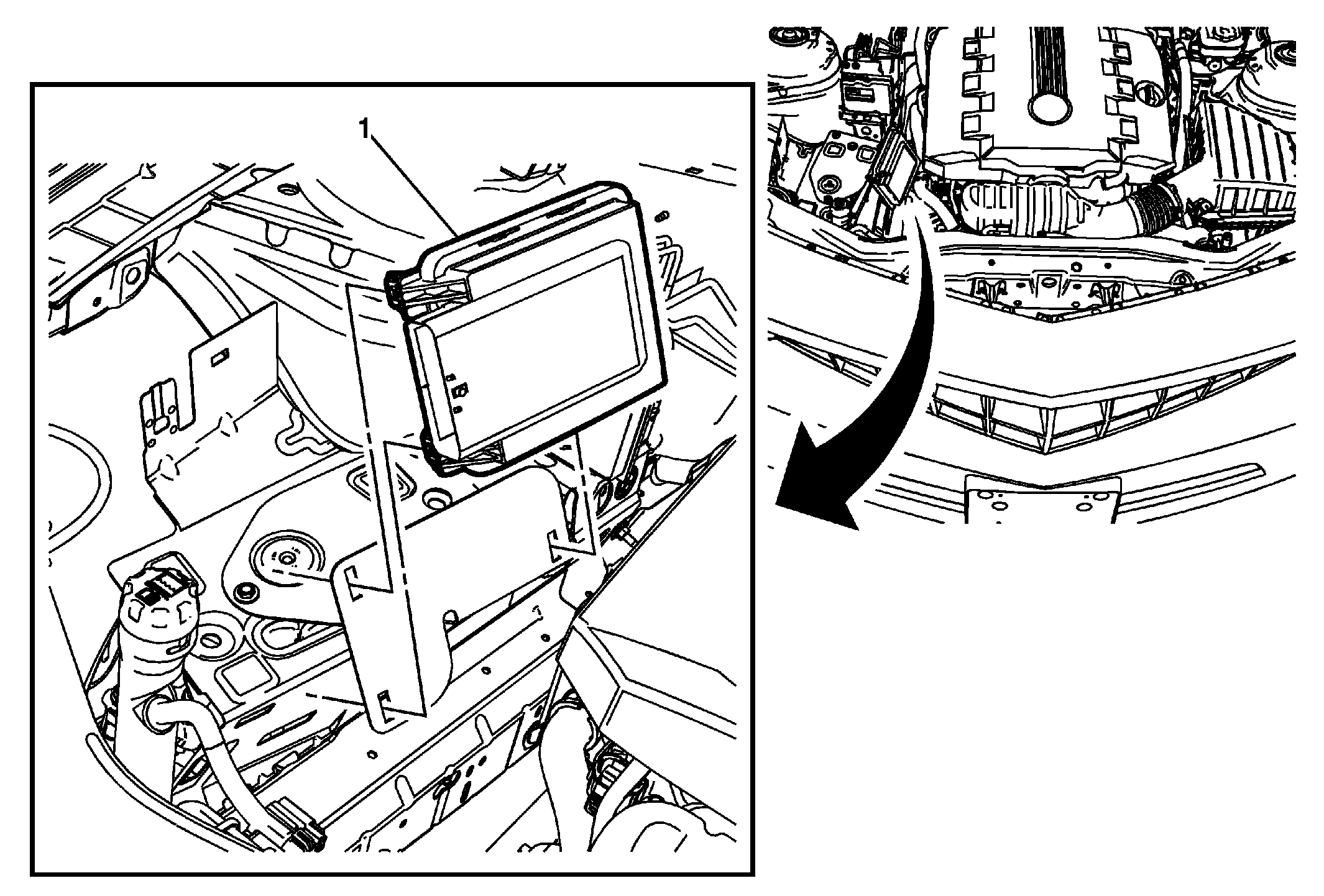

Fig 1: Headlamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Headlamp Control Module Procedure Disconnect the electrical connectors. Unsnap to release the module from the bracket. Refer to Control Module References for programming and set up procedures.
