Navigation Signal Splitter Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

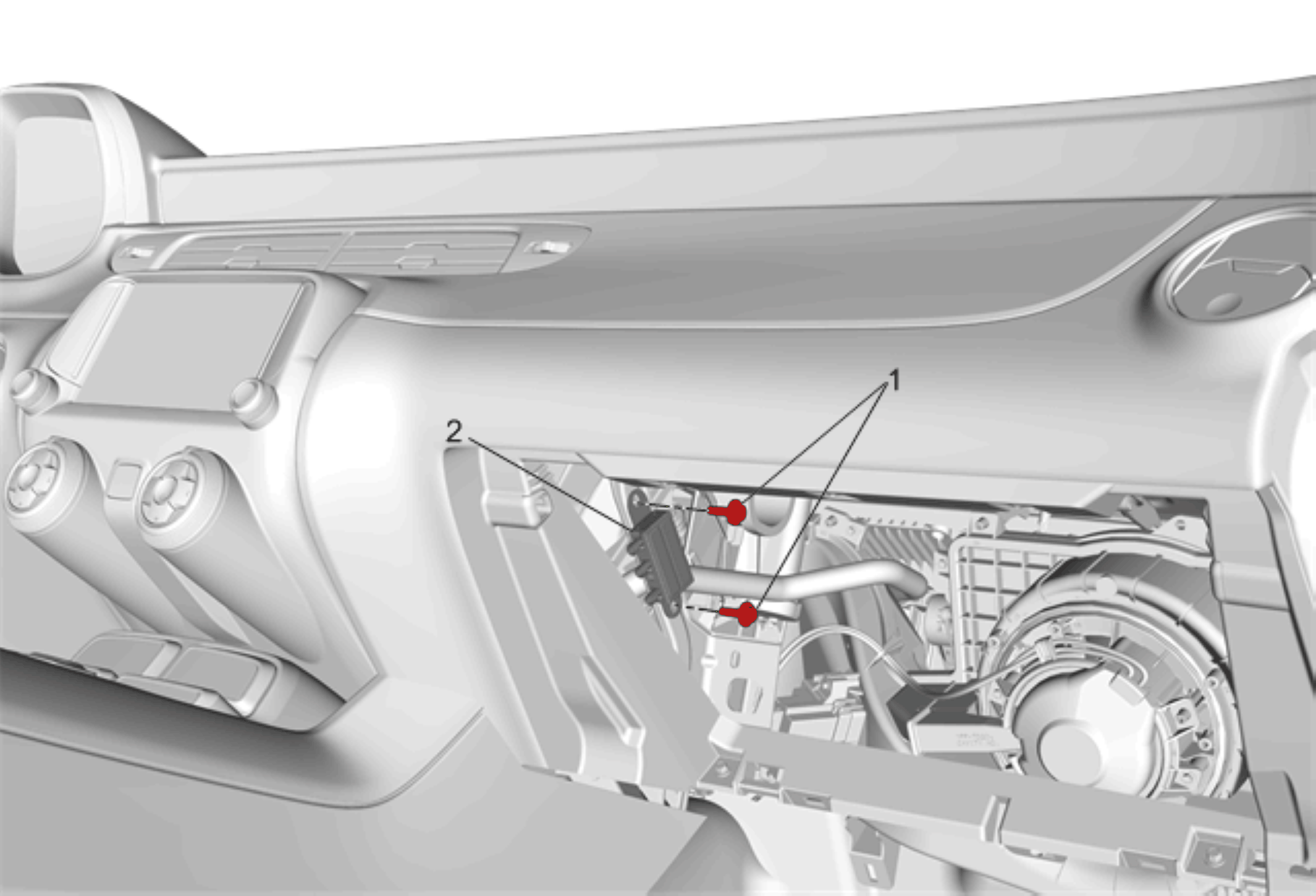

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . |
|
| 1 | Navigation Signal Splitter Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Navigation Signal Splitter Procedure Disconnect the electrical connectors. |
